9044-9513 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

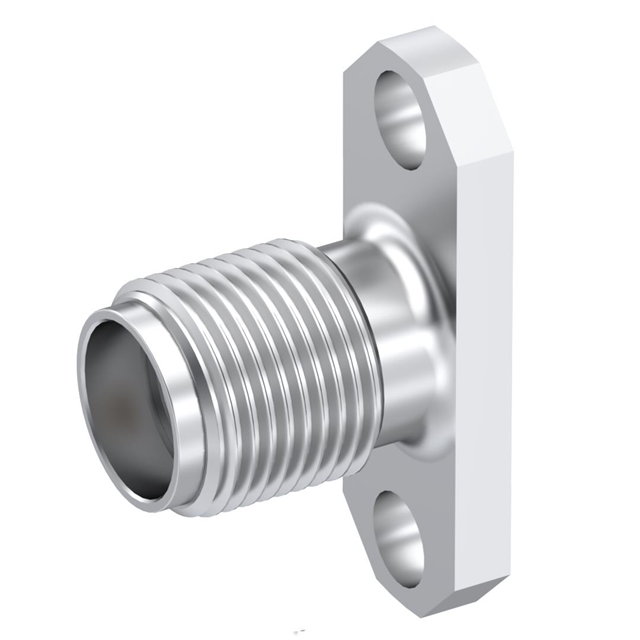

SMA / STRAIGHT JACK FEMALE PASSI
| Part | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Material | Voltage Rating | Dielectric Material | Connector Type | Connector Style | Mounting Type | Center Contact Material | Contact Termination | Fastening Type | Number of Ports | Mounting Feature | Shield Termination | Frequency - Max [Max] | Housing Color | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | -65 ░C | 165 °C | Gold | Stainless Steel | 335 V | Polytetrafluoroethylene (PTFE) | Female Socket Jack | SMA | Panel Mount | Beryllium Copper | Compression | Threaded | 1 | Flange | Screw | 26 GHz | Silver | 50 Ohms |
 Radiall USA, Inc. | 500 | -65 ░C | 165 °C | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | Female Socket Jack | SMA | Panel Mount | Beryllium Copper | Compression | Threaded | 1 | Flange | Screw | 18 GHz | Silver | 50 Ohms |
