FN258P Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LINE FILTER 250A CHASSIS MOUNT

Part	Current	Frequency - Operating	Configuration	Approval Agency	Termination Style	Applications	Mounting Type	Voltage - Rated AC (Phase to Phase)	Filter Type	Operating Temperature [Max]	Operating Temperature [Min]

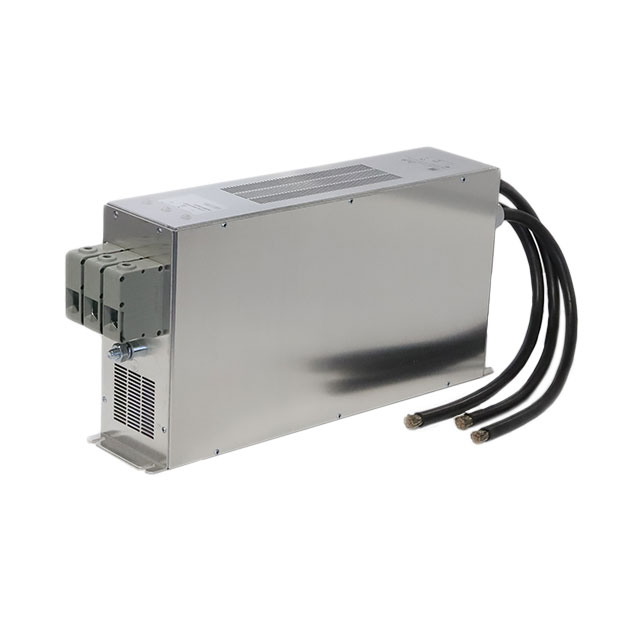

TE Connectivity AMP Connectors FN258P-250-07	250 A	60 Hz	Two Stage	CSA ENEC UR	Terminal Block	Inverters Power Drive Systems	Chassis Mount	480 V	Three Phase (Delta)	100 °C	-25 °C
TE Connectivity AMP Connectors FN258P-16-29	16 A	60 Hz	Two Stage	CSA ENEC UR	Terminal Block	Inverters Power Drive Systems	Chassis Mount	480 V	Three Phase (Delta)	100 °C	-25 °C
TE Connectivity AMP Connectors FN258P-7-29	7 A	60 Hz	Two Stage	CSA ENEC UR	Terminal Block	Inverters Power Drive Systems	Chassis Mount	480 V	Three Phase (Delta)	100 °C	-25 °C
TE Connectivity AMP Connectors FN258P-16-29	16 A	60 Hz	Two Stage	CSA ENEC UR	Terminal Block	Inverters Power Drive Systems	Chassis Mount	480 V	Three Phase (Delta)	100 °C	-25 °C
TE Connectivity AMP Connectors FN258P-42-07	42 A	60 Hz	Two Stage	CSA ENEC UR	Terminal Block	Inverters Power Drive Systems	Chassis Mount	480 V	Three Phase (Delta)	100 °C	-25 °C

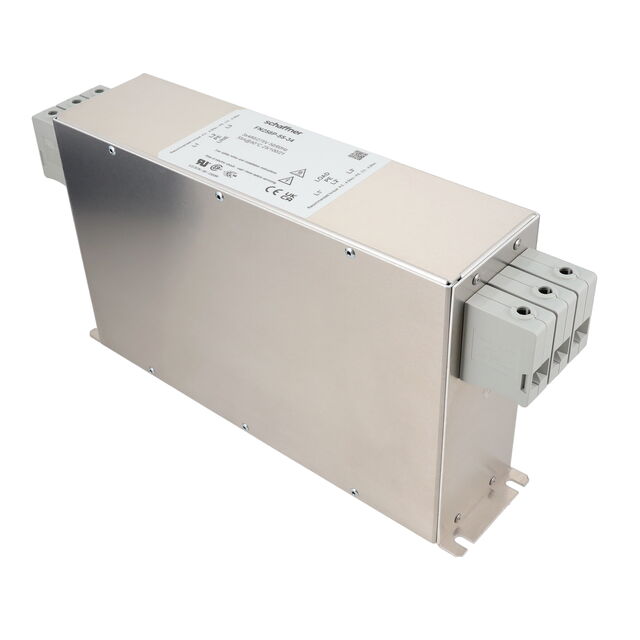

TE Connectivity AMP Connectors FN258P-55-34	55 A	60 Hz	Two Stage	CSA ENEC UR	Terminal Block	Inverters Power Drive Systems	Chassis Mount	480 V	Three Phase (Delta)	100 °C	-25 °C
TE Connectivity AMP Connectors FN258P-30-07	30 A	60 Hz	Two Stage	CSA ENEC UR	Terminal Block	Inverters Power Drive Systems	Chassis Mount	480 V	Three Phase (Delta)	100 °C	-25 °C
TE Connectivity AMP Connectors FN258P-42-33	42 A	60 Hz	Two Stage	CSA ENEC UR	Terminal Block	Inverters Power Drive Systems	Chassis Mount	480 V	Three Phase (Delta)	100 °C	-25 °C

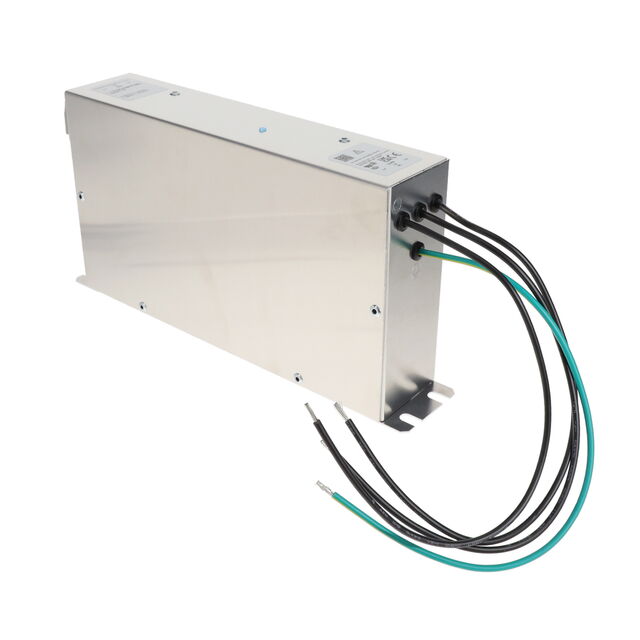

TE Connectivity AMP Connectors FN258P-7-07	7 A	60 Hz	Two Stage	CSA ENEC UR	Terminal Block	Inverters Power Drive Systems	Chassis Mount	480 V	Three Phase (Delta)	100 °C	-25 °C
TE Connectivity AMP Connectors FN258P-7-29	7 A	60 Hz	Two Stage	CSA ENEC UR	Terminal Block	Inverters Power Drive Systems	Chassis Mount	480 V	Three Phase (Delta)	100 °C	-25 °C
