745-078 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 78POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Card Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Gender	Contact Material	Mounting Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Pitch	Pitch	Color	Card Thickness [Max]	Card Thickness [Min]	Read Out	Contact Type	Contact Finish	Number of Positions/Bay/Row
EDAC Inc. 745-078-522-201	2	Polyester Thermoplastic	Non Specified - Dual Edge	30 Áin	0.76 Ám	2	Female	Copper Alloy	Through Hole	78	-40 C	105 ░C	Press-Fit	0.1 "	2.54 mm	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Cantilever	Gold	39
EDAC Inc. 745-078-525-201	2	Polyester Thermoplastic	Non Specified - Dual Edge	30 Áin	0.76 Ám	2	Female	Copper Alloy	Through Hole	78	-40 C	105 ░C	Press-Fit	0.1 "	2.54 mm	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Cantilever	Gold	39

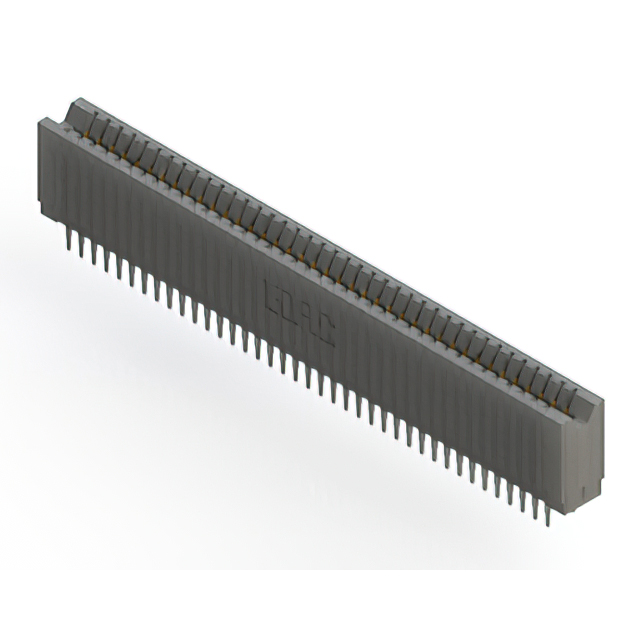

EDAC Inc. 745-078-560-206	2	Polyester Thermoplastic	Non Specified - Dual Edge	30 Áin	0.76 Ám	2	Female	Copper Alloy	Through Hole	78	-40 C	105 ░C	Press-Fit	0.1 "	2.54 mm	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Cantilever Make Before Break	Gold	39
EDAC Inc. 745-078-520-201	2	Polyester Thermoplastic	Non Specified - Dual Edge	30 Áin	0.76 Ám	2	Female	Copper Alloy	Through Hole	78	-40 C	105 ░C	Press-Fit	0.1 "	2.54 mm	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Cantilever	Gold	39

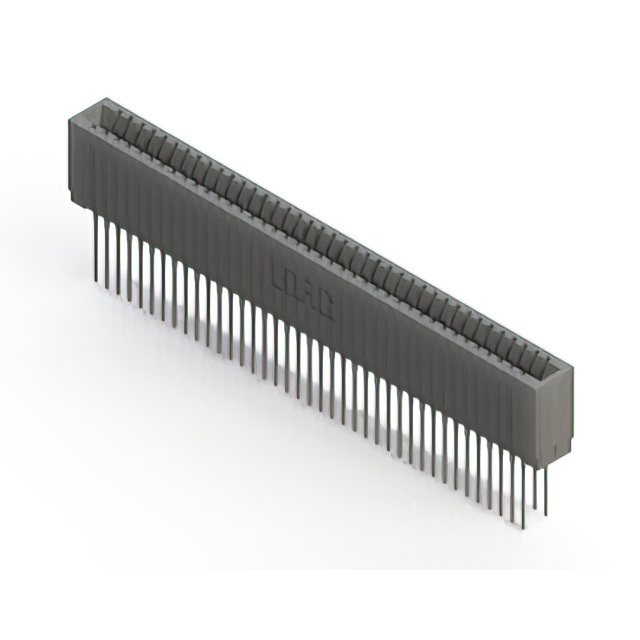

EDAC Inc. 745-078-540-201	2	Polyester Thermoplastic	Non Specified - Dual Edge	30 Áin	0.76 Ám	2	Female	Copper Alloy	Through Hole	78	-40 C	105 ░C	Press-Fit Wire Wrap	0.1 "	2.54 mm	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Cantilever	Gold	39
