YB15CK Series

Catalog

SWITCH PUSHBUTTON SPDT 3A 125V

Part	Mechanical Life	Electrical Life	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Color - Actuator/Cap	Mounting Type	Type	Illumination Type, Color	Termination Style	Voltage Rating - AC	Illumination Voltage (Nominal)	Switch Function	Voltage Rating - DC	Features	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Actuator Type

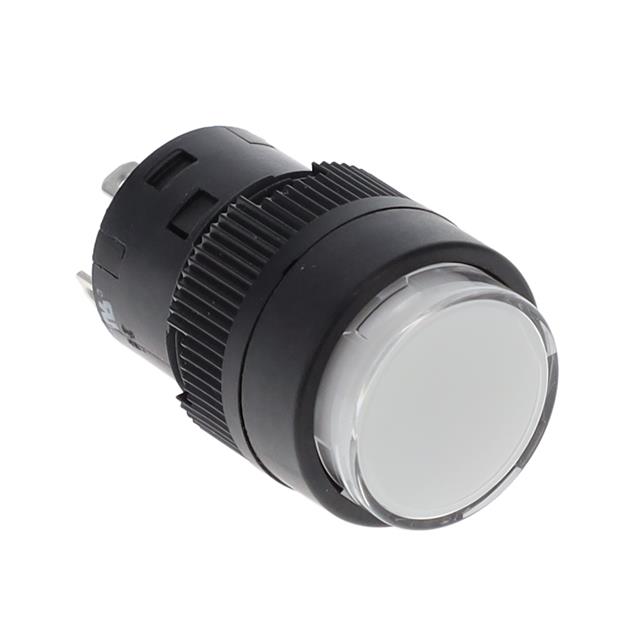

NKK Switches YB15CKW01-2CF24-JB	1000000 Cycles	100000 Cycles	No Marking	50 °C	-25 °C	SPDT	Clear	Panel Mount Front	Illuminated Standard	Green/Red LED	Solder Quick Connect - 0.110" (2.8mm)	125 V	24 V	On-Mom	30 V	Stainless Steel	3 A	16 mm	Button Round

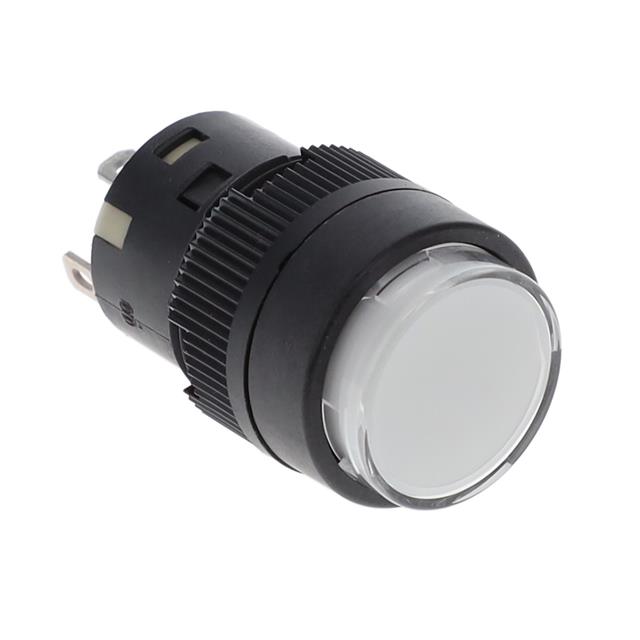

NKK Switches YB15CKG01-JB	1000000 Cycles	100000 Cycles	No Marking	70 °C	-25 °C	SPDT	Clear	Panel Mount Front	Standard		Solder Quick Connect - 0.110" (2.8mm)	28 V		On-Mom	28 V	Stainless Steel	0.4 VA	16 mm	Button Round
NKK Switches YB15CKG01-5C12-JB	1000000 Cycles	100000 Cycles		50 °C	-25 °C	SPDT	Clear	Panel Mount Front	Illuminated Standard	LED Red	Solder Quick Connect - 0.110" (2.8mm)	28 V	12 VDC	On-Mom	28 V		0.4 VA	16 mm	Button Round
NKK Switches YB15CKW01-5D-JB	1000000 Cycles	100000 Cycles	No Marking	50 °C	-25 °C	SPDT	Clear	Panel Mount Front	Illuminated Standard	Amber LED	Solder Quick Connect - 0.110" (2.8mm)	125 V	2 VDC	On-Mom	30 V	Stainless Steel	3 A	16 mm	Button Round
NKK Switches YB15CKW03-6F-JB	1000000 Cycles	100000 Cycles	No Marking	50 °C	-25 °C	SPDT	Clear	Panel Mount Front	Illuminated Standard	Green LED	PC Pin	125 V	3.3 VDC	On-Mom	30 V	Stainless Steel	3 A	16 mm	Button Round
NKK Switches YB15CKG01-5F24-JF	1000000 Cycles	100000 Cycles	No Marking	50 °C	-25 °C	SPDT	Clear	Panel Mount Front	Illuminated Standard	Green LED	Solder Quick Connect - 0.110" (2.8mm)	28 V	24 V	On-Mom	28 V	Stainless Steel	0.4 VA	16 mm	Button Round
NKK Switches YB15CKW01-1D05-JB	1000000 Cycles	100000 Cycles	No Marking	50 °C	-25 °C	SPDT	Clear	Panel Mount Front	Illuminated Standard	Amber LED	Solder Quick Connect - 0.110" (2.8mm)	125 V	5 VDC	On-Mom	30 V	Stainless Steel	3 A	16 mm	Button Round

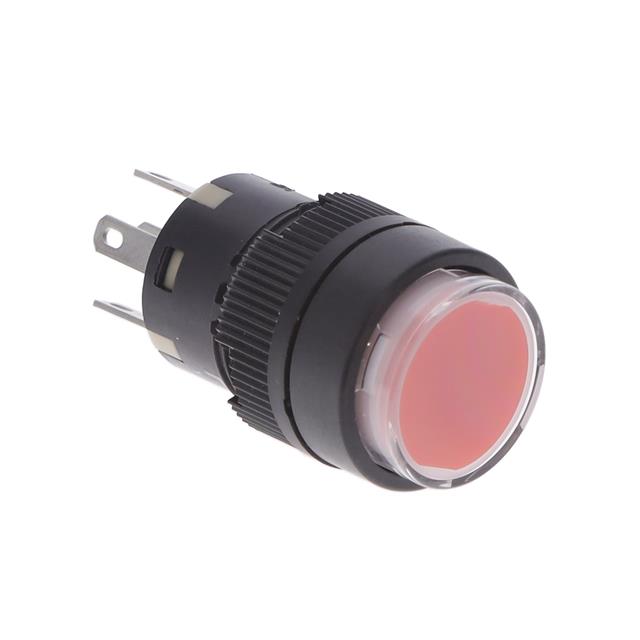

NKK Switches YB15CKG01-5C12-JC	1000000 Cycles	100000 Cycles	No Marking	50 °C	-25 °C	SPDT	Clear	Panel Mount Front	Illuminated Standard	LED Red	Solder Quick Connect - 0.110" (2.8mm)	28 V	12 VDC	On-Mom	28 V	Stainless Steel	0.4 VA	16 mm	Button Round
NKK Switches YB15CKG01-1F02-JE	1000000 Cycles	100000 Cycles	No Marking	50 °C	-25 °C	SPDT	Clear	Panel Mount Front	Illuminated Standard	Green LED	Solder Quick Connect - 0.110" (2.8mm)	28 V	2 VDC	On-Mom	28 V	Stainless Steel	0.4 VA	16 mm	Button Round
NKK Switches YB15CKG01-5C-JB	1000000 Cycles	100000 Cycles		50 °C	-25 °C	SPDT	Clear	Panel Mount Front	Illuminated Standard	LED Red	Solder Quick Connect - 0.110" (2.8mm)	28 V	1.9 VDC	On-Mom	28 V		0.4 VA	16 mm	Button Round
