9259 Series

Catalog

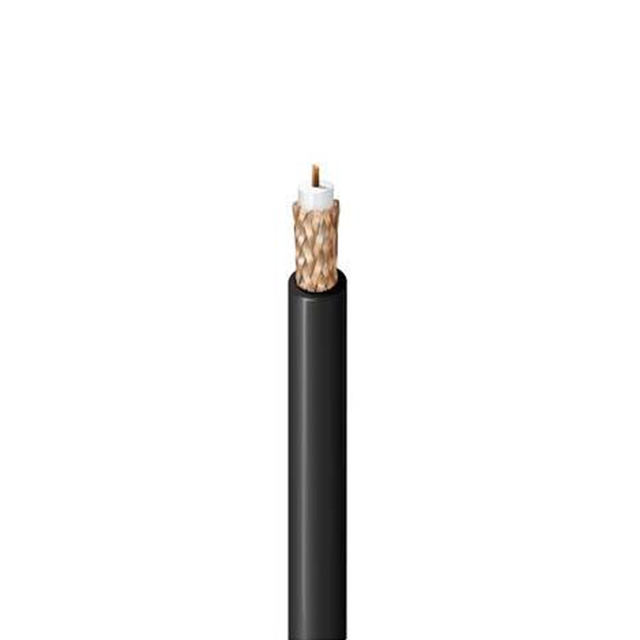

#22 PE RG 59/U TYPE

Part	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Material	Conductor Material	Shield Coverage	VoP, Velocity of Propagation	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Usage	Impedance	Shield Type	Jacket (Insulation) Material	Cable Type	Wire Gauge	Cable Group	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Strand	Dielectric Material	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Length	Length
Belden Inc. 9259 0101000	3.71 mm	0.146 in	Copper Bare	Copper Bare	95 %	78	80 °C	-40 C	304.8 m	1000 ft	Video	75 Ohms	Braid	Poly-Vinyl Chloride (PVC)	Coaxial	22 AWG	RG-59	0.24 "	6.1 mm	Black	7 Strands 30 AWG
Belden Inc. 9259 0105000	3.71 mm	0.146 in	Copper Bare	Copper Bare	95 %	78	80 °C	-40 C			Video	75 Ohms	Braid	Poly-Vinyl Chloride (PVC)	Coaxial	22 AWG	RG-59	0.24 "	6.1 mm	Black	7 Strands 30 AWG
Belden Inc. 9259 010U1000	3.71 mm	0.146 in	Copper Bare	Copper Bare	95 %	78	80 °C	-40 C	304.8 m	1000 ft	Video	75 Ohms	Braid	Poly-Vinyl Chloride (PVC)	Coaxial	22 AWG	RG-59	0.24 "	6.1 mm	Black	7 Strands 30 AWG
Belden Inc. 9259 010500	3.71 mm	0.146 in	Copper Bare	Copper Bare	95 %	78	80 °C	-40 C	152.4 m	500 ft	CCTV	75 Ohms	Braid	Poly-Vinyl Chloride (PVC)	Coaxial	22 AWG	RG-59			Black	7 Strands 30 AWG	Foam Polyethylene (FPE)	0.241 in	6.12 mm
Belden Inc. 9259 010U500	3.71 mm	0.146 in	Copper Bare	Copper Bare	95 %	78	80 °C	-40 C	152.4 m	500 ft	Video	75 Ohms	Braid	Poly-Vinyl Chloride (PVC)	Coaxial	22 AWG	RG-59	0.24 "	6.1 mm	Black	7 Strands 30 AWG
Belden Inc. 9259 010100	3.71 mm	0.146 in	Copper Bare	Copper Bare	95 %	78	80 °C	-40 C			Video	75 Ohms	Braid	Poly-Vinyl Chloride (PVC)	Coaxial	22 AWG	RG-59	0.24 "	6.1 mm	Black	7 Strands 30 AWG				100 '	30.48 m
