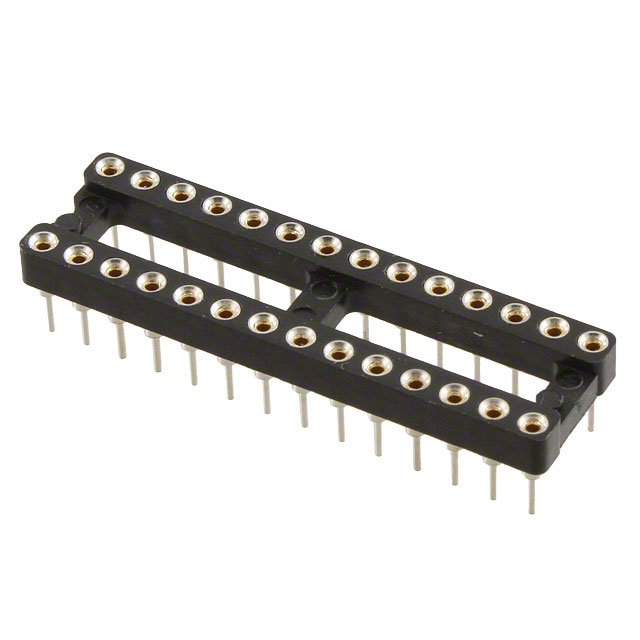

110-41 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

CONN IC DIP SOCKET 24POS GOLD

...

Part	Termination Post Length	Termination Post Length	Mounting Type	Contact Material - Post	Pitch - Post	Pitch - Post	Type	Type	Type	Features	Housing Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Finish - Mating	Contact Material - Mating	Termination	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Resistance	Material Flammability Rating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Type [custom]	Type [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]

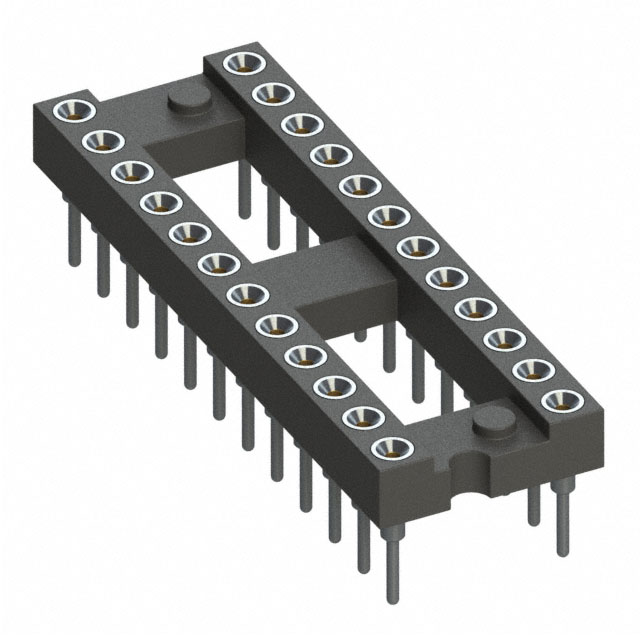

Mill-Max Manufacturing Corp. 110-41-324-41-001000	0.125 in	3.18 mm	Through Hole	Brass Alloy	0.1 in	2.54 mm	7.62 mm	0.3 in	DIP	Open Frame	Thermoplastic	0.25 µm	10 µin	0.1 "	2.54 mm	Tin	Gold	Beryllium Copper	Solder	12	2	24	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 110-41-424-41-105000	0.125 in	3.18 mm	Surface Mount	Brass Alloy	0.1 in	2.54 mm		0.4 in	DIP	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	0.1 "	2.54 mm	Tin	Gold	Beryllium Copper	Solder	12	2	24	200 µin	5.08 µm	10 mOhm	UL94 V-0	3 A	-55 C	125 °C
Mill-Max Manufacturing Corp. 110-41-322-41-105000	0.125 in	3.18 mm	Surface Mount	Brass Alloy	0.1 in	2.54 mm	7.62 mm	0.3 in	DIP	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	0.1 "	2.54 mm	Tin	Gold	Beryllium Copper	Solder	2	11	22	200 µin	5.08 µm	10 mOhm	UL94 V-0	3 A	-55 C	125 °C
Mill-Max Manufacturing Corp. 110-41-632-41-605000	0.125 in	3.18 mm	Through Hole	Brass Alloy	0.1 in	2.54 mm			DIP	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	0.1 "	2.54 mm	Tin	Gold	Beryllium Copper	Solder			32	200 µin	5.08 µm	10 mOhm	UL94 V-0	3 A	-55 C	125 °C	15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 110-41-950-41-001000	0.125 in	3.18 mm	Through Hole	Brass Alloy	0.1 in	2.54 mm	22.86 mm	0.9 in	DIP	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	0.1 "	2.54 mm	Tin	Gold	Beryllium Copper	Solder	2	25		200 µin	5.08 µm	10 mOhm	UL94 V-0	3 A	-55 C	125 °C			50
Mill-Max Manufacturing Corp. 110-41-650-41-105000	0.125 in	3.18 mm	Surface Mount	Brass Alloy	0.1 in	2.54 mm			DIP	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	0.1 "	2.54 mm	Tin	Gold	Beryllium Copper	Solder	2	25		200 µin	5.08 µm	10 mOhm	UL94 V-0	3 A	-55 C	125 °C	15.24 mm	0.6 in	50

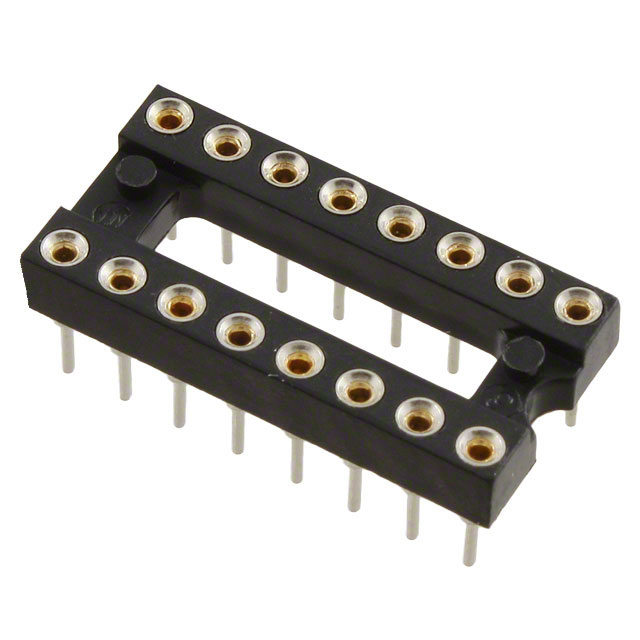

Mill-Max Manufacturing Corp. 110-41-316-41-001000	0.125 in	3.18 mm	Through Hole	Brass Alloy	0.1 in	2.54 mm	7.62 mm	0.3 in	DIP	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	0.1 "	2.54 mm	Tin	Gold	Beryllium Copper	Solder			16	200 µin	5.08 µm			3 A	-55 C	125 °C				2	8
Mill-Max Manufacturing Corp. 110-41-642-61-001000	0.125 in	3.18 mm	Through Hole	Brass Alloy	0.1 in	2.54 mm			DIP		Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	0.1 "	2.54 mm	Tin	Gold	Beryllium Copper	Solder			42	200 µin	5.08 µm	10 mOhm	UL94 V-0	3 A	-55 C	125 °C	15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 110-41-964-41-105000	0.125 in	3.18 mm	Surface Mount	Brass Alloy	0.1 in	2.54 mm	22.86 mm	0.9 in	DIP	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	0.1 "	2.54 mm	Tin	Gold	Beryllium Copper	Solder	2	32	64	200 µin	5.08 µm	10 mOhm	UL94 V-0	3 A	-55 C	125 °C
Mill-Max Manufacturing Corp. 110-41-624-61-001000	0.125 in	3.18 mm	Through Hole	Brass Alloy	0.1 in	2.54 mm			DIP		Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	0.1 "	2.54 mm	Tin	Gold	Beryllium Copper	Solder	12	2	24	200 µin	5.08 µm	10 mOhm	UL94 V-0	3 A	-55 C	125 °C	15.24 mm	0.6 in
