726-022 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 22POS 0.125
| Part | Material - Insulation | Termination Rows [custom] | Gender | Pitch | Pitch | Card Type | Number of Positions | Number of Positions/Bay/Row | Color | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Read Out | Termination | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Number of Rows [custom] | Mounting Type | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

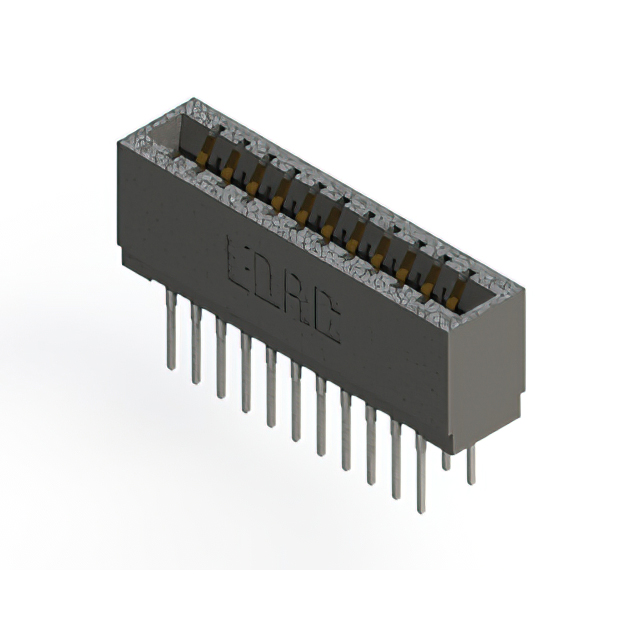

 EDAC Inc. | Polyester Thermoplastic | 2 | Female | 3.18 mm | 0.125 in | Non Specified - Dual Edge | 22 | 11 | Black | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Press-Fit | Cantilever | 30 Áin | 0.76 Ám | -40 C | 105 ░C | Gold | 2 | Through Hole | ||

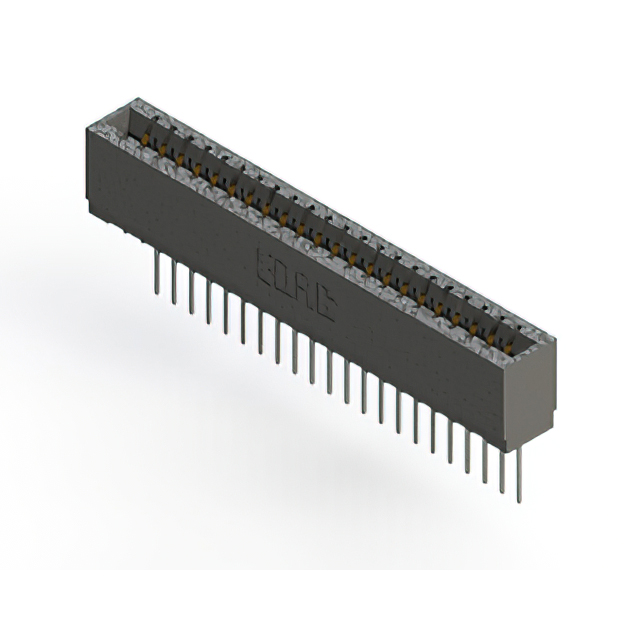

 EDAC Inc. | Polyester Thermoplastic | Female | 3.18 mm | 0.125 in | Non Specified - Single Edge | 22 | 22 | Black | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Press-Fit Wire Wrap | Cantilever | 30 Áin | 0.76 Ám | -40 C | 105 ░C | Gold | Through Hole | 1 | 1 | ||

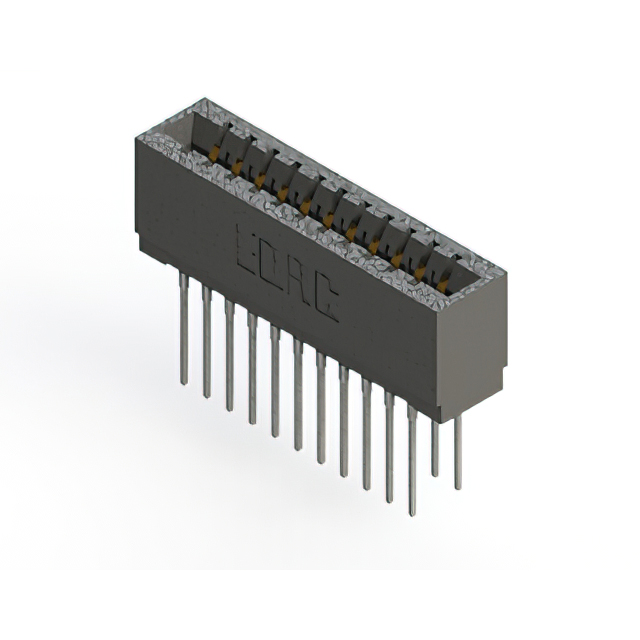

 EDAC Inc. | Polyester Thermoplastic | 2 | Female | 3.18 mm | 0.125 in | Non Specified - Dual Edge | 22 | 11 | Black | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Press-Fit Wire Wrap | Cantilever | 30 Áin | 0.76 Ám | -40 C | 105 ░C | Gold | 2 | Through Hole | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | 3.18 mm | 0.125 in | Non Specified - Dual Edge | 22 | 11 | Black | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Press-Fit Wire Wrap | Cantilever | 30 Áin | 0.76 Ám | -40 C | 105 ░C | Gold | 2 | Through Hole | ||

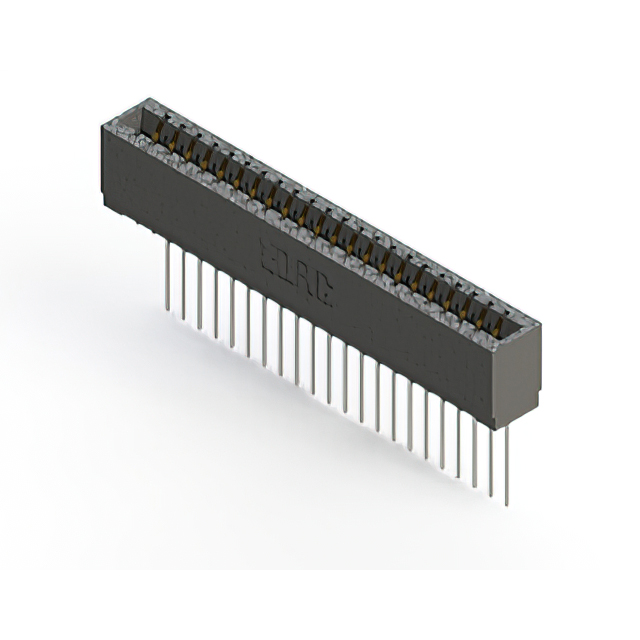

 EDAC Inc. | Polyester Thermoplastic | Female | 3.18 mm | 0.125 in | Non Specified - Single Edge | 22 | 22 | Black | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Press-Fit Wire Wrap | Cantilever | 30 Áin | 0.76 Ám | -40 C | 105 ░C | Gold | Through Hole | 1 | 1 | ||

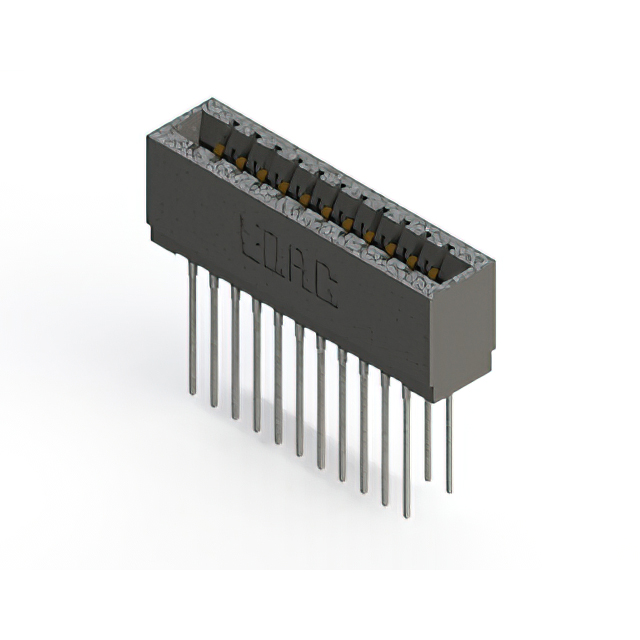

 EDAC Inc. | Polyester Thermoplastic | 2 | Female | 3.18 mm | 0.125 in | Non Specified - Dual Edge | 22 | 11 | Black | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Press-Fit Wire Wrap | Cantilever | 30 Áin | 0.76 Ám | -40 C | 105 ░C | Gold | 2 | Through Hole | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | 3.18 mm | 0.125 in | Non Specified - Dual Edge | 22 | 11 | Black | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Press-Fit Wire Wrap | Cantilever | 30 Áin | 0.76 Ám | -40 C | 105 ░C | Gold | 2 | Through Hole |
