684M9W4 Series
Manufacturer: NorComp Inc.
Beta
⌘K

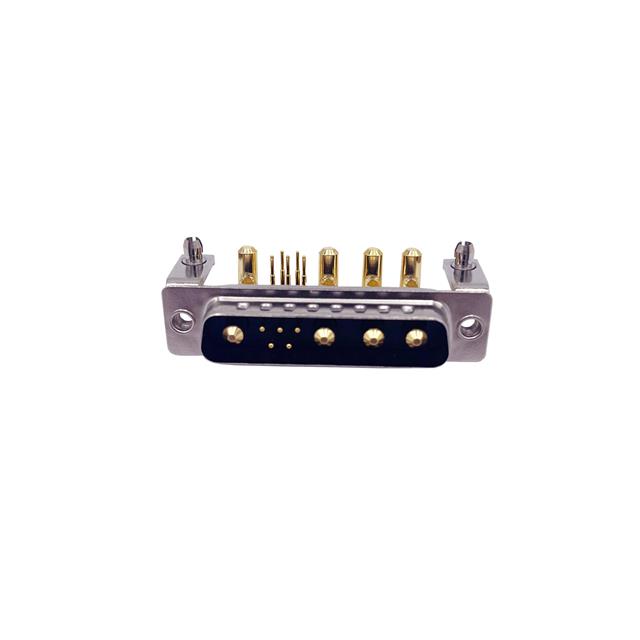

COMBO D-SUB CONN, PLUG, DB-9W4, TH ROHS COMPLIANT: YES
| Part | Contact Material | Dielectric Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Color | Connector Style | Contact Type | Contact Finish Thickness | Termination | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [x] | Features | Flange Feature | Flange Feature | Current Rating (Amps) | Connector Type | Contact Finish | Backset Spacing | Backset Spacing | Material Flammability Rating | Number of Rows [custom] | Shell Material, Finish | Mounting Type | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) | 250 V | -55 C | 125 °C | Black | Combo D-Sub | Signal and Power | Flash | Solder | DB B - 9W4 | 3 | Board Lock Grounding Indents Mounting Brackets | Housing/Shell | 4-40 | 5 A 40 A | Plug Male Pins | Gold | 9.4 mm | 0.37 in | UL94 V-0 | 2 | Nickel Plated Steel | Board Edge Right Angle Through Hole | 4 | 5 |
