2475/26 Series

Catalog

HOOK-UP STRND 26AWG CLEAR

Part	Jacket (Insulation) Material	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Features	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length

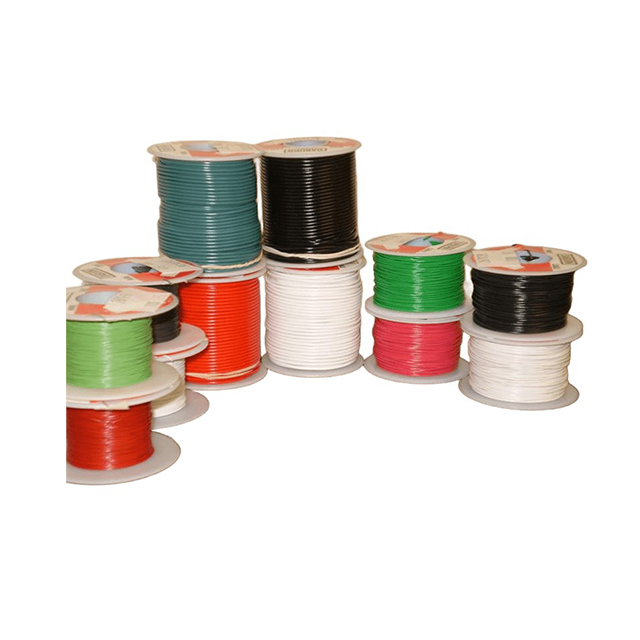

Daburn Electronics 2475/26 CL-100	Fluorinated Ethylene-Propylene (FEP)	Hook-Up	0.38 mm	0.015 in	100 ft	30.5 m	20 kVDC	19	38	Copper Silver Coated	0.05 "	1.27 mm	Clear	High Voltage	26 AWG	-65 ░C	200 °C
Daburn Electronics 2475/26 BU-500	Fluorinated Ethylene-Propylene (FEP)	Hook-Up	0.38 mm	0.015 in			20 kVDC	19	38	Copper Silver Coated	0.05 "	1.27 mm	Blue	High Voltage	26 AWG	-65 ░C	200 °C	152.4 m	500 ft
Daburn Electronics 2475/26 OR-1000	Fluorinated Ethylene-Propylene (FEP)	Hook-Up	0.38 mm	0.015 in			20 kVDC	19	38	Copper Silver Coated	0.05 "	1.27 mm	Orange	High Voltage	26 AWG	-65 ░C	200 °C	304.8 m	1000 ft
Daburn Electronics 2475/26 WH-1000	Fluorinated Ethylene-Propylene (FEP)	Hook-Up	0.38 mm	0.015 in			20 kVDC	19	38	Copper Silver Coated	0.05 "	1.27 mm	White	High Voltage	26 AWG	-65 ░C	200 °C	304.8 m	1000 ft
Daburn Electronics 2475/26 CL-1000	Fluorinated Ethylene-Propylene (FEP)	Hook-Up	0.38 mm	0.015 in			20 kVDC	19	38	Copper Silver Coated	0.05 "	1.27 mm	Clear	High Voltage	26 AWG	-65 ░C	200 °C	304.8 m	1000 ft
Daburn Electronics 2475/26 GN-500	Fluorinated Ethylene-Propylene (FEP)	Hook-Up	0.38 mm	0.015 in			20 kVDC	19	38	Copper Silver Coated	0.05 "	1.27 mm	Green	High Voltage	26 AWG	-65 ░C	200 °C	152.4 m	500 ft
Daburn Electronics 2475/26 GN-1000	Fluorinated Ethylene-Propylene (FEP)	Hook-Up	0.38 mm	0.015 in			20 kVDC	19	38	Copper Silver Coated	0.05 "	1.27 mm	Green	High Voltage	26 AWG	-65 ░C	200 °C	304.8 m	1000 ft
Daburn Electronics 2475/26 WH-100	Fluorinated Ethylene-Propylene (FEP)	Hook-Up	0.38 mm	0.015 in	100 ft	30.5 m	20 kVDC	19	38	Copper Silver Coated	0.05 "	1.27 mm	White	High Voltage	26 AWG	-65 ░C	200 °C
Daburn Electronics 2475/26 VI-500	Fluorinated Ethylene-Propylene (FEP)	Hook-Up	0.38 mm	0.015 in			20 kVDC	19	38	Copper Silver Coated	0.05 "	1.27 mm	Violet	High Voltage	26 AWG	-65 ░C	200 °C	152.4 m	500 ft
