DA9214-A Series

Multiphase 2x 10A Output Current Sub-PMIC

Manufacturer: Renesas Electronics Corporation

Catalog

Multiphase 2x 10A Output Current Sub-PMIC

Part	Number of Outputs	Voltage - Output (Max) [Max]	Frequency - Switching	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Mounting Type	Output Configuration	Current - Output	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Function	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Topology	Voltage - Input (Min) [Min]
Renesas Electronics Corporation DA9214-XXFS1
Renesas Electronics Corporation DA9214-XXFS1-A	2	4.3 V	3 MHz	5.75	66-VFBGA	3.55	Surface Mount	Positive	10 A	0.3 V	5.5 V	Step-Down	Adjustable (Programmable)	85 °C	-40 °C	66-VFBGA	Buck	2.8 V
Renesas Electronics Corporation DA9214-XXUP2	2	4.3 V	3 MHz	4.53	66-WLCSP	2.51	Surface Mount	Positive	10 A	0.3 V	5.5 V	Step-Down	Adjustable (Programmable)	85 °C	-40 °C	66-UFBGA WLCSP	Buck	2.8 V
Renesas Electronics Corporation DA9214-XXFS1-AT	2	4.3 V	3 MHz	5.75	66-VFBGA	3.55	Surface Mount	Positive	10 A	0.3 V	5.5 V	Step-Down	Adjustable (Programmable)	85 °C	-40 °C	66-VFBGA	Buck	2.8 V
Renesas Electronics Corporation DA9214-XXFSC
Renesas Electronics Corporation DA9214-XXFSC-AT	2	4.3 V	3 MHz	5.75	66-VFBGA	3.55	Surface Mount	Positive	10 A	0.3 V	5.5 V	Step-Down	Adjustable (Programmable)	85 °C	-40 °C	66-VFBGA	Buck	2.8 V

Catalog

Multiphase 2x 10A Output Current Sub-PMIC

Description

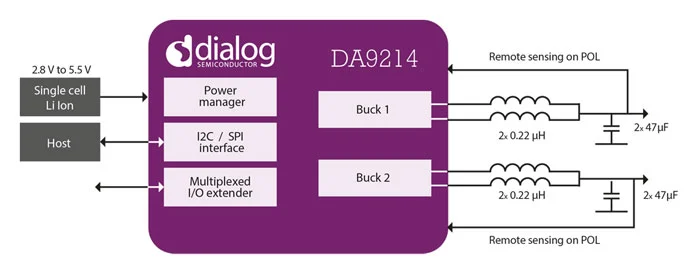

The DA9214-A is a synchronous dual step-down converter supplying the processor's core and GPU rail in automotive infotainment and navigation system applications requiring high currents. DA9214-A is also suitable for powering FPGAs. The input voltage range of 2.8V to 5.5V makes it suitable for standard 5V supplies or USB power supplies. DA9214-A delivers2x 10A output current, suitable for the highest performing application processors such as multicore arrangements of the Arm®Cortex®-A15/A57 family. Due to the multiphase topology, DA9214-A provides outstanding load transient response and component sizes below 1mm height.
