R30-601 Series

Catalog

SPACER, ROUND, BRASS, 16MM ROHS COMPLIANT: YES

Part	Gender	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Type	Material	Screw, Thread Size	Length - Overall [x]	Length - Overall [x]	Between Board Height [z]	Between Board Height [z]	Plating	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Length - Overall	Length - Overall	Between Board Height	Between Board Height	Between Board Height	Between Board Height [custom]	Between Board Height [custom]
Harwin Inc. R30-6011602	Female Female	4.78 mm	0.1875 "	0.188 in	Round Spacer	Brass	M3	0.63 in	16 mm	16 mm	0.63 in	Nickel	3.3 mm	0.13 in
Harwin Inc. R30-6010502	Female Female	4.78 mm	0.1875 "	0.188 in	Round Spacer	Brass	M3					Nickel	3.3 mm	0.13 in	0.197 in	5 mm	5 mm	0.197 in

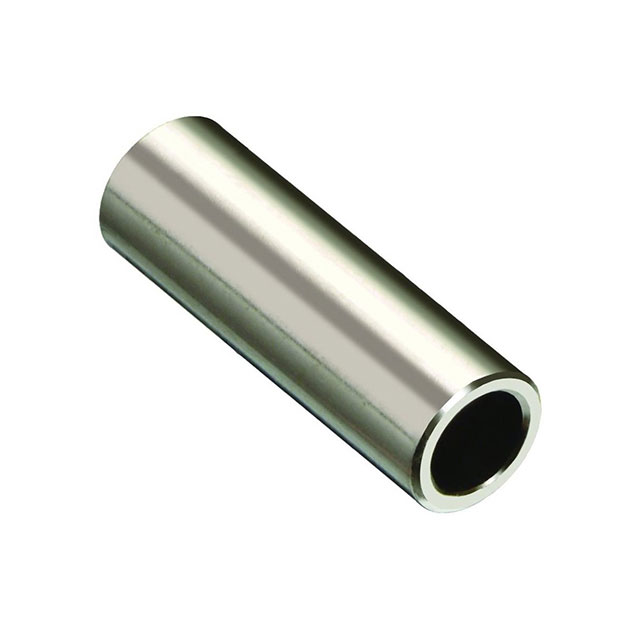

Harwin Inc. R30-6011802	Female Female	4.78 mm	0.1875 "	0.188 in	Round Spacer	Brass	M3	0.709 "	18 mm	18 mm	0.709 in	Nickel	3.3 mm	0.13 in

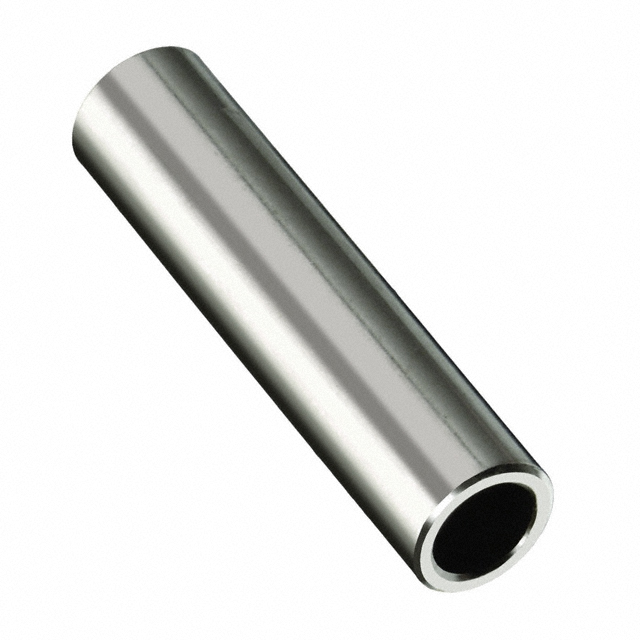

Harwin Inc. R30-6013002	Female Female	4.78 mm	0.1875 "	0.188 in	Round Spacer	Brass	M3	1.181 in	30 mm			Nickel	3.3 mm	0.13 in				30 mm	1.181 in
Harwin Inc. R30-6010202	Female Female	4.78 mm	0.1875 "	0.188 in	Round Spacer	Brass	M3	0.079 in	2 mm			Nickel	3.3 mm	0.13 in						2 mm	0.079 in

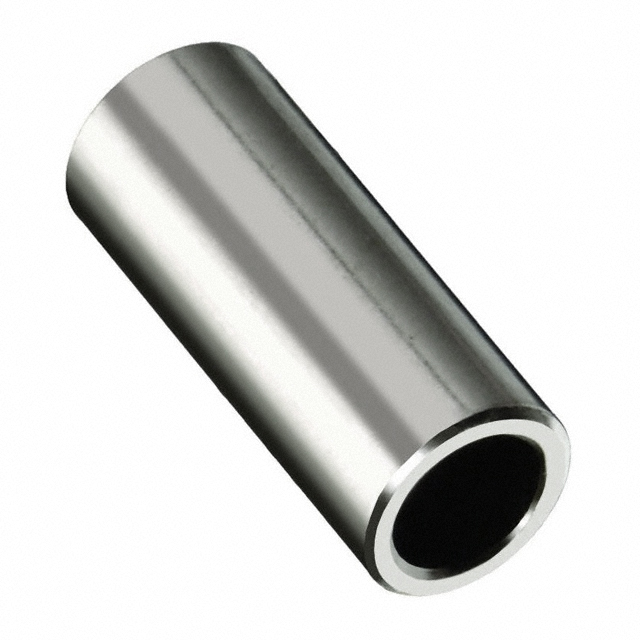

Harwin Inc. R30-6010902	Female Female	4.78 mm	0.1875 "	0.188 in	Round Spacer	Brass	M3	0.354 in	9 mm			Nickel	3.3 mm	0.13 in				9 mm	0.354 in
Harwin Inc. R30-6011202	Female Female	4.78 mm	0.1875 "	0.188 in	Round Spacer	Brass	M3	0.472 in	12 mm			Nickel	3.3 mm	0.13 in				12 mm	0.472 in

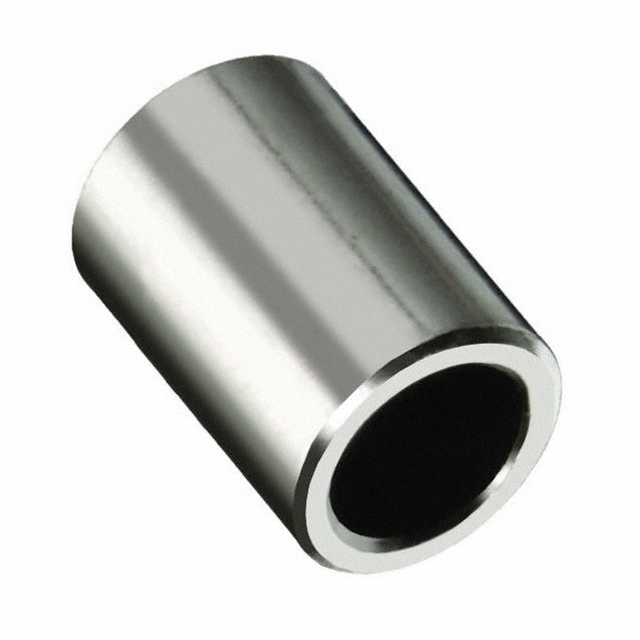

Harwin Inc. R30-6010702	Female Female	4.78 mm	0.1875 "	0.188 in	Round Spacer	Brass	M3	0.276 "	7 mm			Nickel	3.3 mm	0.13 in				7 mm	0.276 in
