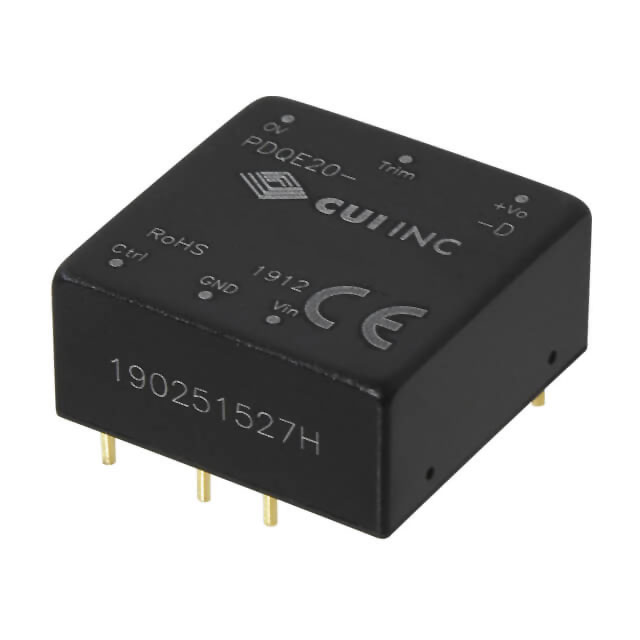

PDQE20 Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER 3.3V 17W
| Part | Type | Voltage - Input (Min) [Min] | Current - Output (Max) | Voltage - Input (Max) [Max] | Standard Number | Package / Case | Features | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Approval Agency | Applications | Power (Watts) | Voltage - Isolation | Voltage - Output 1 | Efficiency | Current - Output (Max) [Max] | Voltage - Output 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | Isolated Module | 18 V | 5 A | 75 V | 55024 55032 Class A 62368-1 | 6-DIP Module | OCP OVP Remote On/Off SCP | Through Hole | 95 °C | -40 °C | 1 | 1 " | 25.4 mm | 1 in | 0.46 in | 11.7 mm | 25.4 mm | CB Scheme EN IEC UL | ITE (Commercial) | 17 W | 1.5 kV | 3.3 V | 88 % | ||
CUI Inc. | Isolated Module | 9 V | 5 A | 36 V | 55024 55032 Class A 62368-1 | 6-DIP Module | OCP OVP Remote On/Off SCP | Through Hole | 95 °C | -40 °C | 1 | 1 " | 25.4 mm | 1 in | 0.46 in | 11.7 mm | 25.4 mm | CB Scheme EN IEC UL | ITE (Commercial) | 17 W | 1.5 kV | 3.3 V | 88 % | ||
CUI Inc. | Isolated Module | 18 V | 75 V | 55024 55032 Class A 62368-1 | 6-DIP Module | OCP OVP Remote On/Off SCP | Through Hole | 95 °C | -40 °C | 1 | 1 " | 25.4 mm | 1 in | 0.46 in | 11.7 mm | 25.4 mm | CB Scheme EN IEC UL | ITE (Commercial) | 20 W | 1.5 kV | 5 V | 90 % | 4 A | ||
CUI Inc. | Isolated Module | 9 V | 36 V | 55024 55032 Class A 62368-1 | 6-DIP Module | OCP OVP Remote On/Off SCP | Through Hole | 105 C | -40 °C | 1 | 1 " | 25.4 mm | 1 in | 0.46 in | 11.7 mm | 25.4 mm | CB Scheme EN IEC UL | ITE (Commercial) | 20 W | 1.5 kV | 12 V | 90 % | 1.667 A | ||
CUI Inc. | Isolated Module | 9 V | 36 V | 55024 55032 | 6-DIP Module | OCP OVP Remote On/Off SCP | Through Hole | 105 C | -40 °C | 2 | 1 " | 25.4 mm | 1 in | 0.46 in | 11.7 mm | 25.4 mm | EN | ITE (Commercial) | 20 W | 1.5 kV | 5 V | 87 % | 2 A | -5 V | |
CUI Inc. | Isolated Module | 18 V | 417 mA | 75 V | 55024 55032 | 6-DIP Module | OCP OVP Remote On/Off SCP | Through Hole | 105 C | -40 °C | 2 | 1 " | 25.4 mm | 1 in | 0.46 in | 11.7 mm | 25.4 mm | EN | ITE (Commercial) | 20 W | 1.5 kV | 24 V | 90 % | -24 V | |
CUI Inc. | Isolated Module | 18 V | 75 V | 55024 55032 Class A 62368-1 | 6-DIP Module | OCP OVP Remote On/Off SCP | Through Hole | 105 C | -40 °C | 1 | 1 " | 25.4 mm | 1 in | 0.46 in | 11.7 mm | 25.4 mm | CB Scheme EN IEC UL | ITE (Commercial) | 20 W | 1.5 kV | 15 V | 91 % | 1.333 A |
