KWH5L531 Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K

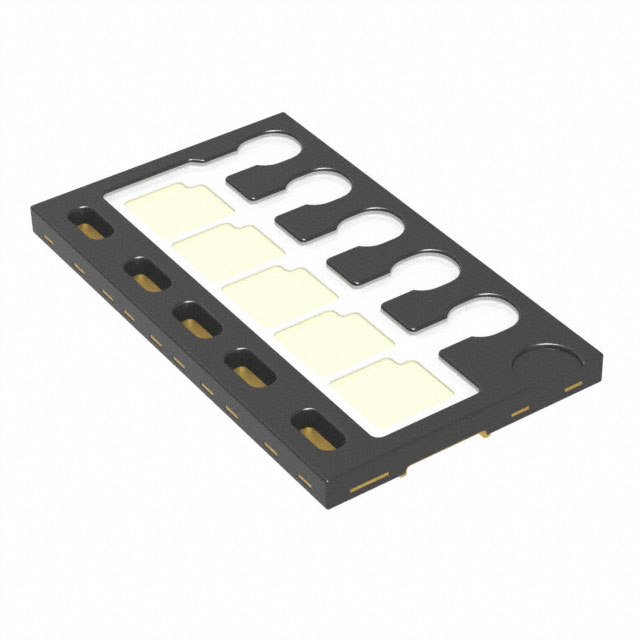

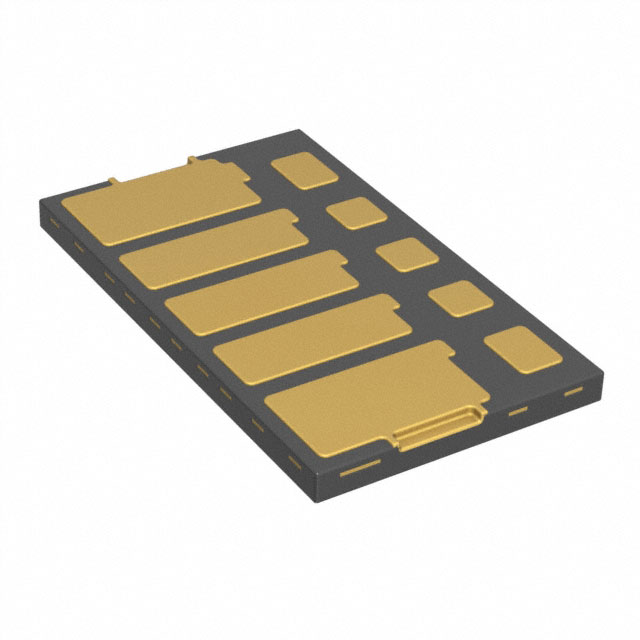

LED OSLON WHITE SMD
| Part | Thermal Resistance of Package | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] [z] | Color | Supplier Device Package | Current - Test | Lumens/Watt @ Current - Test | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Current - Max [Max] | Voltage - Forward (Vf) (Typ) | Viewing Angle | Mounting Type | Package / Case | Flux @ 25°C, Current - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | 0.9 °C/W | 0.49 mm | 0.019 " | White | SMD | 1 A | 119 lm/W | 0.252 in | 3.75 mm | 0.148 in | 6.4 mm | 1.2 A | 15.3 V | 120 ° | Surface Mount | 10-SMD No Lead | |
 ams-OSRAM USA INC. | 1.1 °C/W | 0.49 mm | 0.019 " | White | SMD | 1 A | 119 lm/W | 0.252 in | 3.75 mm | 0.148 in | 6.4 mm | 1.2 A | 15.3 V | 120 ° | Surface Mount | 10-SMD No Lead | 1820 lm |
