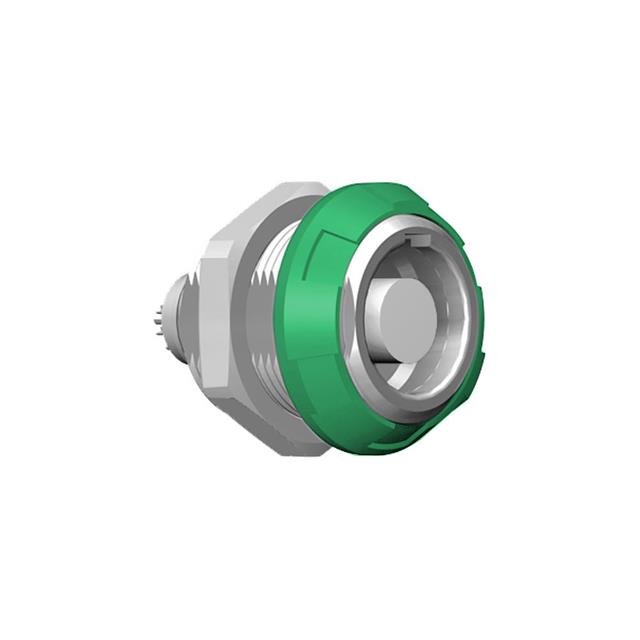

G51MC7-P Series
Manufacturer: ODU
Beta
⌘K
CONN RCPT FMALE 10P SOLDER CUP
| Part | Shell Size - Insert | Primary Material | Shielding | Fastening Type | Contact Finish - Mating | Current Rating (Amps) | Contact Material | Applications | Connector Type | Orientation | Number of Positions | Ingress Protection | Mounting Feature | Insert Material | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Shell Material | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | Plastic | Unshielded | Detent Lock Push-Pull | Gold | 2.75 A | Brass | Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | C | 10 | IP50 - Dust Protected | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | 120 °C | -50 °C | Panel Mount | Polysulfone (PSU) | ||
1 | Plastic | Unshielded | Detent Lock Push-Pull | Gold | 4.55 A | Brass | Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | C | 7 | IP50 - Dust Protected | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | 120 °C | -50 °C | Panel Mount | Polysulfone (PSU) | Gray Green | |
1 | Plastic | Unshielded | Detent Lock Push-Pull | Gold | 2.75 A | Brass | Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | C | 9 | IP50 - Dust Protected | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | 120 °C | -50 °C | Panel Mount | Polysulfone (PSU) | Blue Gray | |
1 | Plastic | Unshielded | Detent Lock Push-Pull | Gold | 4.55 A | Brass | Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | C | 7 | IP50 - Dust Protected | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | 120 °C | -50 °C | Panel Mount | Polysulfone (PSU) | Gray | |
1 | Plastic | Unshielded | Detent Lock Push-Pull | Gold | 10 A | Brass | Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | C | 4 | IP50 - Dust Protected | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | 120 °C | -50 °C | Panel Mount | Polysulfone (PSU) | Blue Gray | |
1 | Plastic | Unshielded | Detent Lock Push-Pull | Gold | 7.5 A | Brass | Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | C | 5 | IP50 - Dust Protected | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | 120 °C | -50 °C | Panel Mount | Polysulfone (PSU) | Blue Gray | |
1 | Plastic | Unshielded | Detent Lock Push-Pull | Gold | 2.5 A | Brass | Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | C | 14 | IP50 - Dust Protected | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | 120 °C | -50 °C | Panel Mount | Polysulfone (PSU) | Gray | |
1 | Plastic | Unshielded | Detent Lock Push-Pull | Gold | 10 A | Brass | Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | C | 4 | IP50 - Dust Protected | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | 120 °C | -50 °C | Panel Mount | Polysulfone (PSU) | Gray Red | |
1 | Plastic | Unshielded | Detent Lock Push-Pull | Gold | 2.75 A | Brass | Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | C | 9 | IP50 - Dust Protected | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | 120 °C | -50 °C | Panel Mount | Polysulfone (PSU) | Gray Green | |
1 | Plastic | Unshielded | Detent Lock Push-Pull | Gold | 10 A | Brass | Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | C | 4 | IP50 - Dust Protected | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | 120 °C | -50 °C | Panel Mount | Polysulfone (PSU) |
