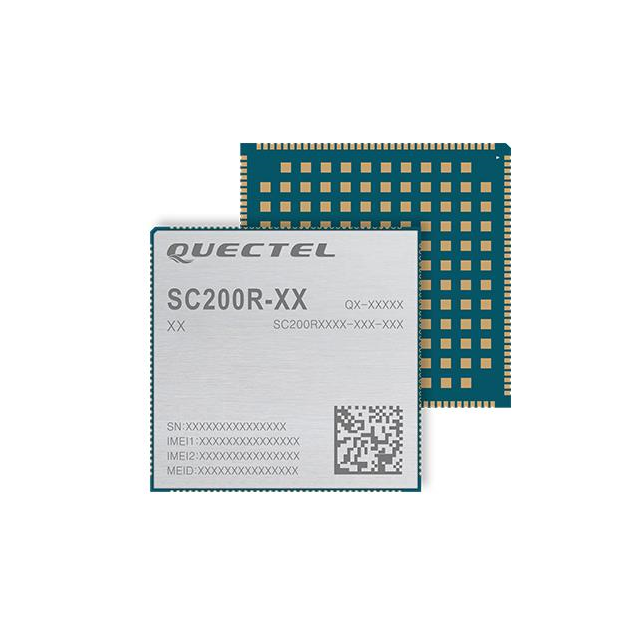

SC200 Series
Manufacturer: Quectel
Beta
⌘K
MULTIPROTOCOL MODULE, BLUETOOTH 2.1 EDR/3.0/4.1 LE/4.2 LE, GSM, GNSS, IEEE 802.11A/B/G/N, LTE-FDD/TD… MORE
| Part | Frequency | Antenna Type | Data Rate | Protocol | Operating Temperature [Max] | Operating Temperature [Min] | Serial Interfaces | RF Family/Standard | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type | Package / Case | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Quectel | 1.8 GHz 1.9 GHz 2.4 GHz 5 GHz 850 MHz 900 MHz | Antenna Not Included | 150 Mbps | 802.11a/b/g/n BeiDou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Galileo GLONASS GNSS GPS | 75 ░C | -35 °C | ADC GPIO I2C I2S SDIO SPI UART USB | Bluetooth Navigation WiFi | 4.2 V | 3.55 V | Surface Mount | Module | |
 Quectel | 1.8 GHz 2.4 GHz 5 GHz 900 MHz | Antenna Not Included | 150 Mbps | 802.11a/b/g/n BeiDou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Galileo GLONASS GNSS GPS | 75 ░C | -35 °C | ADC GPIO I2C I2S SDIO SPI UART USB | Bluetooth Navigation WiFi | 4.2 V | 3.55 V | Surface Mount | Module | Qualcomm® Snapdragon QCM2150 |
Quectel | 2.4 GHz 5 GHz | Antenna Not Included | 150 Mbps | 802.11a/b/g/n Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 | 75 ░C | -35 °C | ADC GPIO I2C I2S SDIO SPI UART USB | Bluetooth WiFi | 4.2 V | 3.55 V | Surface Mount | Module | Qualcomm® Snapdragon QCM2152 |
Quectel | 2.4 GHz 5 GHz | Antenna Not Included | 150 Mbps | 802.11a/b/g/n Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 | 75 ░C | -35 °C | ADC GPIO I2C I2S SDIO SPI UART USB | Bluetooth WiFi | 4.2 V | 3.55 V | Surface Mount | Module | Qualcomm® Snapdragon QCM2151 |
Quectel | 1.8 GHz 2.4 GHz 5 GHz 900 MHz | Antenna Not Included | 150 Mbps | 802.11a/b/g/n BeiDou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Galileo GLONASS GNSS GPS | 75 ░C | -35 °C | ADC GPIO I2C I2S SDIO SPI UART USB | Bluetooth Navigation WiFi | 4.2 V | 3.55 V | Surface Mount | Module | Qualcomm® Snapdragon QCM2150 |
Quectel | 2.4 GHz 5 GHz | Antenna Not Included | 150 Mbps | 802.11a/b/g/n BeiDou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Galileo GLONASS GNSS GPS | 75 ░C | -35 °C | ADC GPIO I2C I2S SDIO SPI UART USB | Bluetooth Navigation WiFi | 4.2 V | 3.55 V | Surface Mount | Module | Qualcomm® Snapdragon QCM2150 |
Quectel | 1.8 GHz 1.9 GHz 2.4 GHz 5 GHz 850 MHz 900 MHz | Antenna Not Included | 150 Mbps | 802.11a/b/g/n BeiDou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Galileo GLONASS GNSS GPS | 75 ░C | -35 °C | ADC GPIO I2C I2S SDIO SPI UART USB | Bluetooth Navigation WiFi | 4.2 V | 3.55 V | Surface Mount | Module | Qualcomm® Snapdragon QCM2151 |
Quectel | 1.8 GHz 1.9 GHz 2.4 GHz 5 GHz 850 MHz 900 MHz | Antenna Not Included | 150 Mbps | 802.11a/b/g/n BeiDou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Galileo GLONASS GNSS GPS | 75 ░C | -35 °C | ADC GPIO I2C I2S SDIO SPI UART USB | Bluetooth Navigation WiFi | 4.2 V | 3.55 V | Surface Mount | Module | Qualcomm® Snapdragon QCM2151 |
