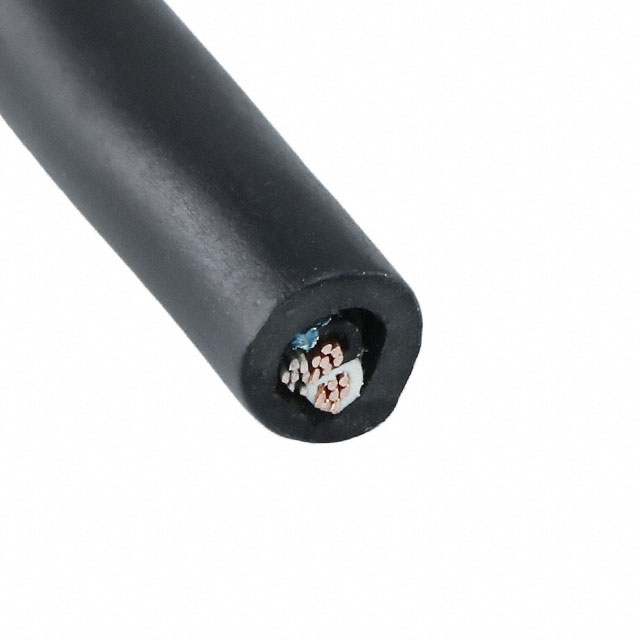

5610B2201 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTIPAIR CABLE, INSTRUMENTATION, SHIELDED, 1 PAIR, 22 AWG, 0.35 MM², 1000 FT, 304.8 M
| Part | Shield Coverage | Shield Material | Voltage | Conductor Material | Number of Conductors | Jacket (Insulation) Thickness [custom] | Jacket (Insulation) Thickness [custom] | Shield Type | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Features | Wire Gauge | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 300 VDC | Copper Bare | 2 | 0.038 in | 0.965 mm | Foil | 304.8 m | 1000 ft | 0.192 in | 4.88 mm | Poly-Vinyl Chloride (PVC) | Drain Wire | 22 AWG | Poly-Vinyl Chloride (PVC) | -20 ░C | 105 ░C | 28 AWG | 7 | Multi-Conductor |
