IDLV-45 Series

Catalog

LED DRIVER CV AC/DC 36V 1.25A

Part	Mounting Type	Power (Watts)	Number of Outputs	Features	Approval Agency	Voltage - Isolation	Voltage - Input (Max) [Max]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Dimming	Size / Dimension	Size / Dimension	Termination Style	Efficiency	Current - Output (Max) [Max]	Voltage - Output	Topology	Voltage - Input (Min) [Min]

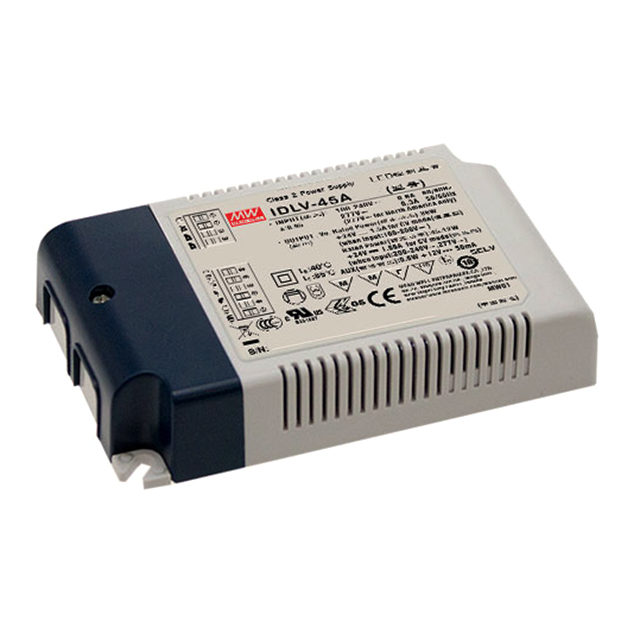

MEAN WELL USA Inc. IDLV-45A-36	Chassis Mount	45 W	1	OCP SCP	CB CCC CE cURus ENEC	3750 VDC	295 VAC	Constant Voltage	85 °C	-20 ░C	Analog PWM	25 mm 75 mm 120 mm	0.98 in 2.95 " 4.72 in	Terminal Block	88 %	1.25 A	36 V	AC DC Converter	90 VAC

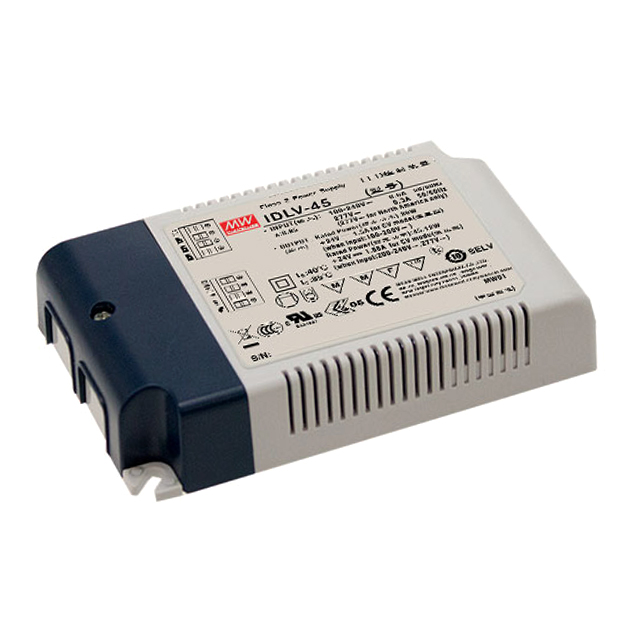

MEAN WELL USA Inc. IDLV-45-36	Chassis Mount	45 W	1	OCP SCP	CB CCC CE cURus ENEC	3750 VDC	295 VAC	Constant Voltage	85 °C	-20 ░C	Analog PWM	25 mm 75 mm 120 mm	0.98 in 2.95 " 4.72 in	Terminal Block	88 %	1.25 A	36 V	AC DC Converter	90 VAC
MEAN WELL USA Inc. IDLV-45A-48	Chassis Mount	45 W	1	OCP SCP	CB CCC CE cURus ENEC	3750 VDC	295 VAC	Constant Voltage	85 °C	-20 ░C	Analog PWM	25 mm 75 mm 120 mm	0.98 in 2.95 " 4.72 in	Terminal Block	88 %	940 mA	48 V	AC DC Converter	90 VAC
