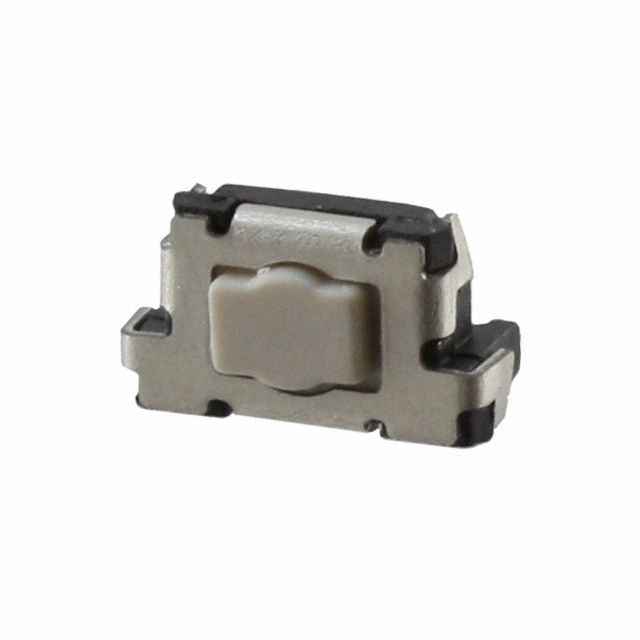

TL4100 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Mechanical Life | Switch Travel | Contact Rating @ Voltage | Termination Style | Circuit | Actuator Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Length, Right Angle | Outline [x] | Outline [y] | Operating Force | Illumination | Mounting Type | Switch Function | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 500000 Cycles | 0.15 mm | 0.05 A 12 VDC | Gull Wing | SPST-NO | Side Actuated | 85 °C | -40 C | 2 mm | 6.2 mm | 2.5 mm | 240 gf | Non-Illuminated | Edge Mount Right Angle | Off-Mom | Rectangular Button |
