MC22MOS Series

Catalog

SW CAPACITIVE SPST-NO 10MA 12V

Part	Mechanical Life	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Mounting Type	Panel Cutout Dimensions [diameter]	Type	Circuit	Color - Actuator/Cap	Illumination Type, Color	Voltage Rating - DC	Current Rating (Amps)	Actuator Marking	Termination Style	Switch Function	Actuator Type	Illumination Voltage (Nominal)
BULGIN LIMITED MC22MOSGR	50000000 Cycles	50 000 000	55 °C	-25 °C	IP68 IP69K	Panel Mount Front	22.2 mm	Capacitive Illuminated	SPST-NO	Silver	Green/Red LED	12 V	500 mA	No Marking	Wire Leads	Off-Mom	Button Flush Round

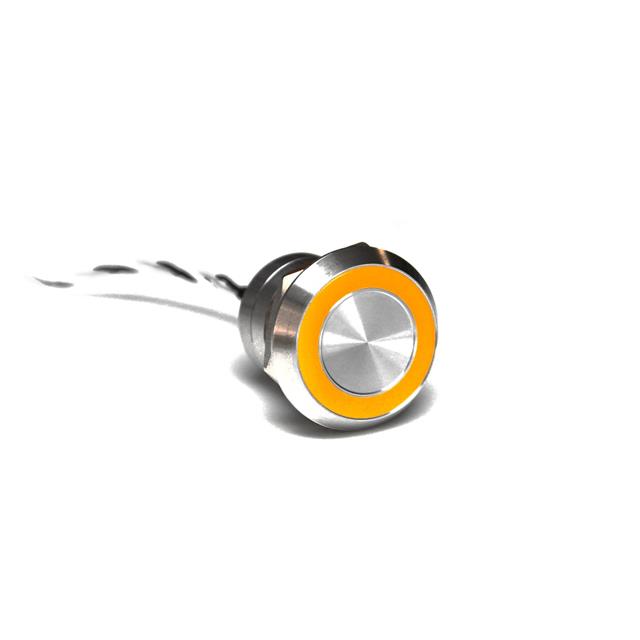

BULGIN LIMITED MC22MOSAM	50000000 Cycles	50 000 000	55 °C	-25 °C	IP68 IP69K	Panel Mount Front	22.2 mm	Capacitive Illuminated	SPST-NO	Silver	Amber LED	24 V	500 mA		Wire Leads	Off-Mom	Button Flush Round	12 VDC
BULGIN LIMITED MC22MOSRG	50000000 Cycles	50 000 000	55 °C	-25 °C	IP68 IP69K	Panel Mount Front	22.2 mm	Capacitive Illuminated	SPST-NO	Silver	Green/Red LED	12 V	500 mA	No Marking	Wire Leads	Off-Mom	Button Flush Round
