1050A Series
Manufacturer: Belden Inc.
Beta
⌘K

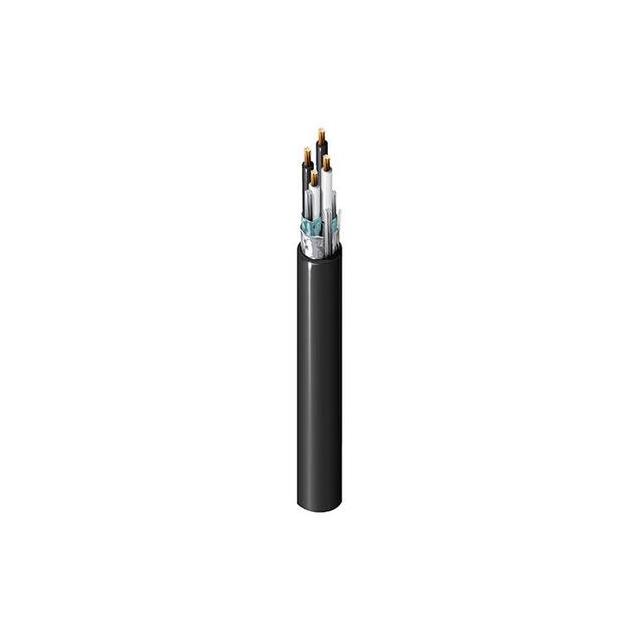

MULTI-PAIR 16COND 18AWG
| Part | Shield Material | Shield Coverage | Jacket Color | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Jacket (Insulation) Material | Wire Gauge | Cable Type | Features | Number of Conductors | Conductor Insulation | Conductor Insulation | Conductor Insulation | Length | Length [x] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Black | Foil | 1.6 mm | 0.063 in | Copper Bare | Poly-Vinyl Chloride (PVC) | 18 AWG | Multi-Pair | Drain Wire Rip Cord | 16 | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | 2286 m | 7500 ft | 26 AWG | 7 | 0.675 in | 17.15 mm |
