1393589 Series

Catalog

CONN PIN COAXIAL 39GOLD 10AMPS

Part	Current Rating (Amps)	Pin or Socket	Type	Contact Finish Thickness	Contact Finish Thickness	Contact Termination	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish
TE Connectivity AMP Connectors 3-1393589-5	10 A	Center Pin	Coaxial	1 Ám	39.4 Áin	PCB Solder

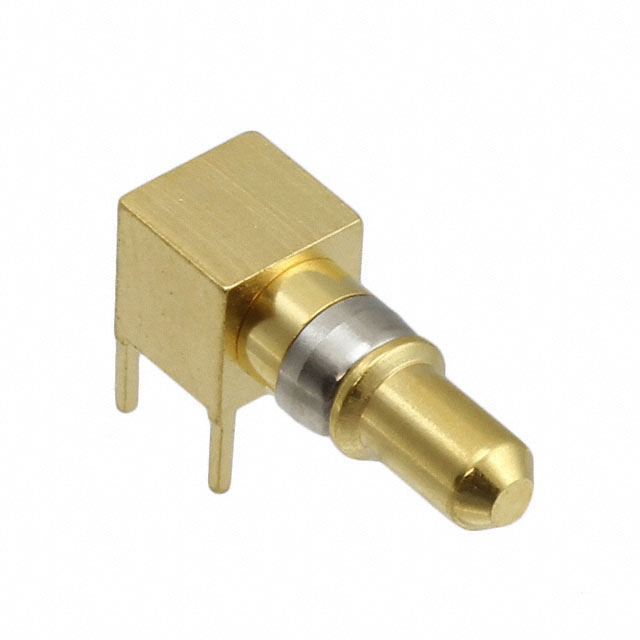

TE Connectivity AMP Connectors 1-1393589-8	25 A	Pin	Power	1 Ám	39.4 Áin	PCB Solder

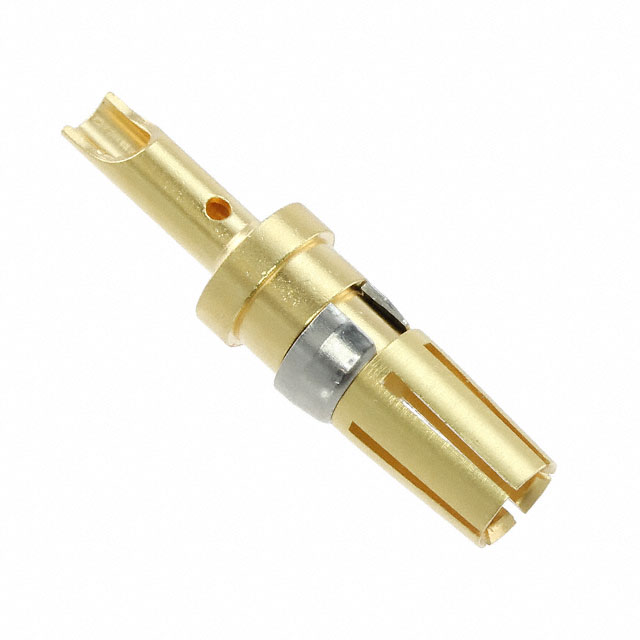

TE Connectivity AMP Connectors 1-1393589-1	10 A	Socket	Power	1 Ám	39.4 Áin	Solder	16 AWG	18 AWG
TE Connectivity AMP Connectors 2-1393589-0	10 A	Pin	Power	1 Ám	39.4 Áin	Solder			Gold

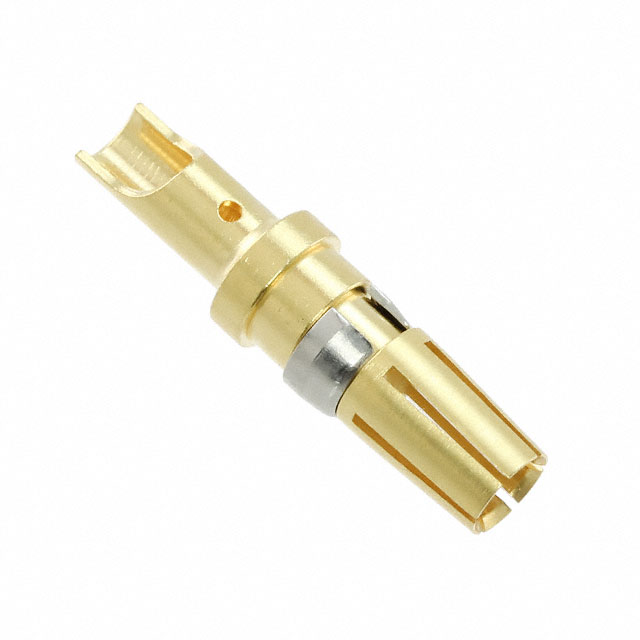

TE Connectivity AMP Connectors 1393589-9	20 A	Socket	Power	1 Ám	39.4 Áin	Solder	12 AWG	14 AWG
