VESD16 Series

Catalog

TVS DIODE 16VWM 28VC SOT363

Part	Voltage - Clamping (Max) @ Ipp [Max]	Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Peak Pulse (10/1000µs)	Package / Case	Unidirectional Channels	Grade	Voltage - Breakdown (Min) [Min]	Capacitance @ Frequency	Voltage - Reverse Standoff (Typ)	Qualification	Power - Peak Pulse	Applications	Unidirectional Channels [custom]
Vishay General Semiconductor - Diodes Division VESD16A5-06GHG3-08	28 V	Zener	SOT-363	150 °C	-55 °C	Surface Mount	3.6 A	6-TSSOP SC-88 SOT-363	5	Automotive	17 V	1 MHz 27 pF	16 V	AEC-Q101	100 W
Vishay General Semiconductor - Diodes Division VESD16C1-HD1-G3-08	28 V	Zener	DFN1006-2A	150 °C	-55 °C	Surface Mount	3.6 A	0402 (1006 Metric)			17.1 V	1 MHz 27 pF	16 V		100 W	General Purpose	1
Vishay General Semiconductor - Diodes Division VESD16A5-06G-G3-08	28 V	Zener	SOT-363	150 °C	-55 °C	Surface Mount	3.6 A	6-TSSOP SC-88 SOT-363	5	Automotive	17 V	1 MHz 27 pF	16 V	AEC-Q101	100 W

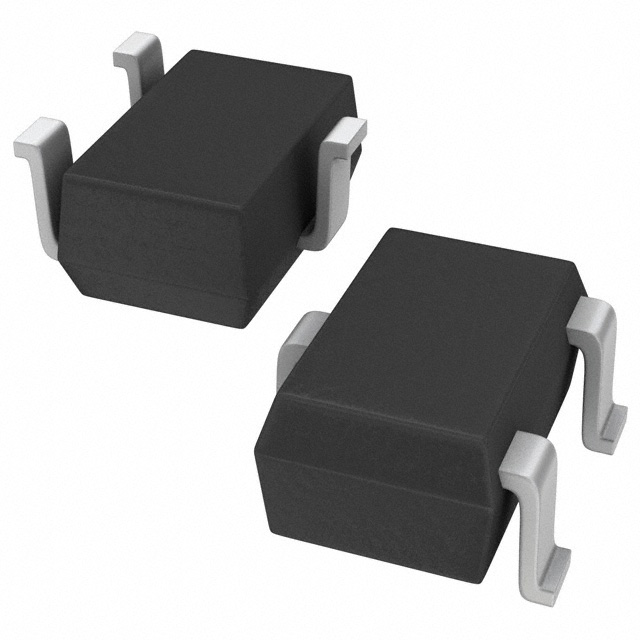

Vishay General Semiconductor - Diodes Division VESD16A2-03GHG3-08	28 V	Zener	SOT-323	150 °C	-55 °C	Surface Mount	3.6 A	SC-70 SOT-323	2	Automotive	17 V	1 MHz 27 pF	16 V	AEC-Q101	100 W
Vishay General Semiconductor - Diodes Division VESD16C1-HD1HG3-08	28 V	Zener	DFN1006-2A	150 °C	-55 °C	Surface Mount	3.6 A	0402 (1006 Metric)		Automotive	17.1 V	1 MHz 27 pF	16 V	AEC-Q101	100 W		1
