LR60024 Series

Catalog

SOLID STATE RELAYS - PCB MOUNT 0.15-40A 4-32VDC

Part	Package / Case	Load Current	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Load [Min]	Voltage - Load [Max]	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Output Type	Approval Agency	Supplier Device Package
Sensata-Crydom LR600240D40R	Module	40 A	PC Pin	80 °C	-30 ░C	24 V	280 V	Through Hole	32 VDC	4 V	AC	CE cURus

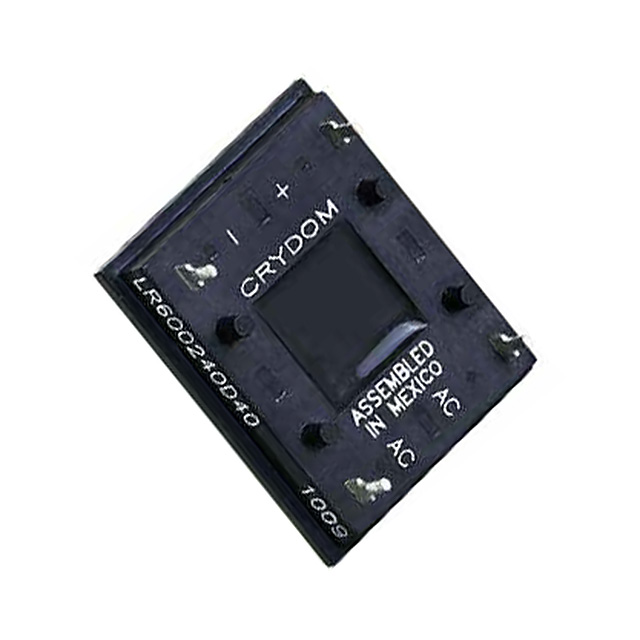

Sensata-Crydom LR600240D40RH	Module	40 A	PC Pin	80 °C	-30 ░C	24 V	280 V	Through Hole	32 VDC	4 V	AC	CE cURus
Sensata-Crydom LR600240D40	Module	40 A	PC Pin	80 °C	-30 ░C	24 V	280 V	Through Hole	32 VDC	4 V	AC Zero Cross	CE cURus
Sensata-Crydom LR600240D25H	Module	25 A	Quick Connect - 0.250" (6.3mm)	80 °C	-30 ░C	24 V	280 V	Chassis Mount	32 VDC	4 V	AC Zero Cross	CE cURus	Module
