299-83 Series

Manufacturer: Preci-Dip

Catalog

CONN IC DIP SOCKET 16POS GOLD

Part	Contact Resistance	Material Flammability Rating	Current Rating (Amps)	Termination Post Length	Termination Post Length	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Contact Finish - Mating	Contact Finish - Post	Termination	Housing Material	Pitch - Mating	Pitch - Mating	Contact Material - Post [custom]	Features	Type	Type	Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Pitch - Post	Pitch - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Mating	Type [custom]	Type [custom]	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]

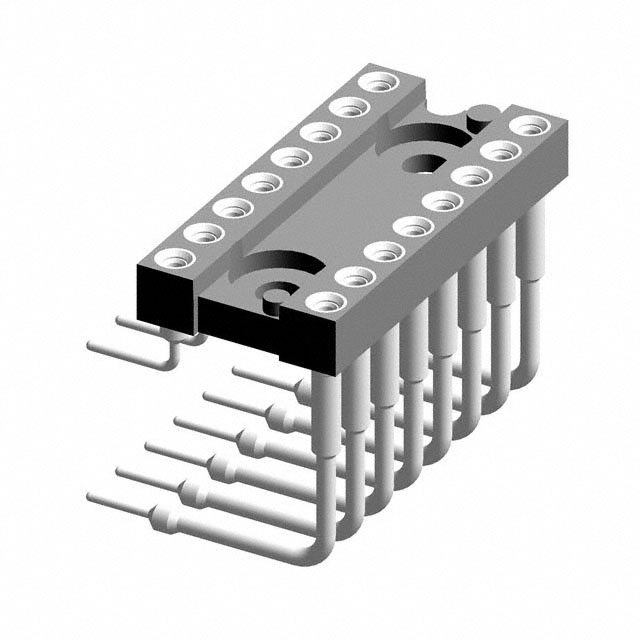

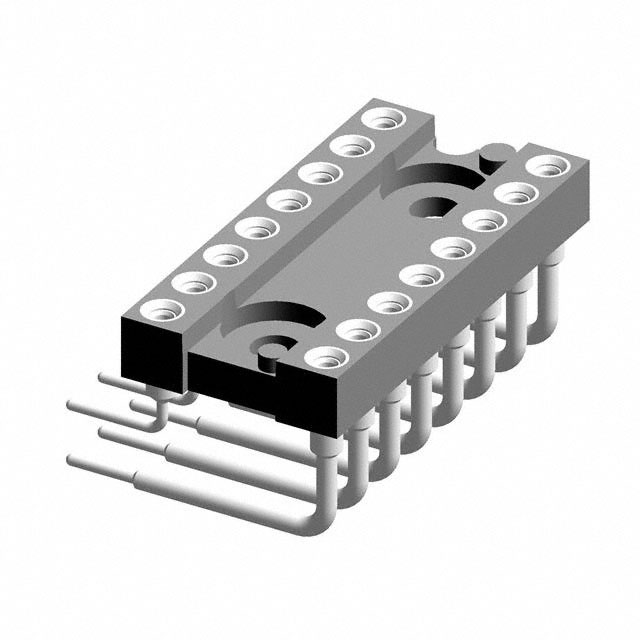

Preci-Dip 299-83-316-11-001101	10 mOhm	UL94 V-0	1 A	3.24 mm	0.128 in	2	16	8	Gold	Tin	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	Brass	Closed Frame	7.62 mm	0.3 in	DIP	29.5 µin	0.75 µm	0.1 in	2.54 mm	-55 C	125 °C	Beryllium Copper

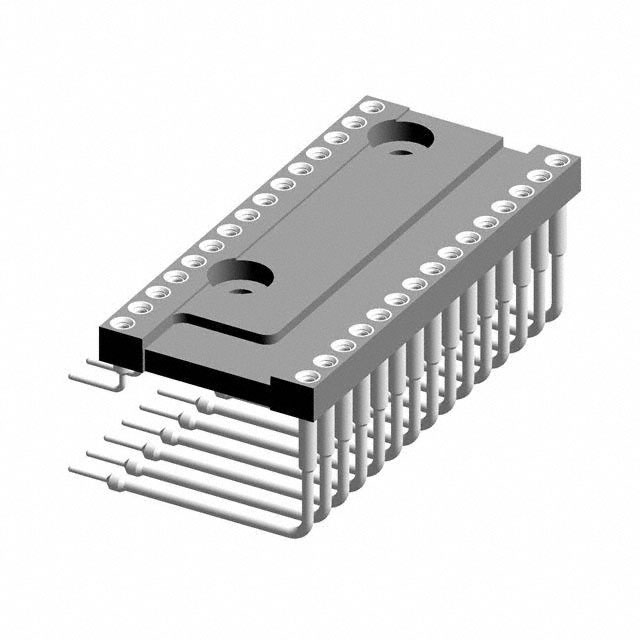

Preci-Dip 299-83-630-10-002101	10 mOhm	UL94 V-0	1 A	3.24 mm	0.128 in	2	30	15	Gold	Tin	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	Brass	Closed Frame			DIP	29.5 µin	0.75 µm	0.1 in	2.54 mm	-55 C	125 °C	Beryllium Copper	15.24 mm	0.6 in

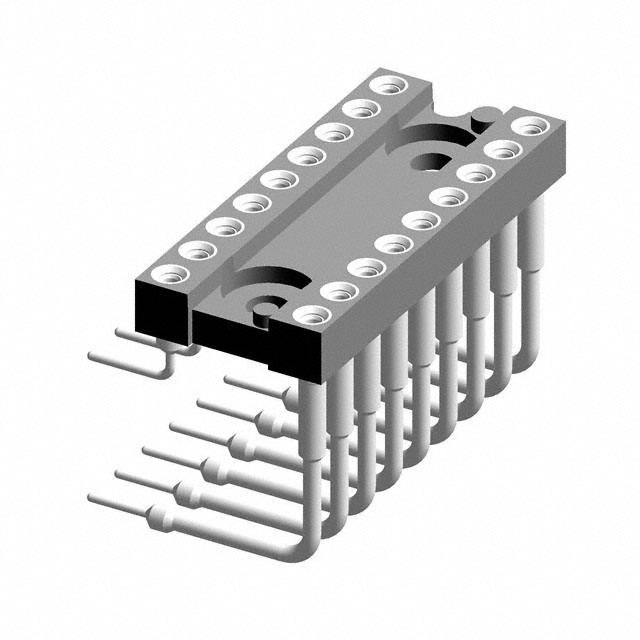

Preci-Dip 299-83-318-10-001101	10 mOhm	UL94 V-0	1 A	3.24 mm	0.128 in		18		Gold	Tin	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	Brass	Closed Frame	7.62 mm	0.3 in	DIP	29.5 µin	0.75 µm	0.1 in	2.54 mm	-55 C	125 °C	Beryllium Copper

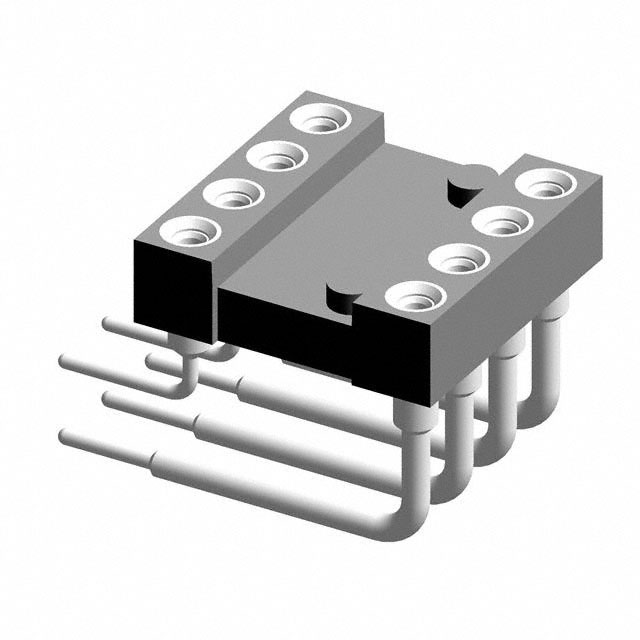

Preci-Dip 299-83-308-11-001101	10 mOhm	UL94 V-0	1 A	3.24 mm	0.128 in		8		Gold	Tin	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	Brass	Closed Frame	7.62 mm	0.3 in	DIP	29.5 µin	0.75 µm	0.1 in	2.54 mm	-55 C	125 °C	Beryllium Copper			2	4

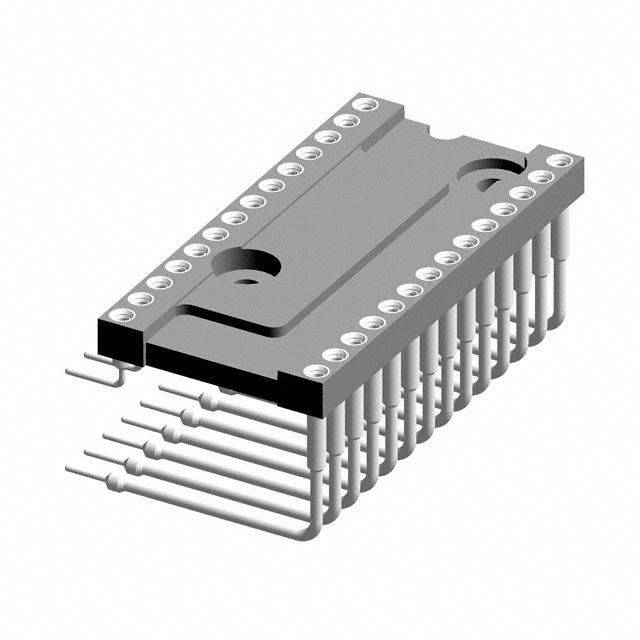

Preci-Dip 299-83-628-10-002101	10 mOhm	UL94 V-0	1 A	3.24 mm	0.128 in		28		Gold	Tin	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	Brass	Closed Frame			DIP	29.5 µin	0.75 µm	0.1 in	2.54 mm	-55 C	125 °C	Beryllium Copper	15.24 mm	0.6 in

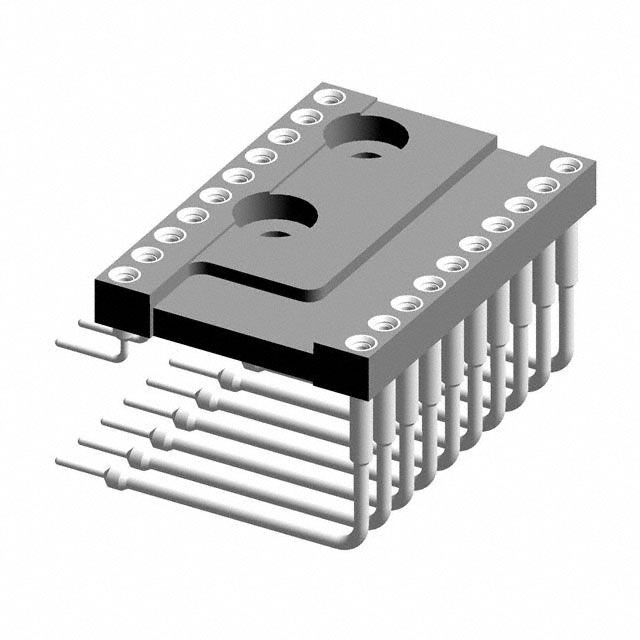

Preci-Dip 299-83-620-10-002101	10 mOhm	UL94 V-0	1 A	3.24 mm	0.128 in		20		Gold	Tin	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	Brass	Closed Frame			DIP	29.5 µin	0.75 µm	0.1 in	2.54 mm	-55 C	125 °C	Beryllium Copper	15.24 mm	0.6 in

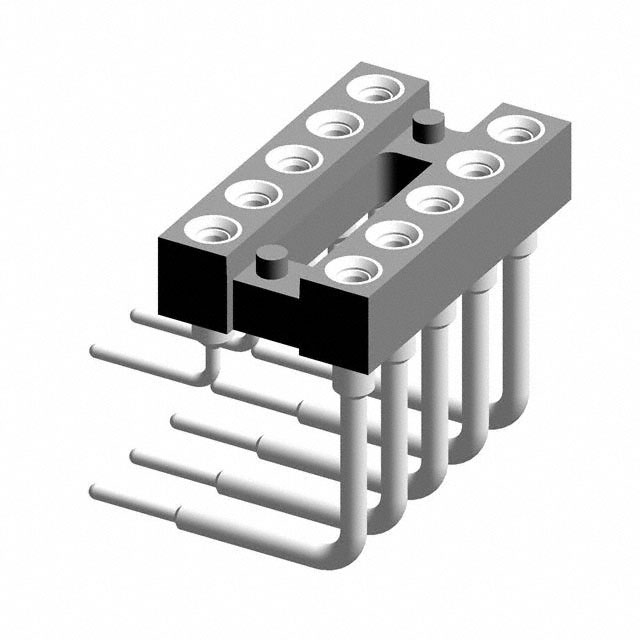

Preci-Dip 299-83-210-10-001101	10 mOhm	UL94 V-0	1 A	3.24 mm	0.128 in		10		Gold	Tin	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	Brass	Closed Frame	5.08 mm		DIP	29.5 µin	0.75 µm	0.1 in	2.54 mm	-55 C	125 °C	Beryllium Copper			2	5

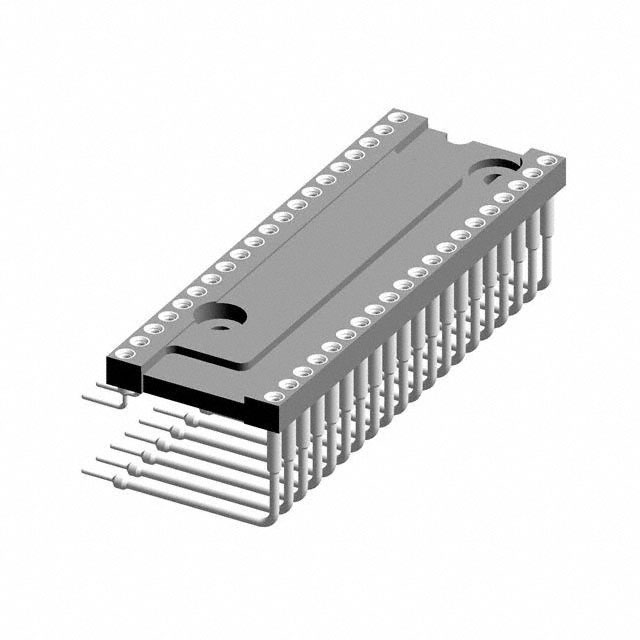

Preci-Dip 299-83-640-10-002101	10 mOhm	UL94 V-0	1 A	3.24 mm	0.128 in		40		Gold	Tin	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	Brass	Closed Frame			DIP	29.5 µin	0.75 µm	0.1 in	2.54 mm	-55 C	125 °C	Beryllium Copper	15.24 mm	0.6 in

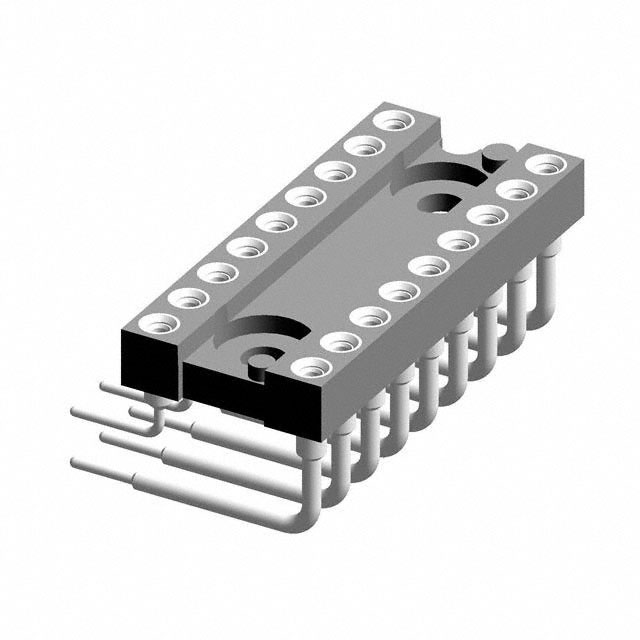

Preci-Dip 299-83-318-11-001101	10 mOhm	UL94 V-0	1 A	3.24 mm	0.128 in		18		Gold	Tin	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	Brass	Closed Frame	7.62 mm	0.3 in	DIP	29.5 µin	0.75 µm	0.1 in	2.54 mm	-55 C	125 °C	Beryllium Copper

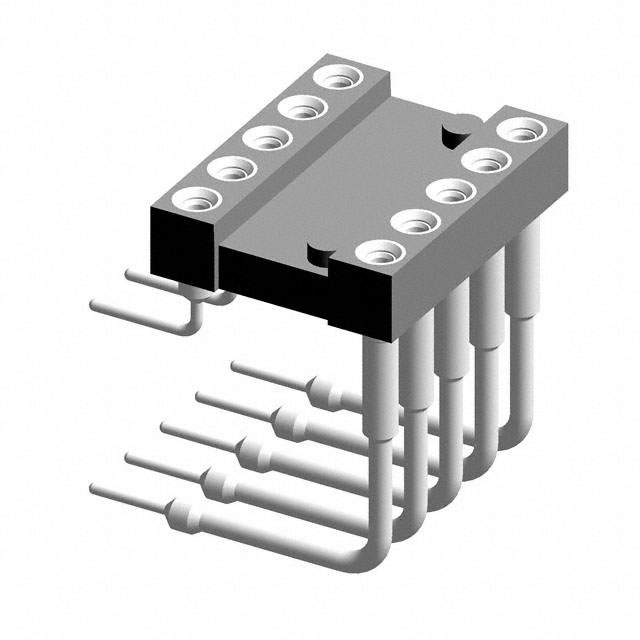

Preci-Dip 299-83-310-10-001101	10 mOhm	UL94 V-0	1 A	3.24 mm	0.128 in		10		Gold	Tin	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	Brass	Closed Frame	7.62 mm	0.3 in	DIP	29.5 µin	0.75 µm	0.1 in	2.54 mm	-55 C	125 °C	Beryllium Copper			2	5
