151-10 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

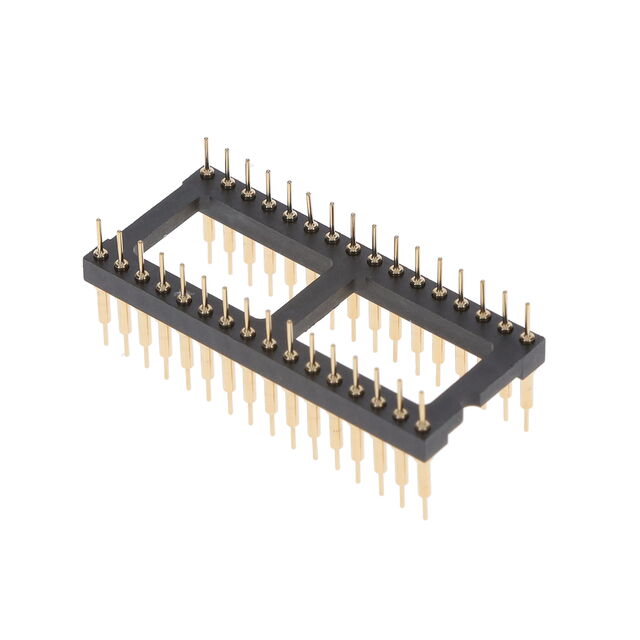

CONN HDR DIP POST 32POS GOLD

...

Part	Row Spacing	Row Spacing	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Type	Color	Pitch	Pitch	Termination	Contact Finish	Mounting Type	Number of Positions
Mill-Max Manufacturing Corp. 151-10-632-00-010000	0.6 in	15.24 mm	2	0.25 Ám	10 Áin	DIP DIL - Header	Post Extended	Black	0.1 "	2.54 mm	Solder	Gold	Through Hole
Mill-Max Manufacturing Corp. 151-10-210-00-010000	0.2 in	5.08 mm	2	0.25 Ám	10 Áin	DIP DIL - Header	Post Extended	Black	0.1 "	2.54 mm	Solder	Gold	Through Hole	10
Mill-Max Manufacturing Corp. 151-10-424-00-011000	0.4 in	10.16 mm	2	0.25 Ám	10 Áin	DIP DIL - Header	Post Extended	Black	0.1 "	2.54 mm	Solder	Gold	Through Hole	24
Mill-Max Manufacturing Corp. 151-10-952-00-010000	0.9 in	22.86 mm	2	0.25 Ám	10 Áin	DIP DIL - Header	Post Extended	Black	0.1 "	2.54 mm	Solder	Gold	Through Hole	52
Mill-Max Manufacturing Corp. 151-10-308-00-009000	0.3 in	7.62 mm	2	0.25 Ám	10 Áin	DIP DIL - Header	Post Extended	Black	0.1 "	2.54 mm	Solder	Gold	Through Hole	8
Mill-Max Manufacturing Corp. 151-10-322-00-005000	0.3 in	7.62 mm	2	0.25 Ám	10 Áin	DIP DIL - Header	Post Extended	Black	0.1 "	2.54 mm	Solder	Gold	Through Hole	22
Mill-Max Manufacturing Corp. 151-10-642-00-005000	0.6 in	15.24 mm	2	0.25 Ám	10 Áin	DIP DIL - Header	Post Extended	Black	0.1 "	2.54 mm	Solder	Gold	Through Hole	42
Mill-Max Manufacturing Corp. 151-10-320-00-010000	0.3 in	7.62 mm	2	0.25 Ám	10 Áin	DIP DIL - Header	Post Extended	Black	0.1 "	2.54 mm	Solder	Gold	Through Hole	20
Mill-Max Manufacturing Corp. 151-10-424-00-003000	0.4 in	10.16 mm	2	0.25 Ám	10 Áin	DIP DIL - Header	Post Extended	Black	0.1 "	2.54 mm	Solder	Gold	Through Hole	24
Mill-Max Manufacturing Corp. 151-10-314-00-009000	0.3 in	7.62 mm	2	0.25 Ám	10 Áin	DIP DIL - Header	Post Extended	Black	0.1 "	2.54 mm	Solder	Gold	Through Hole	14
