044516 Series

Manufacturer: Molex

Catalog

CONN RCPT HSG 6POS

Part	Connector Type	Contact Type	Note	Number of Positions	Insulation Material	Color	Row Spacing	Row Spacing	Number of Rows	Contact Termination	Features	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type
Molex 0445161003	Receptacle	Female Socket	Contacts Not Included	6
Molex 0445162003	Receptacle	Female Socket	Contacts Not Included	6	Nylon Polyamide (PA)	Black	4.2 mm	0.165 in	2	Crimp	Glow Wire Compliant	4.2 mm	0.165 in
Molex 0445160006	Receptacle	Female Socket	Contacts Not Included	12		Black	4.2 mm	0.165 in	2	Crimp		4.2 mm	0.165 in
Molex 0445160007	Receptacle	Female Socket	Contacts Not Included	14	Polyamide (PA66) Nylon 6/6	Black	4.2 mm	0.165 in	2	Crimp		4.2 mm	0.165 in	-40 °C	105 ░C

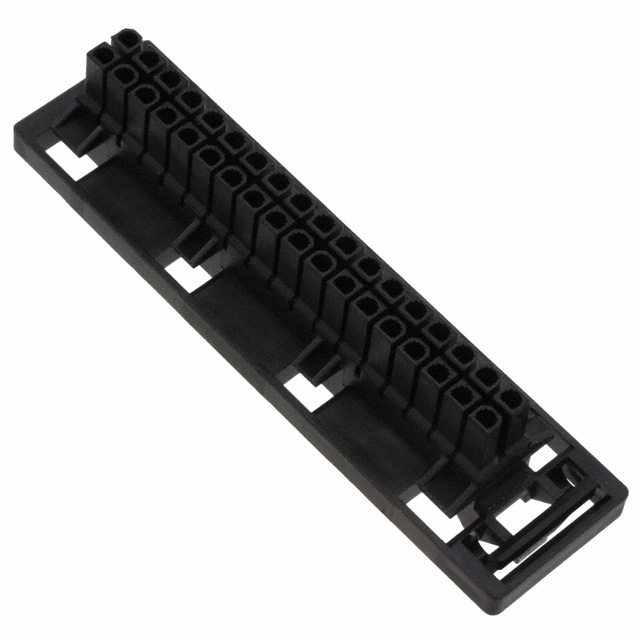

Molex 0445160013	Receptacle	Female Socket	Contacts Not Included	36	Polyamide (PA66) Nylon 6/6	Black	4.2 mm	0.165 in	2	Crimp		4.2 mm	0.165 in	-40 °C	105 ░C
Molex 0445161006	Receptacle	Female Socket	Contacts Not Included	12						Crimp

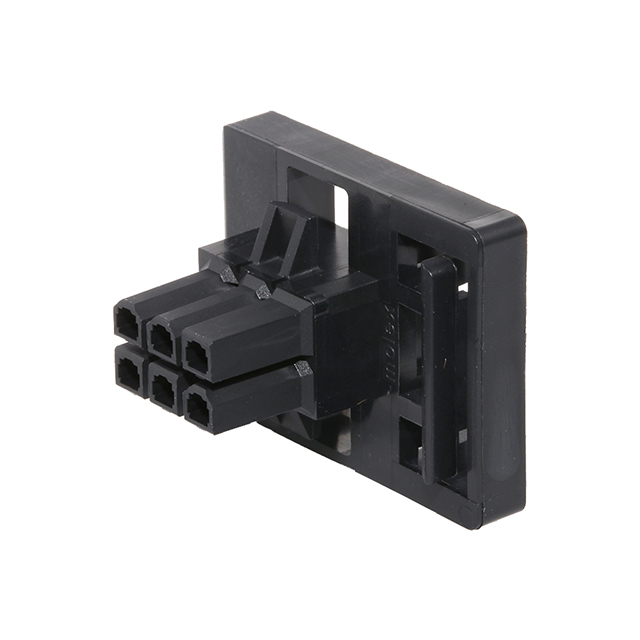

Molex 0445160003	Receptacle	Female Socket		6	Polyamide (PA66) Nylon 6/6	Black			2	Crimp	Polarized	4.2 mm	0.165 in	-40 °C	105 ░C	Locking Ramp

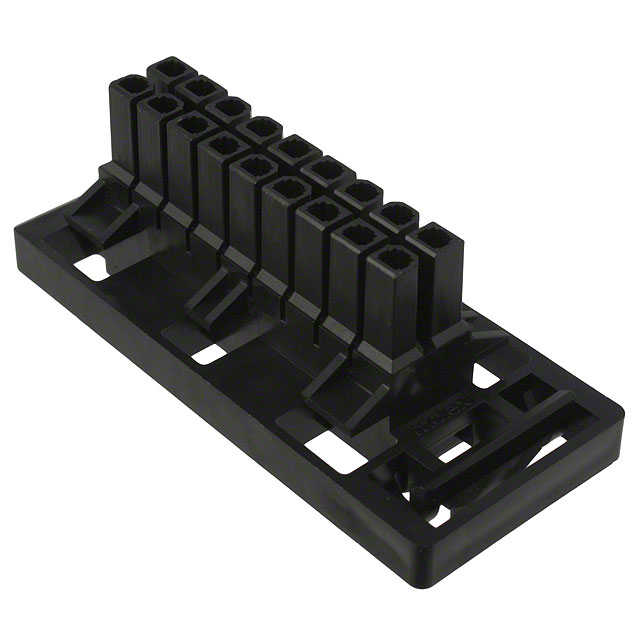

Molex 0445160009	Receptacle	Female Socket	Contacts Not Included	18	Polybutylene Terephthalate (PBT)	Black	4.2 mm	0.165 in	2	Crimp		4.2 mm	0.165 in
