APTM50 Series

Catalog

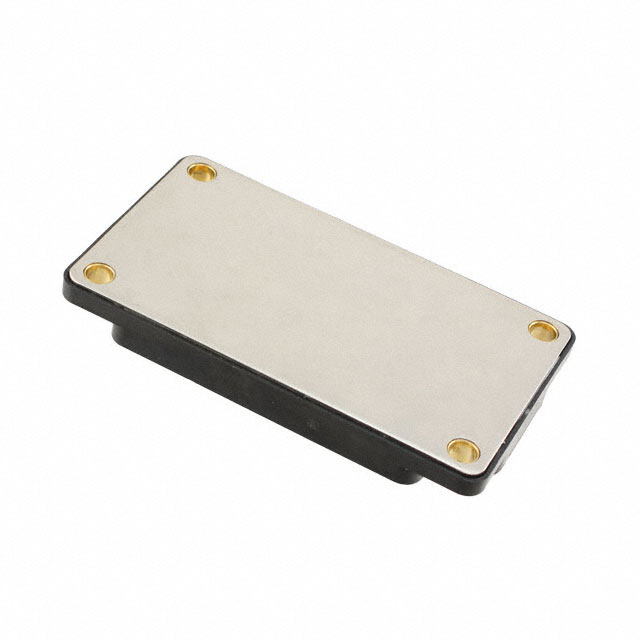

MOSFET 6N-CH 500V 51A SP6-P

Part	Package / Case	Vgs(th) (Max) @ Id	Technology	Supplier Device Package	Current - Continuous Drain (Id) @ 25°C	Mounting Type	Rds On (Max) @ Id, Vgs	Drain to Source Voltage (Vdss)	Power - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Input Capacitance (Ciss) (Max) @ Vds	Configuration	Gate Charge (Qg) (Max) @ Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds [Max]
Microsemi Corporation APTM50TDUM65PG	SP6	5 V	MOSFET (Metal Oxide)	SP6-P	51 A	Chassis Mount	78 mOhm	500 V	390 W	-40 °C	150 °C	7000 pF	6 N-Channel (3-Phase Bridge)	140 nC
Microsemi Corporation APTM50DHM35G	SP6	5 V	MOSFET (Metal Oxide)	SP6	99 A	Chassis Mount	39 mOhm	500 V	781 W	-40 °C	150 °C		2 N-Channel (Dual) Asymmetrical	280 nC	14000 pF
Microsemi Corporation APTM50AM70FT1G	SP1	5 V	MOSFET (Metal Oxide)	SP1	50 A	Chassis Mount	84 mOhm	500 V	390 W	-40 °C	150 °C		2 N-Channel	340 nC	10800 pF
Microsemi Corporation APTM50DHM65T3G	SP3	5 V	MOSFET (Metal Oxide)	SP3	51 A	Chassis Mount	78 mOhm	500 V	390 W	-40 °C	150 °C		2 N-Channel (Dual) Asymmetrical	340 nC	10800 pF
Microsemi Corporation APTM50AM19STG	SP4	5 V	Silicon Carbide (SiC)	SP4	170 A	Chassis Mount		500 V	1250 W	-40 °C	150 °C		2 N-Channel	492 nC	22400 pF
