SSI-LXH312 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

T3MM PNL IND, 590NM ALINGAP YLW

Part	Lens Color	Lamp Color	Panel Cutout Dimensions	Panel Cutout Dimensions	Millicandela Rating	Lens Style	Termination Style	Lens Size	Lens Size	Type	Lens Transparency	Voltage	Viewing Angle	Wavelength - Peak	Current	Panel Cutout Shape	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Termination Style	Termination Style
Lumex Opto/Components Inc. SSI-LXH312SYD-150	Yellow	Yellow	4.42 mm	0.17 in	100 mcd	Round with Domed Top	Wire Leads - 6.000" (152.40mm)	3 mm	T-1	LED	Diffused	2 V	60 °	590 nm	30 mA	Round
Lumex Opto/Components Inc. SSI-LXH312ID-300	Red	Red	4.42 mm	0.17 in	30 mcd	Round with Domed Top	Wire Leads - 12" (304.80mm)	3 mm	T-1	LED	Diffused	2 V	60 °	635 nm	30 mA	Round
Lumex Opto/Components Inc. SSI-LXH312YD-150	Yellow	Yellow			30 mcd	Round with Domed Top		3 mm	T-1	LED	Diffused	2.1 V	60 °	585 nm	30 mA	Round	4.32 mm	0.17 in

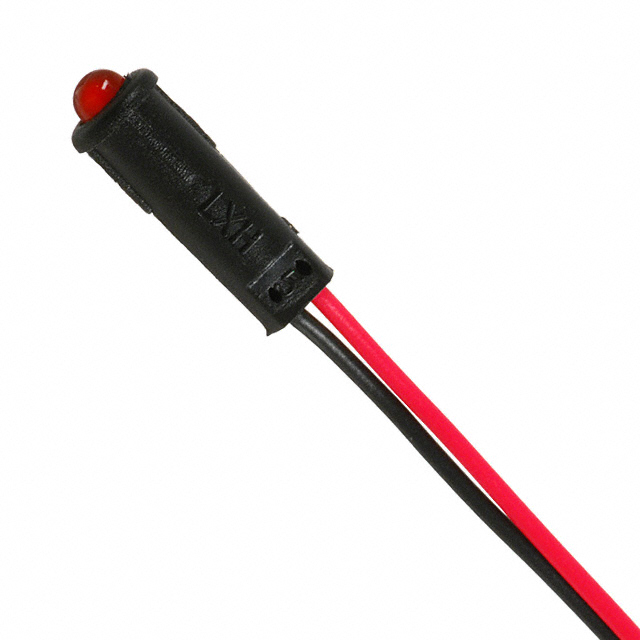

Lumex Opto/Components Inc. SSI-LXH312ID-150	Red	Red			30 mcd	Round with Domed Top		3 mm	T-1	LED	Diffused	2 V	60 °	635 nm	30 mA	Round	4.32 mm	0.17 in

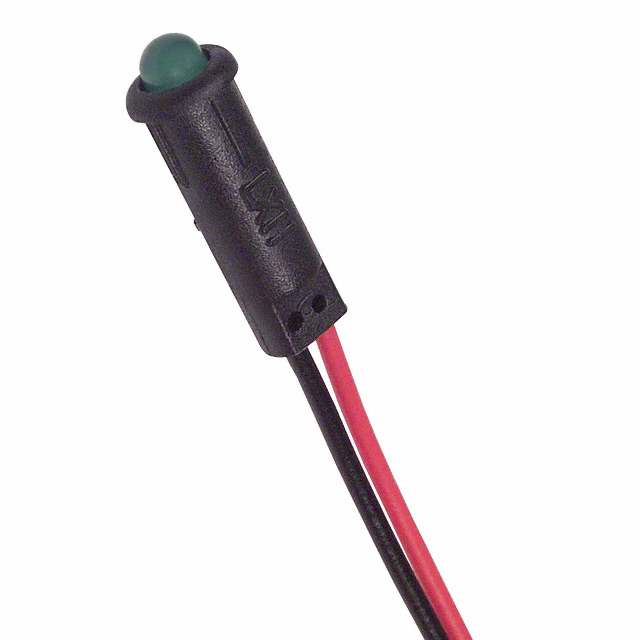

Lumex Opto/Components Inc. SSI-LXH312GD-150	Green	Green			30 mcd	Round with Domed Top		3 mm	T-1	LED	Diffused	2.1 V	60 °	565 nm	25 mA	Round	4.32 mm	0.17 in

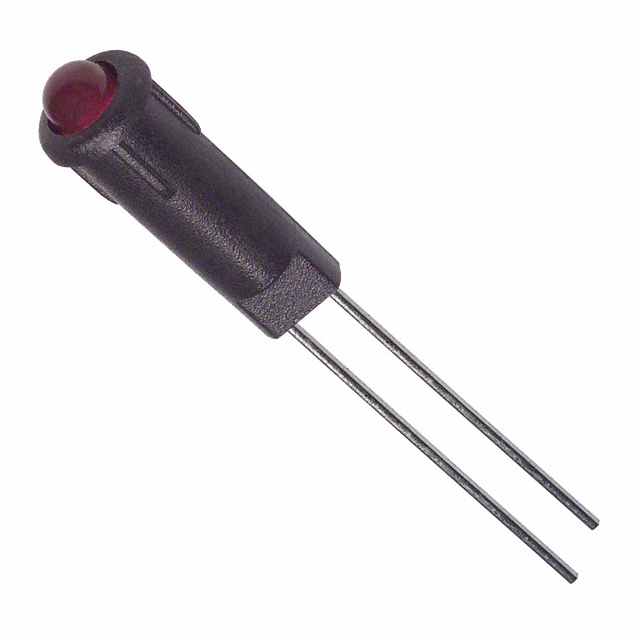

Lumex Opto/Components Inc. SSI-LXH312ID	Red	Red			30 mcd	Round with Domed Top	PC Pin	3 mm	T-1	LED	Diffused	2 V	60 °	635 nm	30 mA	Round	4.32 mm	0.17 in
Lumex Opto/Components Inc. SSI-LXH312GD-250	Green	Green			30 mcd	Round with Domed Top	Wire Leads	3 mm	T-1	LED	Diffused	2.2 V	60 °	565 nm	20 mA	Round	4.32 mm	0.17 in	251.46 mm	9.9 in
Lumex Opto/Components Inc. SSI-LXH312USBD-150	Blue	Blue	8.13 mm	0.32 "	60 mcd	Round with Domed Top		3 mm	T-1	LED	Diffused	3.5 V	60 °	470 nm	20 mA	Round
Lumex Opto/Components Inc. SSI-LXH312GD-430	Green	Green			30 mcd	Round with Domed Top	Wire Leads	3 mm	T-1	LED	Diffused	2.1 V	60 °	565 nm	20 mA	Round	4.32 mm	0.17 in
