2232960 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

4P POTTED RAST 2.5 HEADER

Part	Contact Length - Post [x]	Contact Length - Post	Style	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Shape	Insulation Height	Insulation Height	Insulation Material	Connector Type	Shrouding	Number of Rows	Contact Type	Termination	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Number of Positions	Insulation Color	Voltage Rating	Contact Finish - Post	Mounting Type	Number of Positions Loaded	Features	Material Flammability Rating	Contact Material

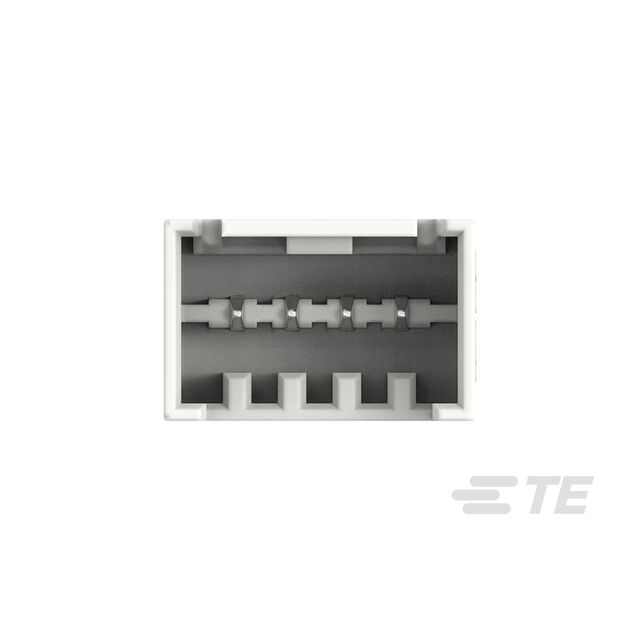

TE Connectivity Raychem Cable Protection 4-2232960-4	0.11 in	2.79 mm	Board to Cable/Wire	-40 °C	120 °C	Locking Ramp	Rectangular	0.61 in	15.49 mm	Nylon Polyamide (PA)	Header	Shrouded - 4 Wall	1	Tab	Solder	2 A	2.5 mm	0.098 in	4	Natural	50 VAC	Tin	Through Hole	All	Board Guide Glow Wire Compliant	UL94 V-0	Copper Alloy
TE Connectivity Raychem Cable Protection 2-2232960-9	0.11 in	2.79 mm	Board to Cable/Wire	-40 °C	120 °C	Locking Ramp	Rectangular	0.61 in	15.49 mm	Nylon Polyamide (PA)	Header	Shrouded - 4 Wall	1	Tab	Solder	2 A	2.5 mm	0.098 in	9	Natural	50 VAC	Tin	Through Hole	All	Board Guide Glow Wire Compliant	UL94 V-0	Copper Alloy
TE Connectivity Raychem Cable Protection 2-2232960-3	0.11 in	2.79 mm	Board to Cable/Wire	-40 °C	120 °C	Locking Ramp	Rectangular	0.61 in	15.49 mm	Nylon Polyamide (PA)	Header	Shrouded - 4 Wall	1	Tab	Solder	2 A	2.5 mm	0.098 in		Black	50 VAC	Tin	Through Hole	All	Board Guide Glow Wire Compliant	UL94 V-0	Copper Alloy
TE Connectivity Raychem Cable Protection 1-2232960-5	0.11 in	2.79 mm	Board to Cable/Wire	-40 °C	120 °C	Locking Ramp	Rectangular	0.61 in	15.49 mm	Nylon Polyamide (PA)	Header	Shrouded - 4 Wall	1	Tab	Solder	2 A	2.5 mm	0.098 in		Natural	50 VAC	Tin	Through Hole	All	Board Guide Glow Wire Compliant	UL94 V-0	Copper Alloy
