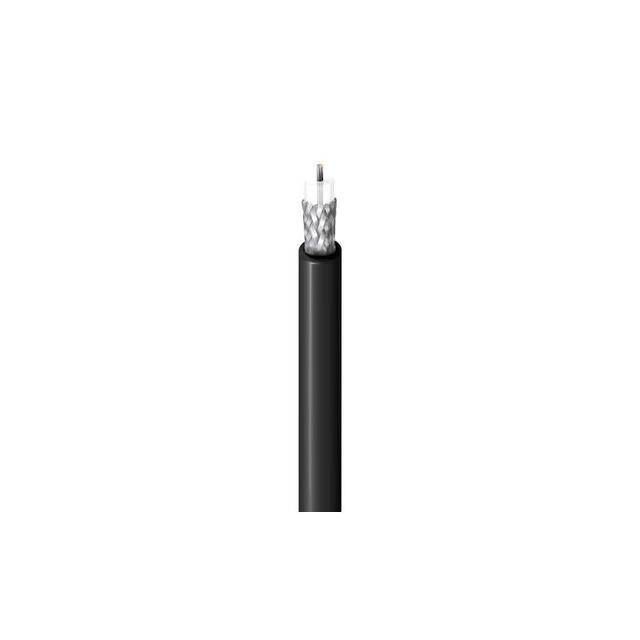

8262 Series
Manufacturer: Belden Inc.
Beta
⌘K
M17/155-00001 COAX
| Part | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Material | Conductor Material | Shield Coverage | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Cable Group | Length [x] | Length [x] | Cable Type | Shield Type | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 66 | 0.115 in | 2.92 mm | Copper Bare | Copper Tinned | 95 % | 85 °C | -40 C | 20 AWG | 19 | 33 AWG | Poly-Vinyl Chloride (PVC) | 0.195 " | 4.95 mm | Black | RG-58 | 304.8 m | 1000 ft | Coaxial | Braid | |
 Belden Inc. | 66 | 0.115 in | 2.92 mm | Copper Tinned | Copper Tinned | 95 % | 85 °C | -40 C | 20 AWG | 19 | 33 AWG | Non Contaminating Poly-Vinyl Chloride (PVC) | 0.195 " | 4.95 mm | Black | 304.8 m | 1000 ft | Coaxial | Braid | 50 Ohms |
