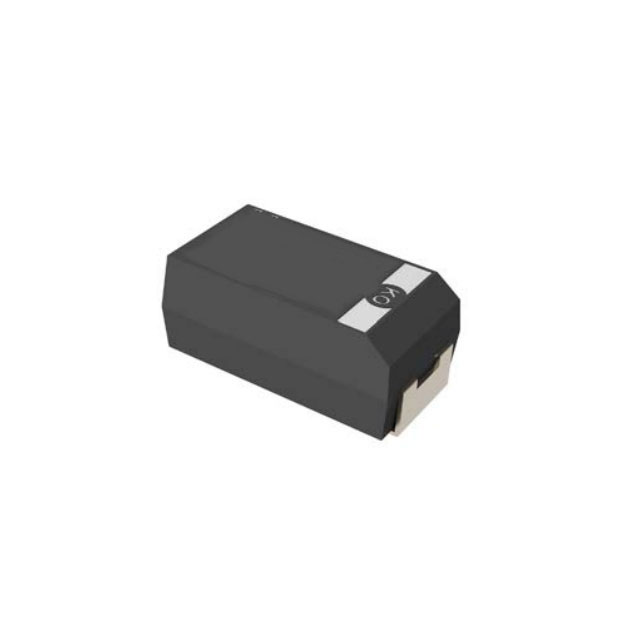

T520A Series

Manufacturer: KEMET

Catalog

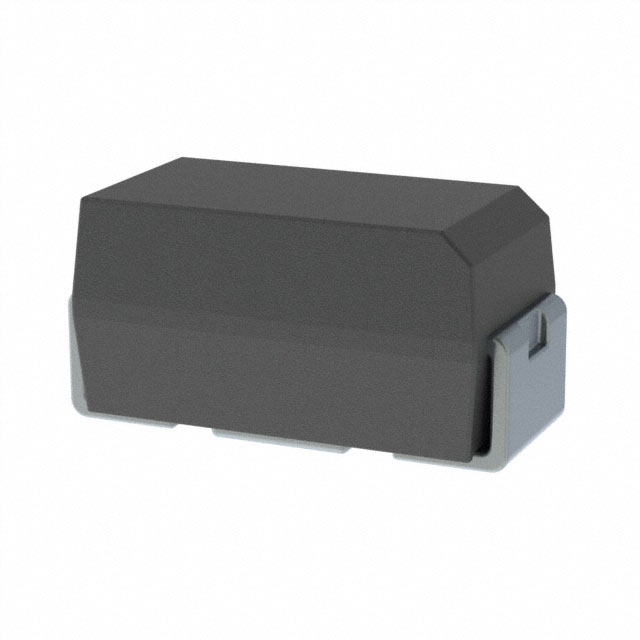

CAP TANT POLY 100UF 4V 1206

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Manufacturer Size Code	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	ESR (Equivalent Series Resistance)	Mounting Type	Lifetime @ Temp.	Package / Case	Type	Features
KEMET T520A107M004ATE150	0.063 "	0.126 "	3.2 mm	1.6 mm	4 V	1.8 mm	0.071 in	A	20 %	-55 C	105 ░C	100 µF	150 mOhm	Surface Mount	2000 Hrs	1206 (3216 Metric)	Molded	General Purpose
KEMET T520A106M010ATE080	0.063 "	0.126 "	3.2 mm	1.6 mm	10 V	1.8 mm	0.071 in	A	20 %	-55 C	105 ░C	10 µF	80 mOhm	Surface Mount	2000 Hrs	1206 (3216 Metric)	Molded	General Purpose
KEMET T520A156M010AHE080
KEMET T520A476M006ATE150	0.063 "	0.126 "	3.2 mm	1.6 mm	6.3 VDC	1.8 mm	0.071 in	A	20 %	-55 C	105 ░C	47 µF	150 mOhm	Surface Mount	2000 Hrs	1206 (3216 Metric)	Molded	General Purpose
KEMET T520A686M006ATE150	0.063 "	0.126 "	3.2 mm	1.6 mm	6.3 VDC	1.8 mm	0.071 in	A	20 %	-55 C	105 ░C	68 µF	150 mOhm	Surface Mount	2000 Hrs	1206 (3216 Metric)	Molded	General Purpose
KEMET T520A476M004ATE080	0.063 "	0.126 "	3.2 mm	1.6 mm	4 V	1.8 mm	0.071 in	A	20 %	-55 C	105 ░C	47 µF	80 mOhm	Surface Mount	2000 Hrs	1206 (3216 Metric)	Molded	General Purpose
KEMET T520A107M006ATE025	0.063 "	0.126 "	3.2 mm	1.6 mm	6.3 VDC	1.8 mm	0.071 in	A	20 %	-55 C	105 ░C	100 µF	25 mOhm	Surface Mount	2000 Hrs	1206 (3216 Metric)	Molded	General Purpose
KEMET T520A686M2R5ATE070	0.063 "	0.126 "	3.2 mm	1.6 mm	2.5 V	1.8 mm	0.071 in	A	20 %	-55 C	105 ░C	68 µF	70 mOhm	Surface Mount	2000 Hrs	1206 (3216 Metric)	Molded	General Purpose
KEMET T520A336M006ATE070	0.063 "	0.126 "	3.2 mm	1.6 mm	6.3 VDC	1.8 mm	0.071 in	A	20 %	-55 C	105 ░C	33 ÁF	70 mOhm	Surface Mount	2000 Hrs	1206 (3216 Metric)	Molded	General Purpose
KEMET T520A227M2R5ATE035	0.063 "	0.126 "	3.2 mm	1.6 mm	2.5 V	1.8 mm	0.071 in	A	20 %	-55 C	105 ░C	220 µF	35 mOhm	Surface Mount	2000 Hrs	1206 (3216 Metric)	Molded	General Purpose
