M80-836 Series

Catalog

2 POS. MALE SIL HORIZONTAL SMT CONN. LATCHES ROHS COMPLIANT: NO

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Number of Positions Loaded	Insulation Material	Number of Rows	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Insulation Color	Shrouding	Mounting Type	Style	Current Rating (Amps)	Insulation Height [z]	Insulation Height [z]	Voltage Rating	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish - Post	Material Flammability Rating	Termination	Contact Shape	Contact Finish - Mating	Contact Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Type	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mated Stacking Heights [z]	Insulation Height	Insulation Height

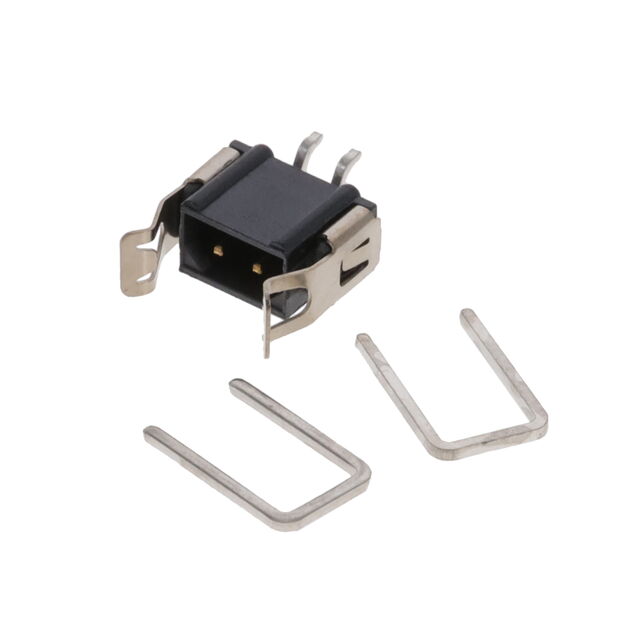

Harwin Inc. M80-8360222	118.1 µin	3 µm	All	Polyphenylene Sulfide (PPS) Glass Filled	1	29.5 µin	0.75 µm	Black	Shrouded - 4 Wall	Right Angle Surface Mount	Board to Board Cable	2.2 A	4 mm	0.157 in	800 V	0.079 "	2 mm	2	Tin-Lead	UL94 V-0	Solder	Circular	Gold	Brass	Header	-55 C	125 °C	Latch Lock	Male Pin	Strain Relief Clips
Harwin Inc. M80-8360422			All	Polyphenylene Sulfide (PPS) Glass Filled	1	29.5 µin	0.75 µm	Black	Shrouded - 4 Wall	Surface Mount	Board to Board Cable	2.2 A			800 VAC	0.079 "	2 mm	4	Tin-Lead	UL94 V-0	Solder	Circular	Gold	Brass	Header	-55 C	125 °C	Latch Lock	Male Pin	Strain Relief Clips	12 µin	0.3 µm	7.93 mm 8.53 mm	5.2 mm	0.205 "
