51-463 Series
Manufacturer: EAO
Beta
⌘K

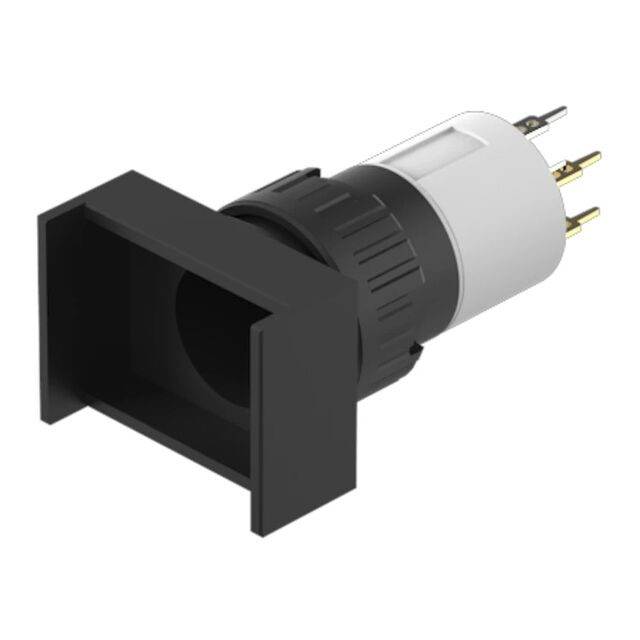

SWITCH PB DPST-NO/NC 0.1A 42V
| Part | Mechanical Life | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Current Rating (Amps) | Voltage Rating - AC | Panel Cutout Dimensions [diameter] | Termination Style | Voltage Rating - DC | Circuit | Mounting Type | Switch Function | Actuator Marking | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EAO | 1000000 Cycles | IP65 - Dust Tight Water Resistant | 55 °C | -25 °C | Button Rectangular | 100 mA | 42 V | 16 mm | PC Pin Solder Lug | 42 V | DPST-NO/NC | Panel Mount Front | Off-On On-Off | No Marking | Standard |
