1544227 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

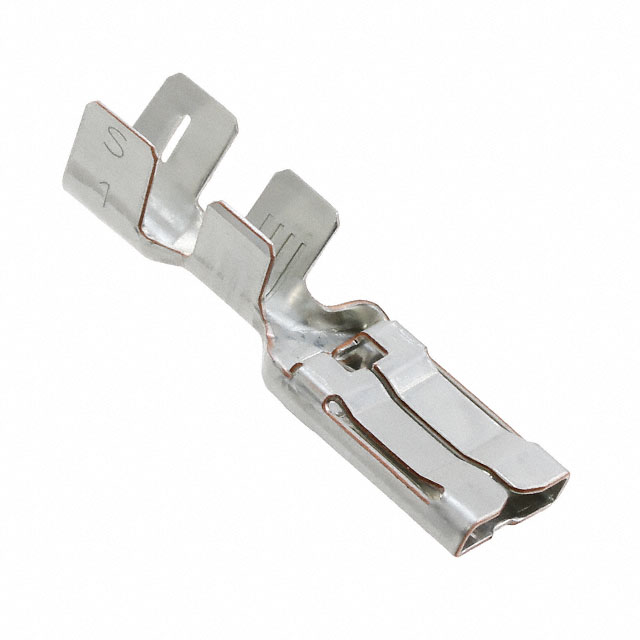

CONN QC RCPT 10-12AWG 0.315
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Mounting Type | Tab Width | Tab Width | Termination | Tab Thickness | Tab Thickness | Tab Length | Tab Length | Length - Overall [x] | Length - Overall [x] | Terminal Type | Contact Material | Insulation | Contact Finish | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 12 AWG | 10 AWG | 0.244 in | 6.2 mm | Free Hanging (In-Line) | 8 mm | 0.315 in | Crimp | 0.039 in | 0.99 mm | 11 mm | 0.433 in | 30 mm | 1.181 in | Standard | Copper Alloy | Non-Insulated | Tin | Female |
