S833 Series

Catalog

TOGGLE SWITCH, ON-OFF-ON, 3PDT, NON ILLUMINATED, S SERIES, PANEL MOUNT, 30 A

Part	Electrical Life	Actuator Material	Circuit	Termination Style	Actuator Length [x]	Bushing Thread	Voltage Rating - AC	Illumination	Actuator Type	Current Rating (Amps)	Switch Function	Mounting Type	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]

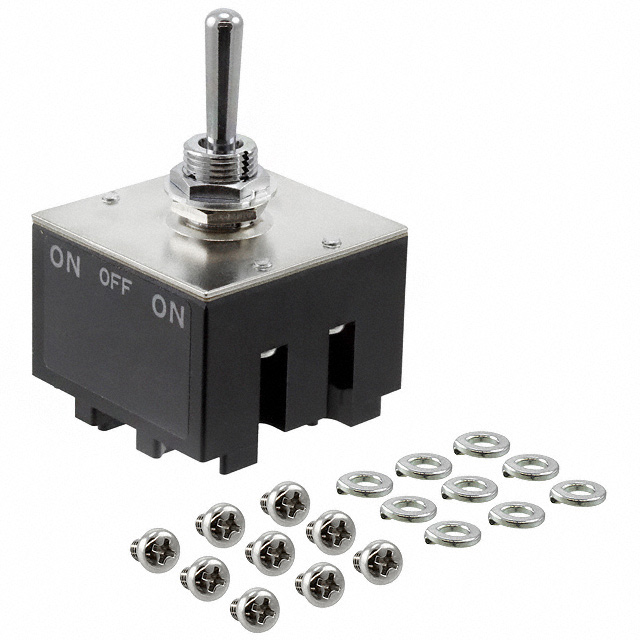

NKK Switches S833/CUL	25000 Steps	Brass Chrome Plated	3PDT	Screw Terminal	22 mm	M12 x 1	125 V	Non-Illuminated	Standard Round	30 A	On-Off-On	Panel Mount	30 V	70 °C	-10 °C	12.5 mm
NKK Switches S833/U-AT401H	25000 Steps	Brass Chrome Plated	3PDT	Screw Terminal	22 mm	M12 x 1	125 V	Non-Illuminated	Standard Round	30 A	On-Off-On	Panel Mount	30 V	70 °C	-10 °C	12.5 mm
NKK Switches S833/CUL-AT401A	25000 Steps	Brass Chrome Plated	3PDT	Screw Terminal	22 mm	M12 x 1	125 V	Non-Illuminated	Standard Round	30 A	On-Off-On	Panel Mount	30 V	70 °C	-10 °C	12.5 mm
