RFAASMA Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
RF / COAXIAL ADAPTER, SMA, PLUG, SMA, PLUG, STRAIGHT ADAPTER, 50 OHM
| Part | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Material | Body Material | Dielectric Material | Convert From (Adapter End) | Style | Impedance | Mounting Type | Convert To (Adapter End) | Adapter Type | Frequency - Max [Max] | Conversion Type | Center Gender | Adapter Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | 500 | -65 ░C | 165 °C | Beryllium Copper | Stainless Steel | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Male Pin SMA Plug | Straight | 50 Ohms | Free Hanging (In-Line) | N Jack Female Socket | Plug to Jack | 26.5 GHz | Between Series | ||
 BULGIN LIMITED | 500 | -65 ░C | 165 °C | Beryllium Copper | Stainless Steel | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Male Pin SMA Plug | Straight | 50 Ohms | Free Hanging (In-Line) | N Plug Male Pin | Plug to Plug | 26.5 GHz | Between Series | Male to Male | |
BULGIN LIMITED | 500 | -65 ░C | 165 °C | Beryllium Copper | Stainless Steel | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Male Pin SMA Plug | Straight | 50 Ohms | Free Hanging (In-Line) | SMA Plug Male Pin | Plug to Plug | 26.5 GHz | Same Series | Male to Male | SMA to SMA |

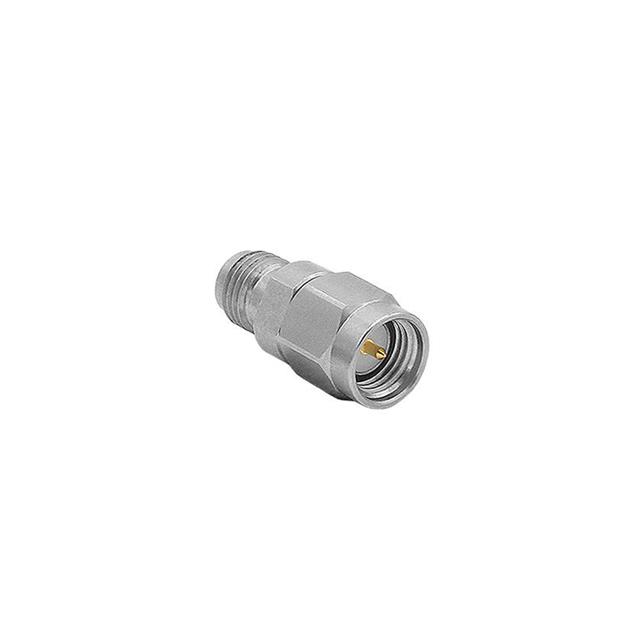

 BULGIN LIMITED | 500 | -65 ░C | 165 °C | Beryllium Copper | Stainless Steel | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Male Pin SMA Plug | Straight | 50 Ohms | Free Hanging (In-Line) | SMA Jack Female Socket | Plug to Jack | 26.5 GHz | Same Series | SMA to SMA | |

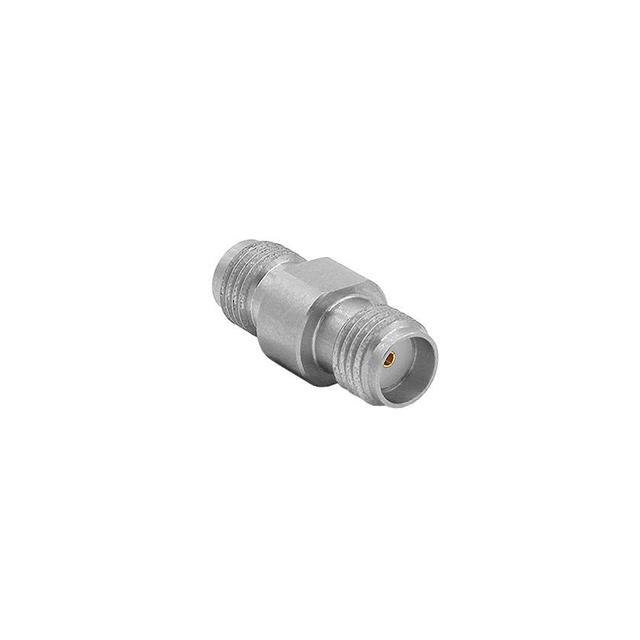

BULGIN LIMITED | 500 | -65 ░C | 165 °C | Beryllium Copper | Stainless Steel | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Female Socket SMA Jack | Straight | 50 Ohms | Free Hanging (In-Line) | SMA Jack Female Socket | Jack to Jack | 26.5 GHz | Same Series | Female to Female | SMA to SMA |
 BULGIN LIMITED | 500 | -65 ░C | 165 °C | Beryllium Copper | Stainless Steel | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Female Socket SMA Jack | Straight | 50 Ohms | Free Hanging (In-Line) | N Plug Male Pin | Plug to Jack | 26.5 GHz | Between Series | ||
BULGIN LIMITED | 500 | -65 ░C | 165 °C | Beryllium Copper | Stainless Steel | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Female Socket SMA Jack | Straight | 50 Ohms | Free Hanging (In-Line) | N Jack Female Socket | Jack to Jack | 26.5 GHz | Between Series | Female to Female |
