151-03 Series

Catalog

RATCHET P-CLAMP, 2.48" - 3.15" B

Part	Screw Size	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Panel Hole Size	Panel Hole Size	Length [x]	Length [x]	Color	Type Attributes	Type Attributes	Opening Size [Min]	Opening Size [Max]	Material Flammability Rating	Material	Type	Mounting Type	Width	Width	Features	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Width [x]	Width [x]	Height	Height	Accessory Type	For Use With/Related Products

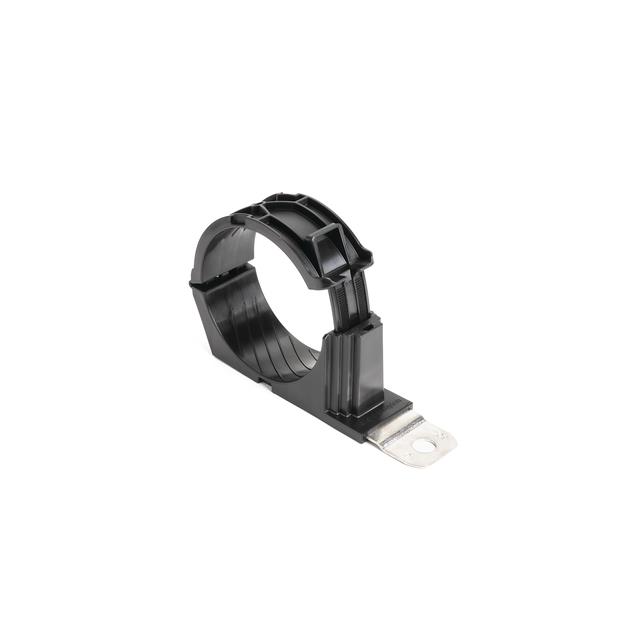

HELLERMANNTYTON 151-03123	M10	87.89 mm	3.46 in	10.29 mm	0.405 in	147.83 mm	5.82 in	Black	Ratchet Ribbed	180 °	2.48 in 62.99 mm	3.15 in 80.01 mm	UL94 HB	Nylon 6/6 Polyamide (PA66) Steel	Clamp P-Type	Fastener	34.8 mm	1.37 "	Heat Stabilized Impact Modified UV Stabilized

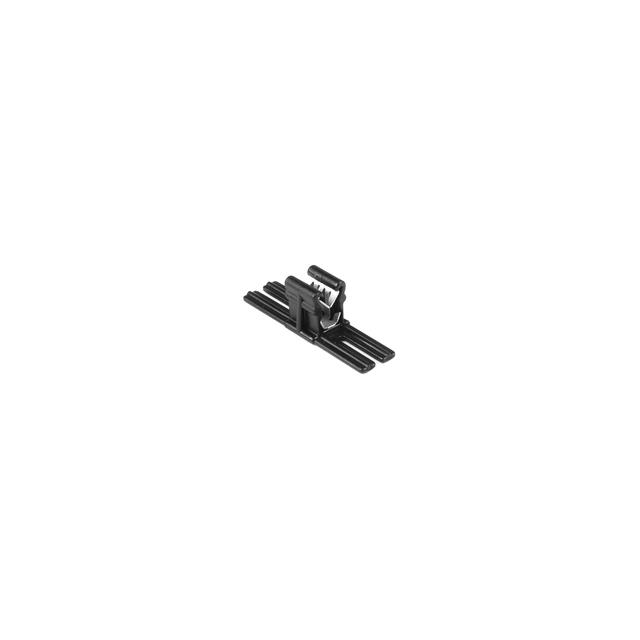

HELLERMANNTYTON 151-03404								Black					UL94 HB	Polyamide (PA66) Nylon 6/6	Clip Bundling	Clip On Edge Mount			Heat Stabilized Impact Resistant UV Resistant	3 mm	0.118 in	0.039 "	0.99 mm	10 mm	0.394 "	12.4 mm	0.488 in

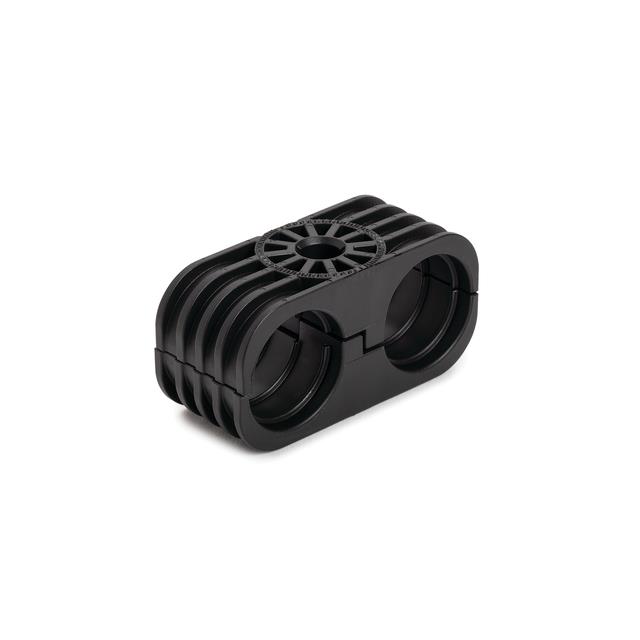

HELLERMANNTYTON 151-03253														Polyamide (PA66) Nylon 6/6 Glass Filled					2 Holes									Separator	Convoluted Loom Tubing
HELLERMANNTYTON 151-03124	M12	87.89 mm	3.46 in	12.95 mm	0.51 in	147.83 mm	5.82 in	Black	Ratchet Ribbed	180 °	2.48 in 62.99 mm	3.15 in 80.01 mm	UL94 HB	Nylon 6/6 Polyamide (PA66) Steel	Clamp P-Type	Fastener	34.8 mm	1.37 "	Heat Stabilized Impact Modified UV Stabilized

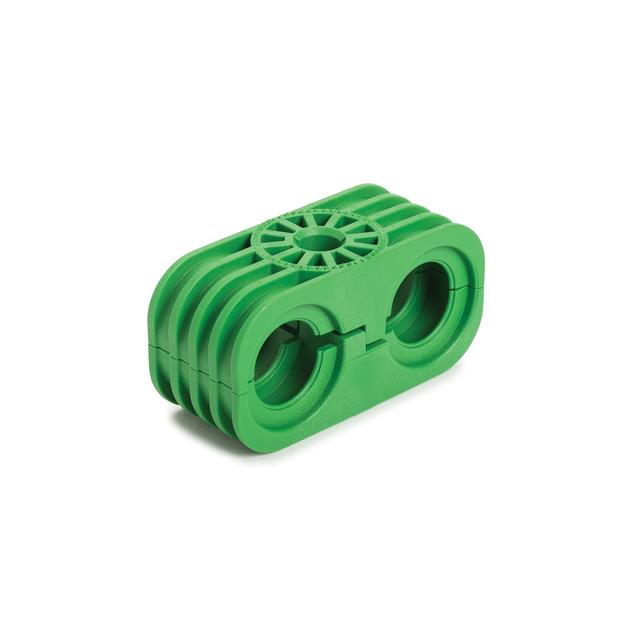

HELLERMANNTYTON 151-03254														Polyamide (PA66) Nylon 6/6 Glass Filled					2 Holes									Separator	Convoluted Loom Tubing
HELLERMANNTYTON 151-03122	M8	87.89 mm	3.46 in	8.31 mm	0.327 in	147.83 mm	5.82 in	Black	Ratchet Ribbed	180 °	2.48 in 62.99 mm	3.15 in 80.01 mm	UL94 HB	Nylon 6/6 Polyamide (PA66) Steel	Clamp P-Type	Fastener	34.8 mm	1.37 "	Heat Stabilized Impact Modified UV Stabilized

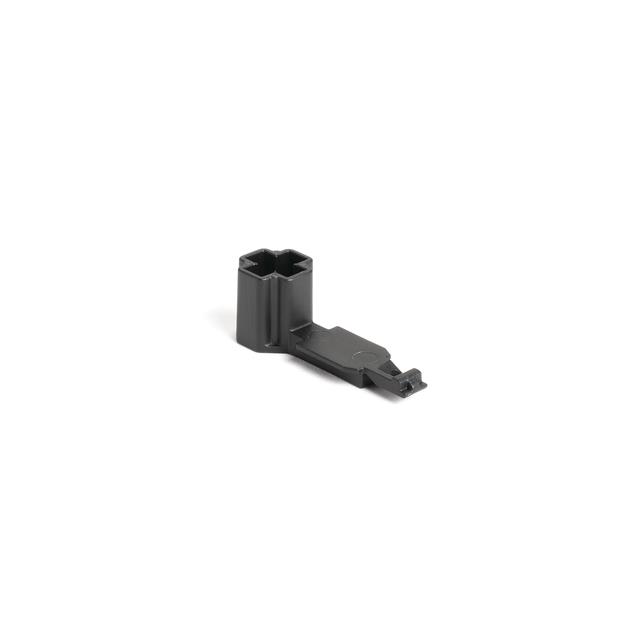

HELLERMANNTYTON 151-03402								Black		90 °			UL94 HB	Polyamide (PA66) Nylon 6/6	Clip Bundling	Clip On Edge Mount			Heat Stabilized Impact Resistant UV Resistant	3 mm	0.118 in	0.039 "	0.99 mm	10 mm	0.394 "	13 mm	0.512 in
HELLERMANNTYTON 151-03203	M6	87.89 mm	3.46 in	6.5 mm	0.256 in	147.83 mm	5.82 in	Black	Ratchet Ribbed	180 °	2.48 in 62.99 mm	3.15 in 80.01 mm	UL94 HB	Nylon 6/6 Polyamide (PA66) Steel	Clamp P-Type	Fastener	34.8 mm	1.37 "	Heat Stabilized Impact Modified UV Stabilized

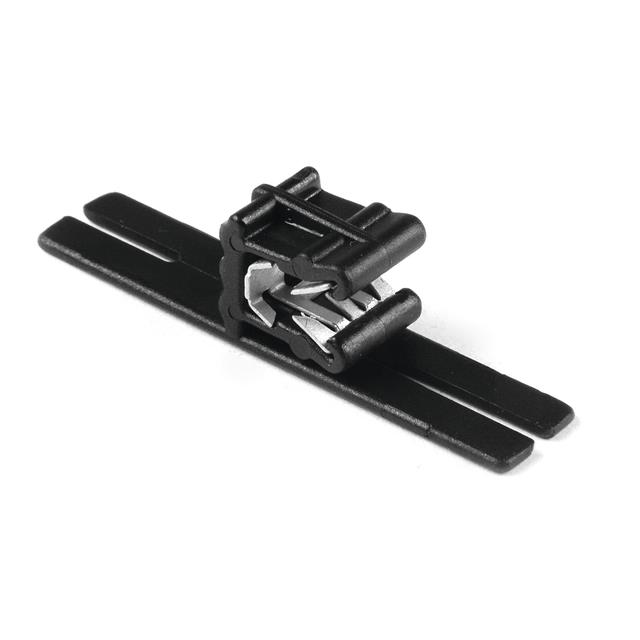

HELLERMANNTYTON 151-03403						46.5 mm	1.831 in	Black		90 °			UL94 HB	Polyamide (PA66) Nylon 6/6	Clip Bundling	Clip On Edge Mount			Heat Stabilized Impact Resistant UV Resistant	3 mm	0.118 in	0.039 "	0.99 mm	10 mm	0.394 "	13 mm	0.512 in

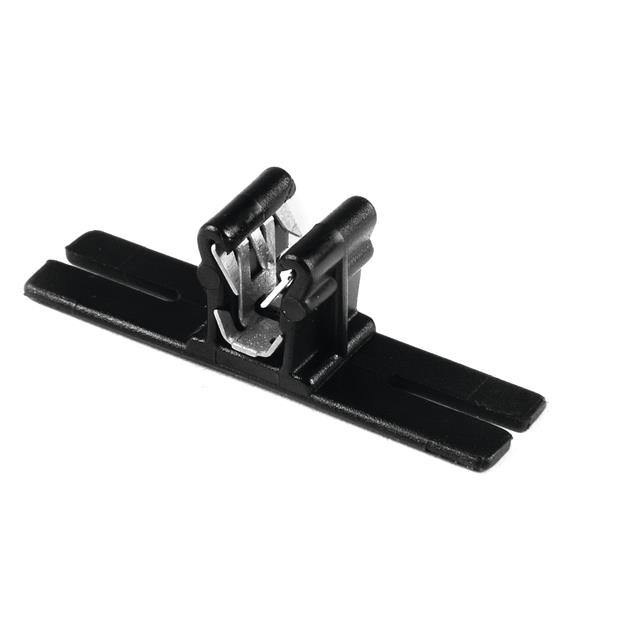

HELLERMANNTYTON 151-03401								Black					UL94 HB	Polyamide (PA66) Nylon 6/6	Clip Bundling	Clip On Edge Mount			Heat Stabilized Impact Resistant UV Resistant	3 mm	0.118 in	0.039 "	0.99 mm	10 mm	0.394 "	12.4 mm	0.488 in
