1586044 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
10P VAL-U-LOK R/A HDR SCRMT V0
| Part | Insulation Color | Row Spacing - Mating | Row Spacing - Mating | Insulation Height | Insulation Height | Applications | Insulation Material | Number of Positions Loaded | Contact Type | Features | Current Rating (Amps) | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Style | Contact Shape | Voltage Rating | Number of Rows | Pitch - Mating | Pitch - Mating | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Contact Finish - Post | Connector Type | Number of Positions | Mounting Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

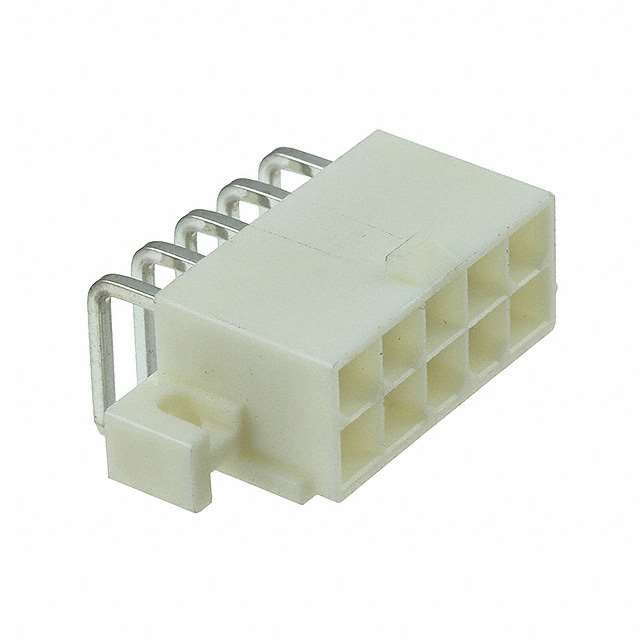

 TE Connectivity Raychem Cable Protection | Natural | 4.2 mm | 0.165 in | 9.8 mm | 0.386 in | General Purpose Industrial Lighting | Nylon Polyamide (PA) | All | Male Pin | Mounting Flange | 9 A | 3.6 mm | 0.142 in | UL94 V-0 | -40 °C | 105 ░C | Shrouded - 4 Wall | 2.03 µm | 80 µin | Board to Cable/Wire | Square | 600 VAC | 2 | 4.2 mm | 0.165 in | Locking Ramp | 2.03 µm | 80 µin | Solder | Tin | Header | 10 | Through Hole Right Angle | Brass Alloy |

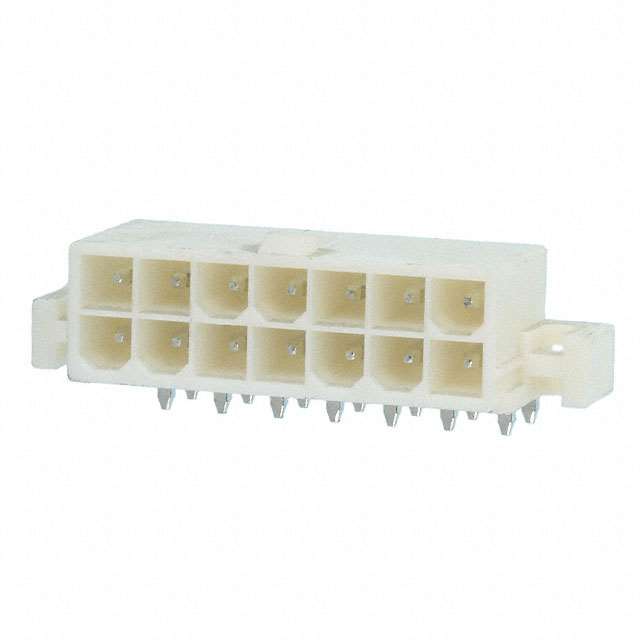

 TE Connectivity Raychem Cable Protection | Natural | 4.2 mm | 0.165 in | 9.8 mm | 0.386 in | General Purpose Industrial Lighting | Nylon Polyamide (PA) | All | Male Pin | Mounting Flange | 9 A | 3.6 mm | 0.142 in | UL94 V-0 | -40 °C | 105 ░C | Shrouded - 4 Wall | 2.03 µm | 80 µin | Board to Cable/Wire | Square | 600 VAC | 2 | 4.2 mm | 0.165 in | Locking Ramp | 2.03 µm | 80 µin | Solder | Tin | Header | 14 | Through Hole Right Angle | Brass Alloy |

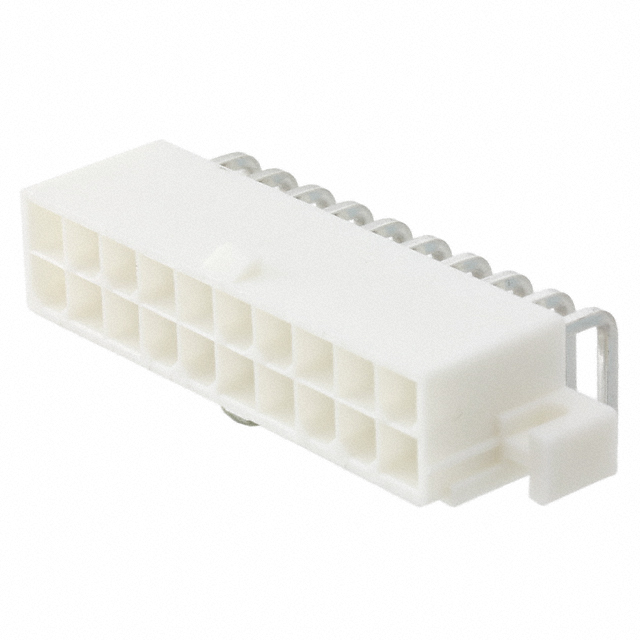

 TE Connectivity Raychem Cable Protection | Natural | 4.2 mm | 0.165 in | 9.8 mm | 0.386 in | General Purpose Industrial Lighting | Nylon Polyamide (PA) | All | Male Pin | Mounting Flange | 9 A | 3.6 mm | 0.142 in | UL94 V-0 | -40 °C | 105 ░C | Shrouded - 4 Wall | 2.03 µm | 80 µin | Board to Cable/Wire | Square | 600 VAC | 2 | 4.2 mm | 0.165 in | Locking Ramp | 2.03 µm | 80 µin | Solder | Tin | Header | 20 | Through Hole Right Angle | Brass Alloy |

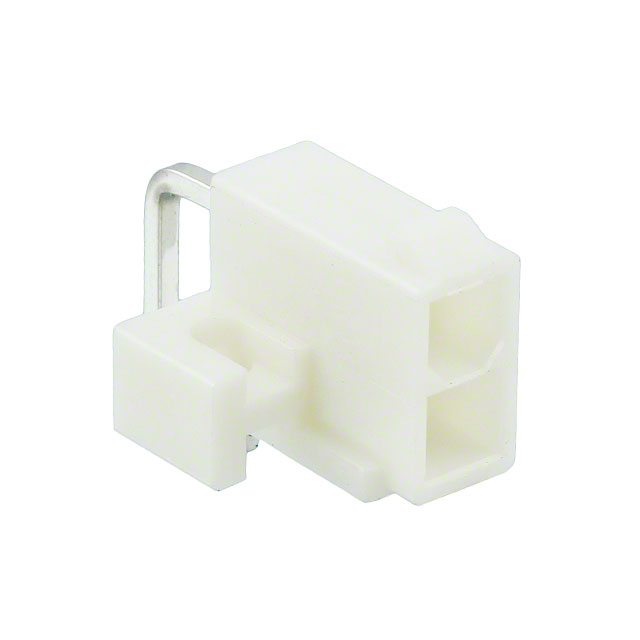

 TE Connectivity Raychem Cable Protection | Natural | 4.2 mm | 0.165 in | 9.8 mm | 0.386 in | General Purpose Industrial Lighting | Nylon Polyamide (PA) | All | Male Pin | Mounting Flange | 9 A | 3.6 mm | 0.142 in | UL94 V-0 | -40 °C | 105 ░C | Shrouded - 4 Wall | 2.03 µm | 80 µin | Board to Cable/Wire | Square | 600 VAC | 2 | Locking Ramp | 2.03 µm | 80 µin | Solder | Tin | Header | 2 | Through Hole Right Angle | Brass Alloy |
