GBC26S Series

Catalog

CONN HEADER SMD R/A 26POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Contact Type	Material Flammability Rating	Insulation Height	Insulation Height	Contact Finish - Mating	Number of Positions	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Shape	Connector Type	Insulation Color	Style	Shrouding	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Insulation Material	Number of Rows	Number of Positions Loaded

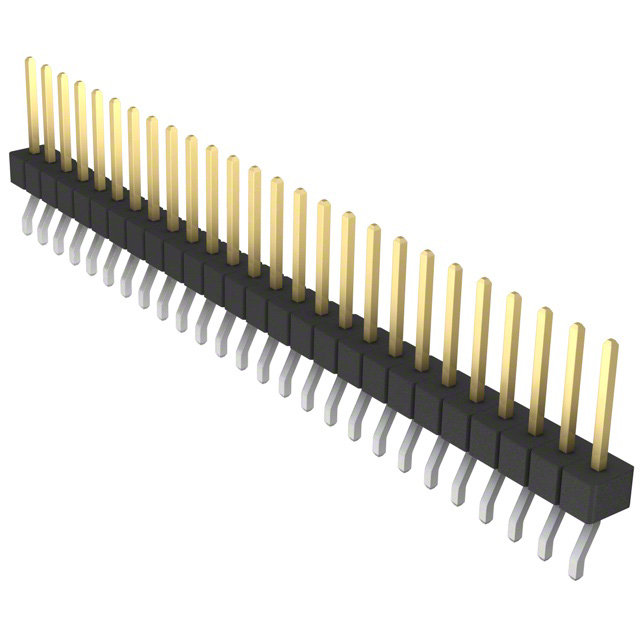

Sullins Connector Solutions GBC26SGSN-M89	2.54 µm	100 µin	8.08 mm	0.318 in	Male Pin	UL94 V-0	3.56 mm	0.14 in	Gold	26	Phosphor Bronze	0.25 µm	10 µin	Solder	Tin	0.1 "	2.54 mm	Right Angle Surface Mount	Square	Header Breakaway	Black	Board to Board Cable	Unshrouded	3 A	150 °C	-65 ░C	Push-Pull	Nylon 9T Polyamide (PA9T)	1	All

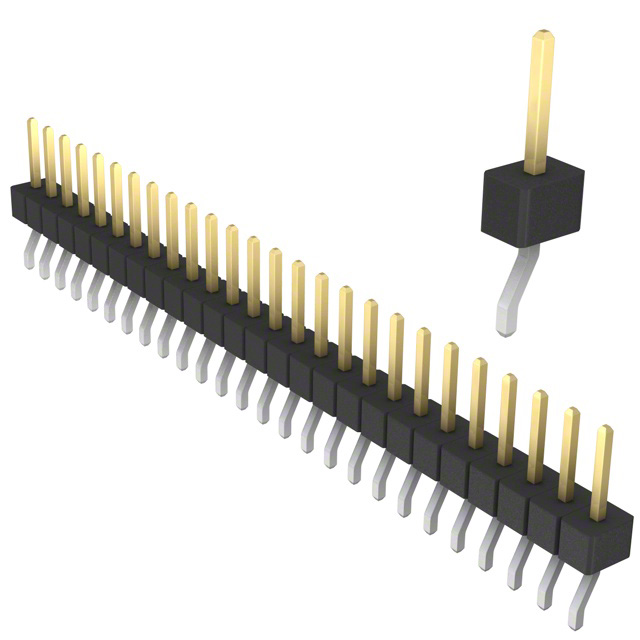

Sullins Connector Solutions GBC26SBSN-M89	2.54 µm	100 µin	5.84 mm	0.23 in	Male Pin	UL94 V-0	3.56 mm	0.14 in	Gold	26	Phosphor Bronze	0.25 µm	10 µin	Solder	Tin	0.1 "	2.54 mm	Right Angle Surface Mount	Square	Header Breakaway	Black	Board to Board Cable	Unshrouded	3 A	150 °C	-65 ░C	Push-Pull	Nylon 9T Polyamide (PA9T)	1	All
