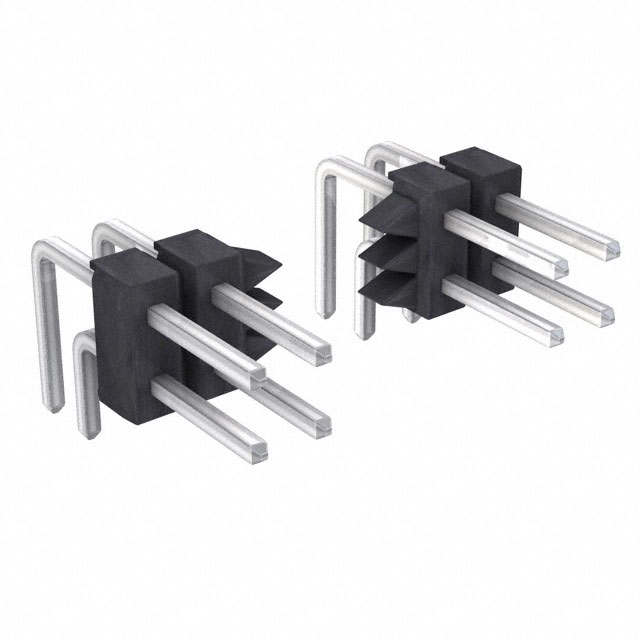

M20-974 Series

Catalog

CONN, R/A HEADER, 10POS, 2ROW, 2.54MM ROHS COMPLIANT: YES

Part	Style	Contact Length - Post	Contact Length - Post	Number of Positions	Insulation Material	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Mounting Type	Contact Shape	Contact Finish - Mating	Number of Rows [custom]	Current Rating (Amps)	Contact Type	Contact Finish - Post	Termination	Material Flammability Rating	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Insulation Height [z]	Insulation Height [z]	Shrouding	Fastening Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Number of Positions [custom]
Harwin Inc. M20-9740542	Board to Board Cable	0.118 in	3 mm	10	Nylon 6T Polyamide (PA6T)	0.228 in	5.8 mm	All	Right Angle Through Hole	Square	Gold	2	3 A	Male Pin	Tin	Solder	UL94 V-0	Black	0.1 in	2.54 mm	Header Cuttable	0.2 in	5.08 mm	Unshrouded	Push-Pull	Brass	-40 C	105 ░C	0.1 "	2.54 mm

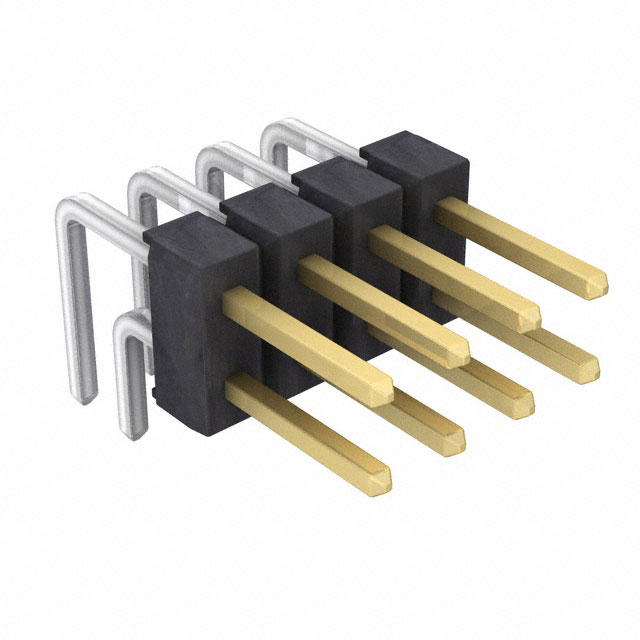

Harwin Inc. M20-9740442	Board to Board Cable	0.118 in	3 mm	8	Nylon 6T Polyamide (PA6T)	0.228 in	5.8 mm	All	Right Angle Through Hole	Square	Gold	2	3 A	Male Pin	Tin	Solder	UL94 V-0	Black	0.1 in	2.54 mm	Header Cuttable	0.2 in	5.08 mm	Unshrouded	Push-Pull	Brass	-40 C	105 ░C	0.1 "	2.54 mm
Harwin Inc. M20-9743646	Board to Board Cable	0.118 in	3 mm	72	Nylon 6T Polyamide (PA6T)	0.228 in	5.8 mm	All	Right Angle Through Hole	Square		2	3 A	Male Pin	Tin	Solder	UL94 V-0	Black	0.1 in	2.54 mm	Header Cuttable	0.2 in	5.08 mm	Unshrouded	Push-Pull	Brass	-40 C	105 ░C	0.1 "	2.54 mm

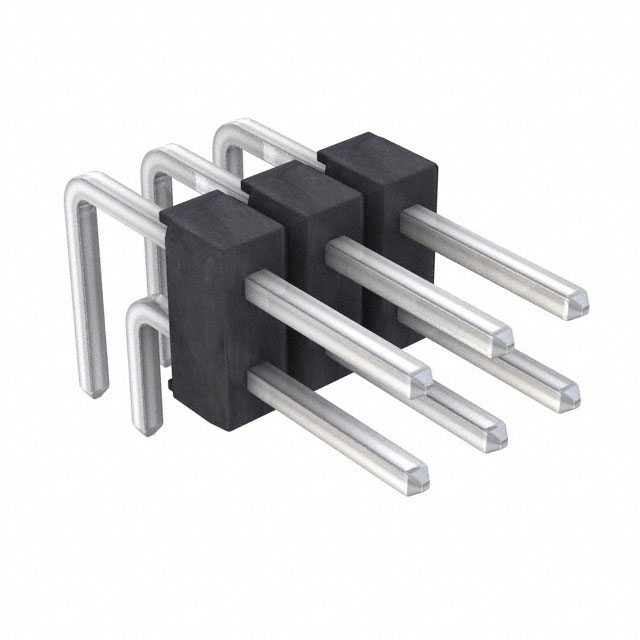

Harwin Inc. M20-9740346	Board to Board Cable	0.118 in	3 mm	6	Nylon 6T Polyamide (PA6T)	0.228 in	5.8 mm	All	Right Angle Through Hole	Square		2	3 A	Male Pin	Tin	Solder	UL94 V-0	Black	0.1 in	2.54 mm	Header Cuttable	0.2 in	5.08 mm	Unshrouded	Push-Pull	Brass	-40 C	105 ░C	0.1 "	2.54 mm
Harwin Inc. M20-9741242	Board to Board Cable	0.118 in	3 mm	24	Nylon 6T Polyamide (PA6T)	0.228 in	5.8 mm	All	Right Angle Through Hole	Square	Gold	2	3 A	Male Pin	Tin	Solder	UL94 V-0	Black	0.1 in	2.54 mm	Header Cuttable	0.2 in	5.08 mm	Unshrouded	Push-Pull	Brass	-40 C	105 ░C	0.1 "	2.54 mm
Harwin Inc. M20-9741342	Board to Board Cable	0.118 in	3 mm	26	Nylon 6T Polyamide (PA6T)	0.228 in	5.8 mm	All	Right Angle Through Hole	Square	Gold	2	3 A	Male Pin	Tin	Solder	UL94 V-0	Black	0.1 in	2.54 mm	Header Cuttable	0.2 in	5.08 mm	Unshrouded	Push-Pull	Brass	-40 C	105 ░C	0.1 "	2.54 mm
Harwin Inc. M20-9742046	Board to Board Cable	0.118 in	3 mm	40	Nylon 6T Polyamide (PA6T)	0.228 in	5.8 mm	All	Right Angle Through Hole	Square		2	3 A	Male Pin	Tin	Solder	UL94 V-0	Black	0.1 in	2.54 mm	Header Cuttable	0.2 in	5.08 mm	Unshrouded	Push-Pull	Brass	-40 C	105 ░C	0.1 "	2.54 mm

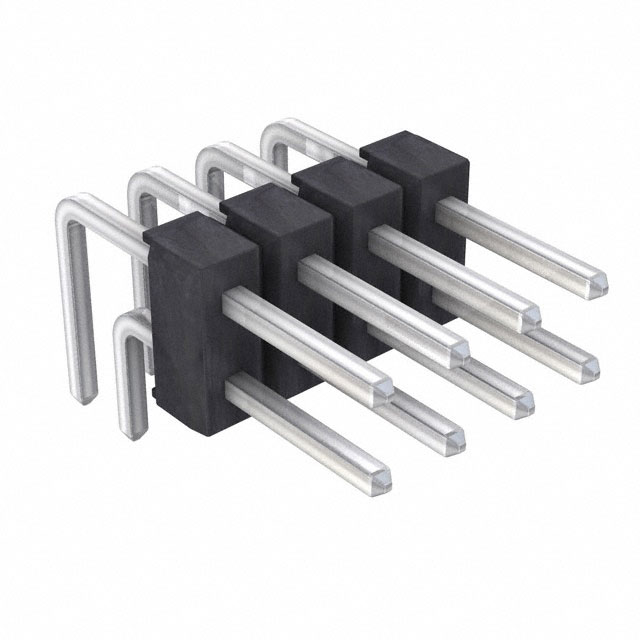

Harwin Inc. M20-9740446	Board to Board Cable	0.118 in	3 mm	8	Nylon 6T Polyamide (PA6T)	0.228 in	5.8 mm	All	Right Angle Through Hole	Square		2	3 A	Male Pin	Tin	Solder	UL94 V-0	Black	0.1 in	2.54 mm	Header Cuttable	0.2 in	5.08 mm	Unshrouded	Push-Pull	Brass	-40 C	105 ░C	0.1 "	2.54 mm
Harwin Inc. M20-9741642	Board to Board Cable	0.118 in	3 mm		Nylon 6T Polyamide (PA6T)	0.228 in	5.8 mm	All	Right Angle Through Hole	Square	Gold	2	3 A	Male Pin	Tin	Solder	UL94 V-0	Black	0.1 in	2.54 mm	Header Cuttable	0.2 in	5.08 mm	Unshrouded	Push-Pull	Brass	-40 C	105 ░C	0.1 "	2.54 mm
Harwin Inc. M20-9741746	Board to Board Cable	0.118 in	3 mm		Nylon 6T Polyamide (PA6T)	0.228 in	5.8 mm	All	Right Angle Through Hole	Square		2	3 A	Male Pin	Tin	Solder	UL94 V-0	Black	0.1 in	2.54 mm	Header Cuttable	0.2 in	5.08 mm	Unshrouded	Push-Pull	Brass	-40 C	105 ░C	0.1 "	2.54 mm	34
