SS65100 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K

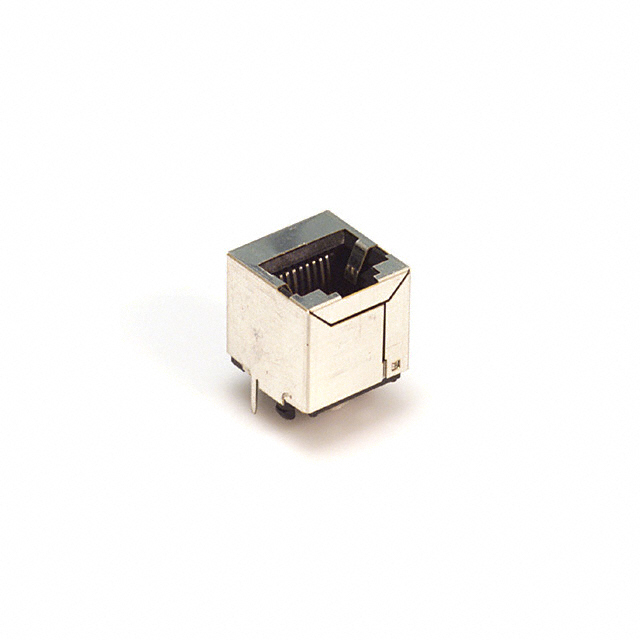

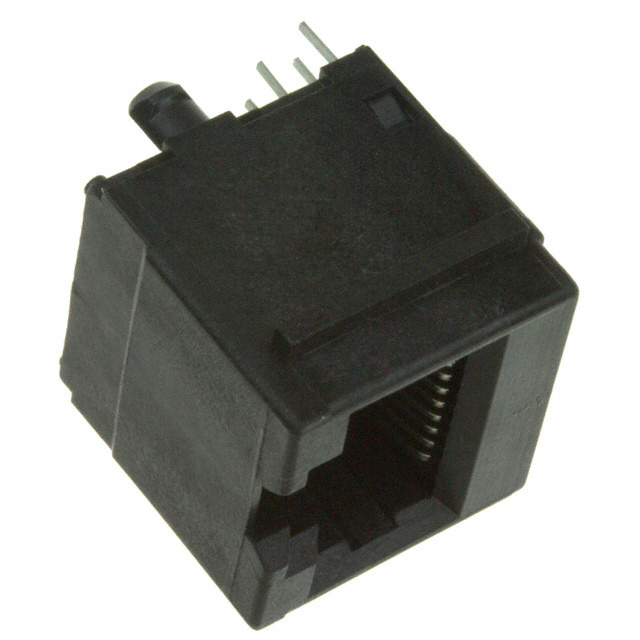

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, THROUGH HOLE MOUNT
| Part | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Number of Ports | Tab Direction | Contact Material | Connector Type | Number of Rows | Orientation | Contact Finish | Mounting Type | Features | Number of Positions/Contacts | Shielding | LED Color | Termination | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | Thermoplastic | 85 °C | -40 C | 30 Áin | 0.76 Ám | 1 | User Selectable | Copper Alloy | Jack | 1 | Vertical | Gold | Through Hole | Board Lock | 8p8c (RJ45 Ethernet) | Shielded | Does Not Contain LED | Solder | ||
 Bel Fuse Inc. | Jack | Vertical | 8p8c (RJ45 Ethernet) | Unshielded | ||||||||||||||||
 Bel Fuse Inc. | Thermoplastic | 85 °C | -40 C | 30 Áin | 0.76 Ám | 1 | User Selectable | Copper Alloy | Jack | 1 | Vertical | Gold | Through Hole | Board Lock Panel Stops | Unshielded | Does Not Contain LED | Solder | 10 | 10 | |
Bel Fuse Inc. | Thermoplastic | 85 °C | -40 C | 30 Áin | 0.76 Ám | 1 | User Selectable | Copper Alloy | Jack | 1 | Vertical | Gold | Through Hole | Board Lock | 8p8c (RJ45 Ethernet) | Unshielded | Does Not Contain LED | Solder | ||
Bel Fuse Inc. | Thermoplastic | 85 °C | -40 C | 30 Áin | 0.76 Ám | 1 | User Selectable | Copper Alloy | Jack | 1 | Vertical | Gold | Through Hole | Board Lock Panel Stops | 8p8c (RJ45 Ethernet) | Unshielded | Does Not Contain LED | Solder | ||
Bel Fuse Inc. | Thermoplastic | 85 °C | -40 C | 50 µin | 1.27 µm | 1 | User Selectable | Copper Alloy | Jack | 1 | Vertical | Gold | Through Hole | Board Lock EPP918A | 8p8c (RJ45 Ethernet) | Shielded | Does Not Contain LED | Solder | ||
 Bel Fuse Inc. | Thermoplastic | 85 °C | -40 C | 30 Áin | 0.76 Ám | 1 | User Selectable | Copper Alloy | Jack | 1 | Vertical | Gold | Through Hole | Board Lock | Unshielded | Does Not Contain LED | Solder | 10 | 10 | |
 Bel Fuse Inc. | 85 °C | -40 C | 30 Áin | 0.76 Ám | 1 | User Selectable | Copper Alloy | Jack | 1 | Vertical | Gold | Through Hole | Board Lock | Shielded | Does Not Contain LED | Solder | 10 | 10 |
