C1CXS-2 Series

Catalog

IDC CABLE - CKC26S/AE26M/X

Part	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Shielding	Cable Termination	Connector Type	Pitch - Cable	Pitch - Cable	Number of Rows [custom]	Color	Contact Finish	Length	Length	Usage	Number of Positions	Features

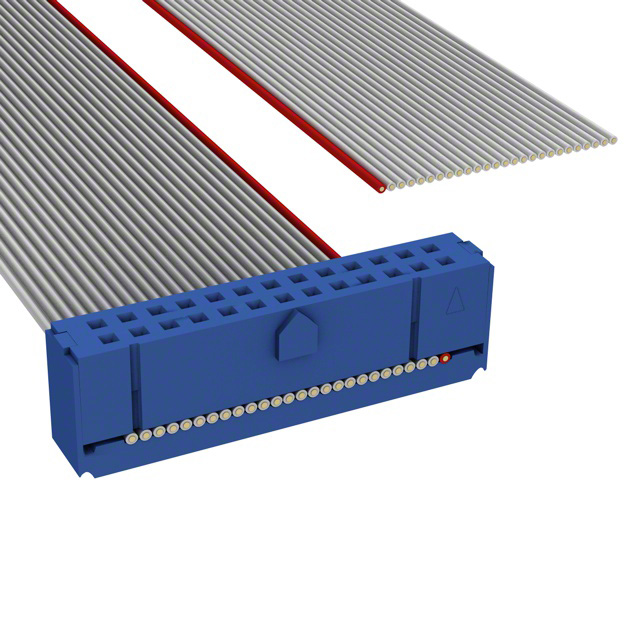

CW Industries C1CXS-2636M	2.54 µm	100 µin	0.1 in	2.54 mm	Unshielded	IDC	Socket to Cable	0.05 in	1.27 mm	2	Multiple Ribbon	Tin	91.44 cm	3 ft	Board In	26	Polarizing Key
CW Industries C1CXS-2636G	2.54 µm	100 µin	0.1 in	2.54 mm	Unshielded	IDC	Socket to Cable	0.05 in	1.27 mm	2		Tin	91.44 cm	3 ft	Board In	26	Polarizing Key

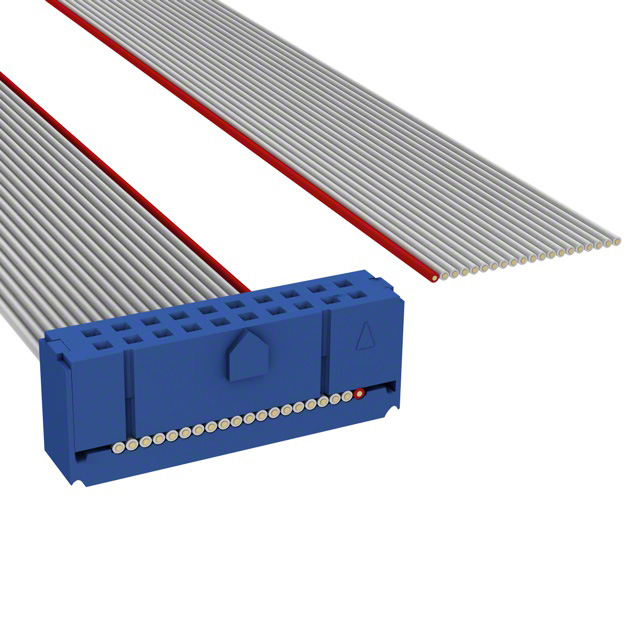

CW Industries C1CXS-2036G	2.54 µm	100 µin	0.1 in	2.54 mm	Unshielded	IDC	Socket to Cable	0.05 in	1.27 mm	2		Tin	91.44 cm	3 ft	Board In	20	Polarizing Key
