880623 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

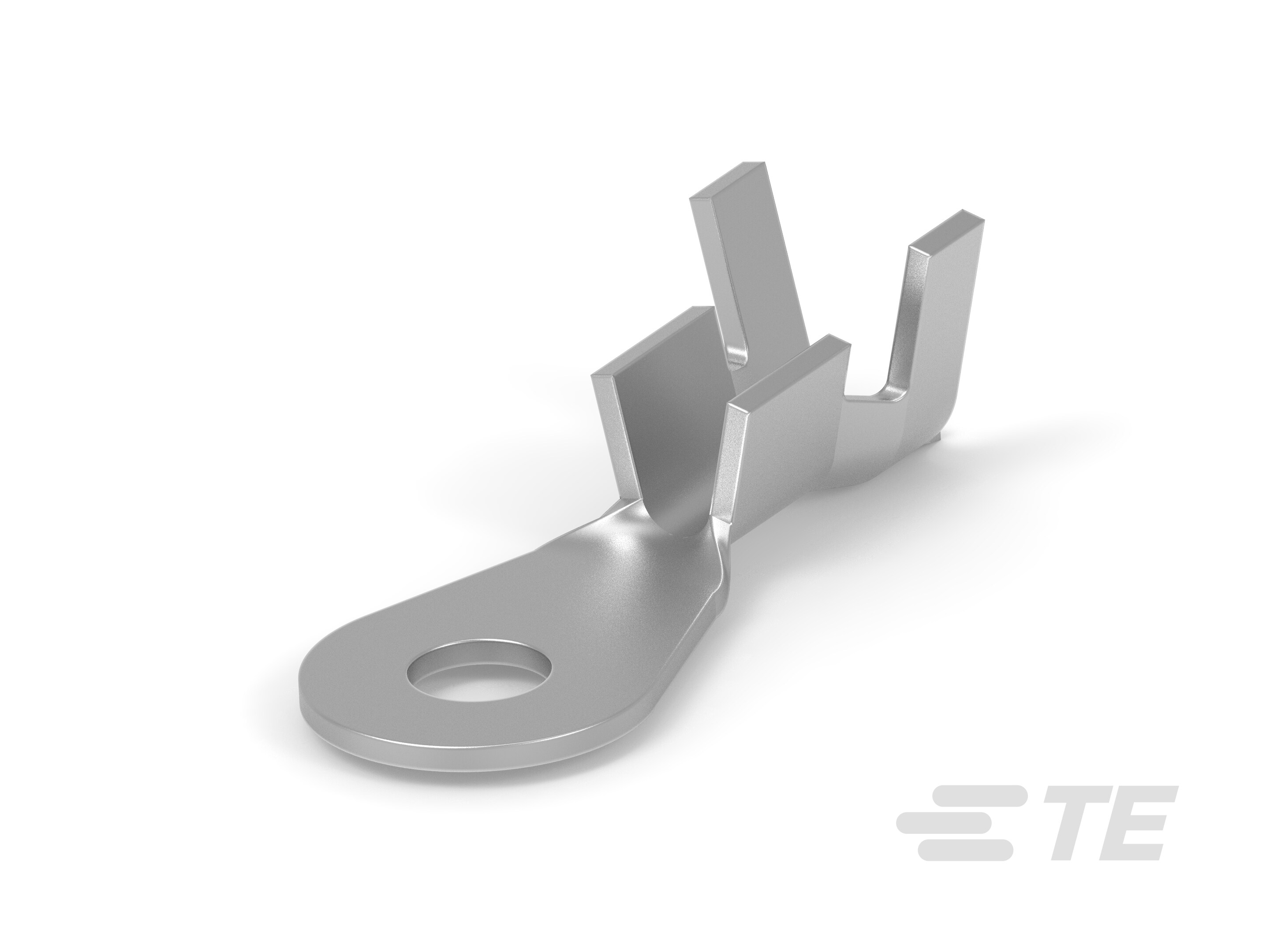

CONN RING CIRC 13-17AWG CRIMP
| Part | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation | Length - Overall [x] | Length - Overall [x] | Mounting Type | Termination | Wire Gauge [Max] | Wire Gauge [Min] | Width - Outer Edges [x] | Width - Outer Edges | Terminal Type | Thickness | Thickness | Contact Finish | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2.69 mm | 0.157 in | 3.99 mm | 0.106 in | Non-Insulated | 0.78 in | 19.81 mm | Free Hanging (In-Line) | Crimp | 17 AWG | 13 AWG | 0.319 in | 8.1 mm | Circular | 0.61 mm | 0.024 " | Tin | Brass |
