ASMB-MTB1 Series
Manufacturer: Broadcom Limited
Beta
⌘K
LED RGB TOP MOUNT PLCC
| Part | Package / Case | Current - Test | Lens Transparency | Lens Size [diameter] | Color | Voltage - Forward (Vf) (Typ) | Height (Max) [z] | Wavelength - Dominant | Mounting Type | Supplier Device Package | Wavelength - Peak | Configuration | Size / Dimension [y] | Size / Dimension [x] | Lens Style | Viewing Angle | Lens Color | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | ||||||||||||||||||||

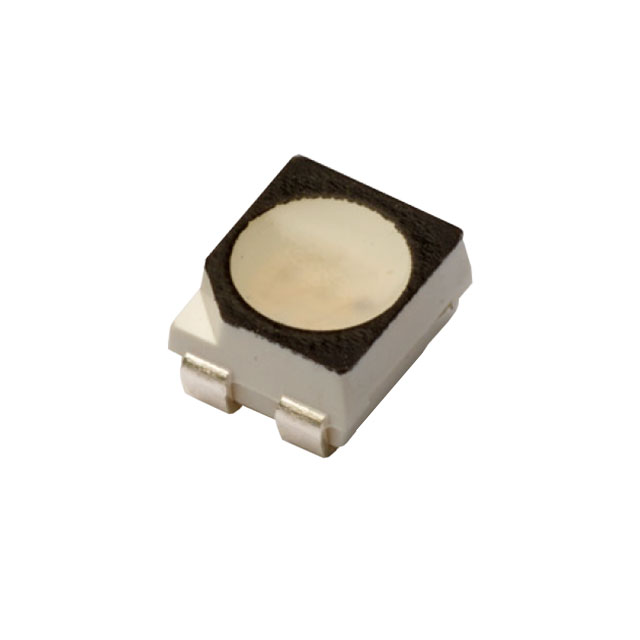

 Broadcom Limited | 4-PLCC | 20mA Blue 20mA Green 20mA Red | Diffused | 2.4 mm Dia | Blue Green Red | 2.1 V 3.1 V 3.1 V | 1.9 mm | 470nm Blue 530nm Green 625nm Red | Surface Mount | 4-PLCC | 465nm Blue 522nm Green 634nm Red | Common Anode | 2.8 mm | 3.2 mm | Round with Flat Top | 115 ° | White | 540 mcd | 350 mcd | 1600 mcd |
 Broadcom Limited |
