DRD24D Series

Catalog

SSR RELAY SPST-NO 6A 24-280V

Part	Output Type	Load Current	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Voltage - Load [Min]	Voltage - Load [Max]	Package / Case	Approval Agency	Termination Style	Circuit
Sensata-Crydom DRD24D06X	AC Zero Cross	6 A	80 °C	-30 ░C	32 VDC	4 V	DIN Rail	24 V	280 V	Module	CE cULus	Screw Terminal

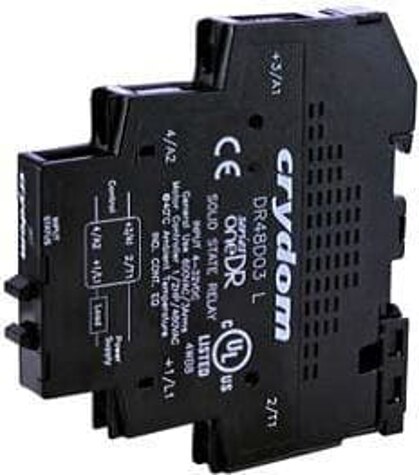

Sensata-Crydom DRD24D06XR	AC	6 A	80 °C	-30 ░C	32 VDC	4 V	DIN Rail	24 V	280 V	Module	CE cULus	Screw Terminal	SPST-NO (1 Form A) x 2

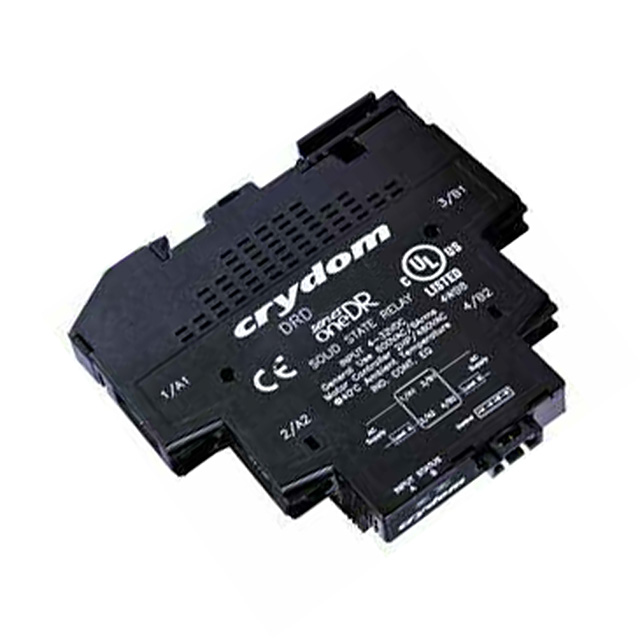

Sensata-Crydom DRD24D06	AC Zero Cross	6 A	80 °C	-30 ░C	32 VDC	4 V	DIN Rail	24 V	280 V	Module	CE cULus	Screw Terminal	SPST-NO (1 Form A) x 2
