GRB263D Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH ROCKER SPDT 18A 125V
| Part | Mechanical Life | Circuit | Current Rating (Amps) | Termination Style | Voltage Rating - DC | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Voltage Rating - AC | Switch Function | Mounting Type | Actuator Marking | Color - Actuator/Cap | Approval Agency | Illumination Type, Color | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

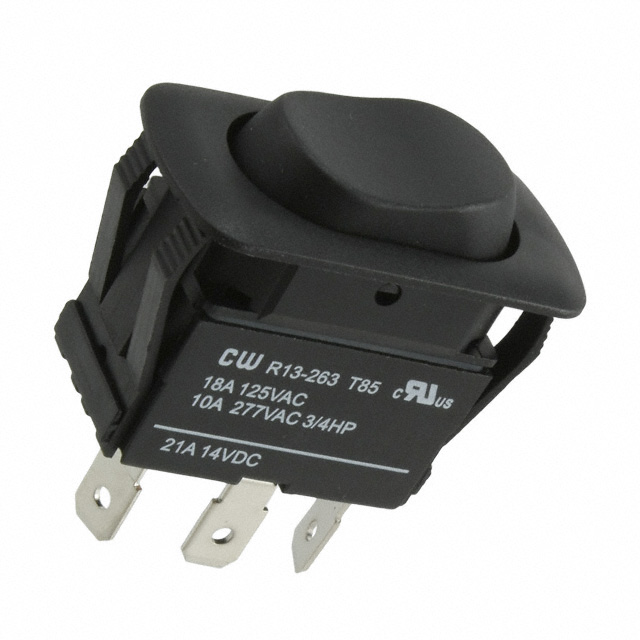

 CW Industries | 100000 Cycles | SPDT | 18 A 21 A | Quick Connect - 0.250" (6.3mm) | 14 V | 21.2 mm | 36.6 mm | 85 °C | -20 ░C | Concave (Curved) | 125 V | On-Off-On | Panel Mount Snap-In | No Marking | Black | cULus ENEC | ||

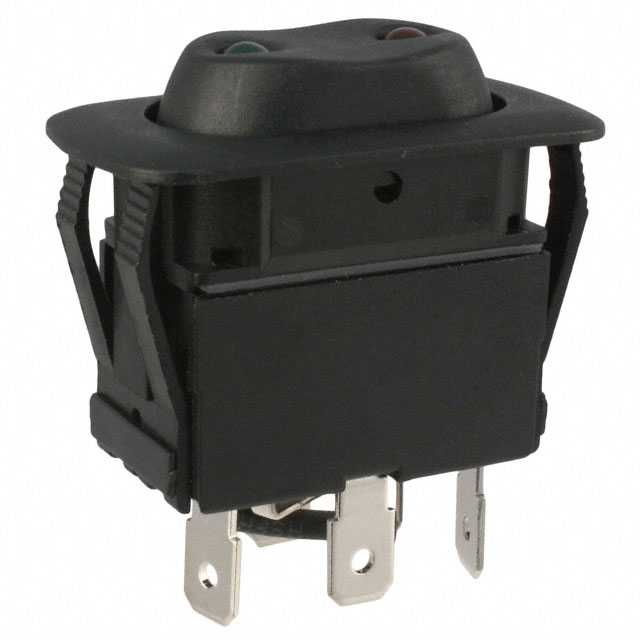

 CW Industries | 100000 Cycles | SPDT | 21 A | Quick Connect - 0.250" (6.3mm) | 14 V | 21.2 mm | 36.6 mm | 85 °C | -20 ░C | Oval - Illuminated | On-Off-On | Panel Mount Snap-In | No Marking | Black | cULus ENEC | Green/Red LED | IP56 - Dust Protected Water Resistant |
