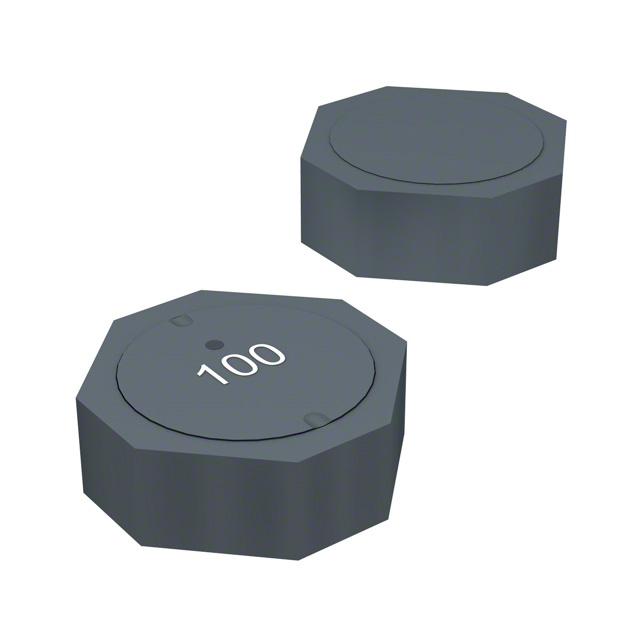

SRU5018 Series

Catalog

INDUCTOR,FERRITE,6.8UH,30+% TOL,30-% TOL,2020-CASE ROHS COMPLIANT: YES

Part	Frequency - Self Resonant	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Current - Saturation (Isat)	Type	Material - Core	Shielding	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Inductance Frequency - Test	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	DC Resistance (DCR)	Q @ Freq	Tolerance	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. SRU5018-6R8Y	60 MHz	0.079 in	2 mm	6.8 µH	1.2 A	Drum Core Wirewound	Ferrite	Shielded	5.2 mm	0.205 "	0.205 "	5.2 mm	100 kHz	1.45 A	125 °C	-40 C	Nonstandard	Surface Mount	50 mOhm	7.5 7.96 MHz	30 %
Bourns Inc. SRU5018-3R3Y		0.079 in	2 mm	3.3 µH		Drum Core Wirewound	Ferrite	Shielded	5.2 mm	0.205 "	0.205 "	5.2 mm	100 kHz		125 °C	-40 C	Nonstandard	Surface Mount			30 %
Bourns Inc. SRU5018-3R5Y	90 MHz	0.079 in	2 mm	3.5 µH	1.7 A	Drum Core Wirewound	Ferrite	Shielded	5.2 mm	0.205 "	0.205 "	5.2 mm	100 kHz	2.1 A	125 °C	-40 C	Nonstandard	Surface Mount	32 mOhm		30 %	9	7.96 MHz
Bourns Inc. SRU5018-150Y	40 MHz	0.079 in	2 mm	15 µH	800 mA	Drum Core Wirewound	Ferrite	Shielded	5.2 mm	0.205 "	0.205 "	5.2 mm	100 kHz	950 mA	125 °C	-40 C	Nonstandard	Surface Mount	100 mOhm		30 %	12		2.52 MHz
Bourns Inc. SRU5018-1R0Y	200 MHz	0.079 in	2 mm	1 µH	2.85 A	Drum Core Wirewound	Ferrite	Shielded	5.2 mm	0.205 "	0.205 "	5.2 mm	100 kHz	2.8 A	125 °C	-40 C	Nonstandard	Surface Mount	12.5 mOhm		30 %	9	7.96 MHz
Bourns Inc. SRU5018-4R7Y	80 MHz	0.079 in	2 mm	4.7 ÁH	1.55 A	Drum Core Wirewound	Ferrite	Shielded	5.2 mm	0.205 "	0.205 "	5.2 mm	100 kHz	2 A	125 °C	-40 C	Nonstandard	Surface Mount	36 mOhm	8.5	30 %			7.96 MHz
Bourns Inc. SRU5018-470Y	18 MHz	0.079 in	2 mm	47 µH	450 mA	Drum Core Wirewound	Ferrite	Shielded	5.2 mm	0.205 "	0.205 "	5.2 mm	100 kHz	0.54 A	125 °C	-40 C	Nonstandard	Surface Mount	330 mOhm	2.52 MHz 13	30 %
Bourns Inc. SRU5018-100Y	50 MHz	0.079 in	2 mm	10 µH	1.05 A	Drum Core Wirewound	Ferrite	Shielded	5.2 mm	0.205 "	0.205 "	5.2 mm	100 kHz	1.25 A	125 °C	-40 C	Nonstandard	Surface Mount	65 mOhm		30 %	12		2.52 MHz
