CAT809 Series

Voltage Supervisor, Push-Pull, Active Low

Catalog

Voltage Supervisor, Push-Pull, Active Low

Part	Reset	Mounting Type	Reset Timeout [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Type	Number of Voltages Monitored	Output	Voltage - Threshold	Package / Case
ON Semiconductor CAT809VTBI-GT3	Active Low	Surface Mount	140 ms	85 °C	-40 °C	SOT-23-3	Simple Reset/Power-On Reset	1	Push-Pull Totem Pole	1.6 V	SC-59 SOT-23-3 TO-236-3
ON Semiconductor CAT809TSDI-T3	Active Low	Surface Mount	140 ms	85 °C	-40 °C	SC-70-3	Simple Reset/Power-On Reset	1	Push-Pull Totem Pole	3.08 V	SC-70 SOT-323
ON Semiconductor CAT809LSDI-T3	Active Low	Surface Mount	140 ms	85 °C	-40 °C	SC-70-3	Simple Reset/Power-On Reset	1	Push-Pull Totem Pole	4.63 V	SC-70 SOT-323
ON Semiconductor CAT809RSDI-GT3	Active Low	Surface Mount	140 ms	85 °C	-40 °C	SC-70-3	Simple Reset/Power-On Reset	1	Push-Pull Totem Pole	2.63 V	SC-70 SOT-323
ON Semiconductor CAT809TSDI-GT3	Active Low	Surface Mount	140 ms	85 °C	-40 °C	SC-70-3	Simple Reset/Power-On Reset	1	Push-Pull Totem Pole	3.08 V	SC-70 SOT-323
ON Semiconductor CAT809STBI-GT3	Active Low	Surface Mount	140 ms	85 °C	-40 °C	SOT-23-3	Simple Reset/Power-On Reset	1	Push-Pull Totem Pole	2.93 V	SC-59 SOT-23-3 TO-236-3
ON Semiconductor CAT809JTBI-GT3	Active Low	Surface Mount	140 ms	85 °C	-40 °C	SOT-23-3	Simple Reset/Power-On Reset	1	Push-Pull Totem Pole	4 V	SC-59 SOT-23-3 TO-236-3
ON Semiconductor CAT809LTBI-GT3	Active Low	Surface Mount	140 ms	85 °C	-40 °C	SOT-23-3	Simple Reset/Power-On Reset	1	Push-Pull Totem Pole	4.63 V	SC-59 SOT-23-3 TO-236-3
ON Semiconductor CAT809MSDI-GT3	Active Low	Surface Mount	140 ms	85 °C	-40 °C	SC-70-3	Simple Reset/Power-On Reset	1	Push-Pull Totem Pole		SC-70 SOT-323
ON Semiconductor CAT809LSDI-GT3	Active Low	Surface Mount	140 ms	85 °C	-40 °C	SC-70-3	Simple Reset/Power-On Reset	1	Push-Pull Totem Pole	4.63 V	SC-70 SOT-323

Catalog

Voltage Supervisor, Push-Pull, Active Low

Key Features

• Precision monitoring of+5.0V (-5%, -10%, -20%),+3.3V (-5%, -10%),+3.0V (-10%) and+2.5V (-5%) power supplies

• Offered in three output configurations:- CAT809: Push-Pull Active LOW reset

• Direct replacements for the MAX809 in applications operating over the industrial temperature range

• Reset valid down to VCC= 1.0 V

• 6 μA power supply current

• Power supply transient immunity

• Industrial temperature range: -40˚C to +85˚C

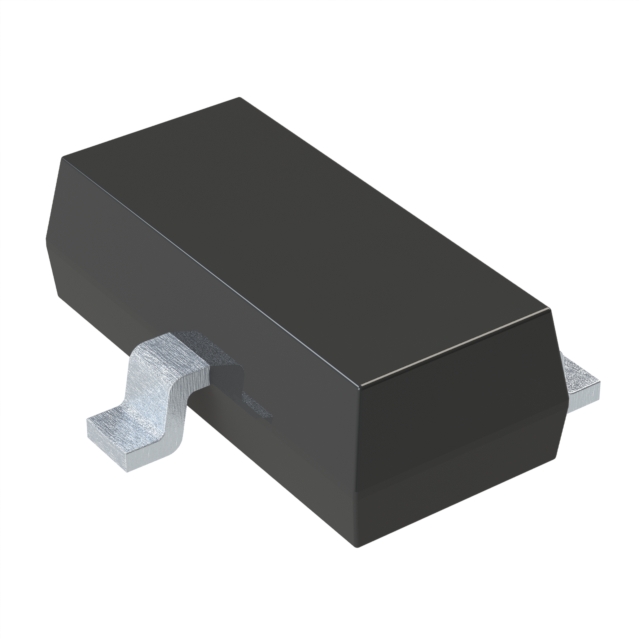

• Available in RoHS-compliant SOT-23 and SC70 packages

Description

The CAT809 is a µP supervisory circuits that monitor power supplies in digital systems. The CAT809 is a direct replacements for the MAX809 in applications operating over the industrial temperature range.This device generates a reset signal, which is asserted while the power supply voltage is below a preset threshold level and for at least 140 ms after the power supply level has risen above that level. The underlying floating gate technology, AE²™ used by ON Semiconductor, makes it possible to offer any custom reset threshold value. Seven industry standard threshold levels are offered to support +5.0 V, +3.3 V, +3.0 V and +2.5 V systems.The CAT809 features a push-pullRESEToutput (active LOW) and the CAT810 features a push-pull RESET output (active HIGH).Fast transients on the power supply are ignored and the output is guaranteed to be in the correct state at Vcc levels as low as 1.0 V.The CAT809 is available in both the compact 3-pin SOT-23 and SC70 packages.
