Mini-Universal MATE-N-LOK Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

CONN HEADER VERT 22POS 4.14MM

...

Part	Contact Shape	Connector Type	Voltage Rating	Contact Material	Material Flammability Rating	Contact Type	Number of Positions Loaded	Style	Number of Rows [custom]	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Shrouding	Mounting Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Features	Fastening Type	Contact Finish - Post	Termination	Insulation Color	Type	Contact Termination	Pin or Socket	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Row Spacing	Row Spacing	Color	Pitch	Pitch	Note	Applications	Contact Finish Thickness - Post	For Use With/Related Products	Accessory Type	Contact Finish Thickness	Contact Finish Thickness

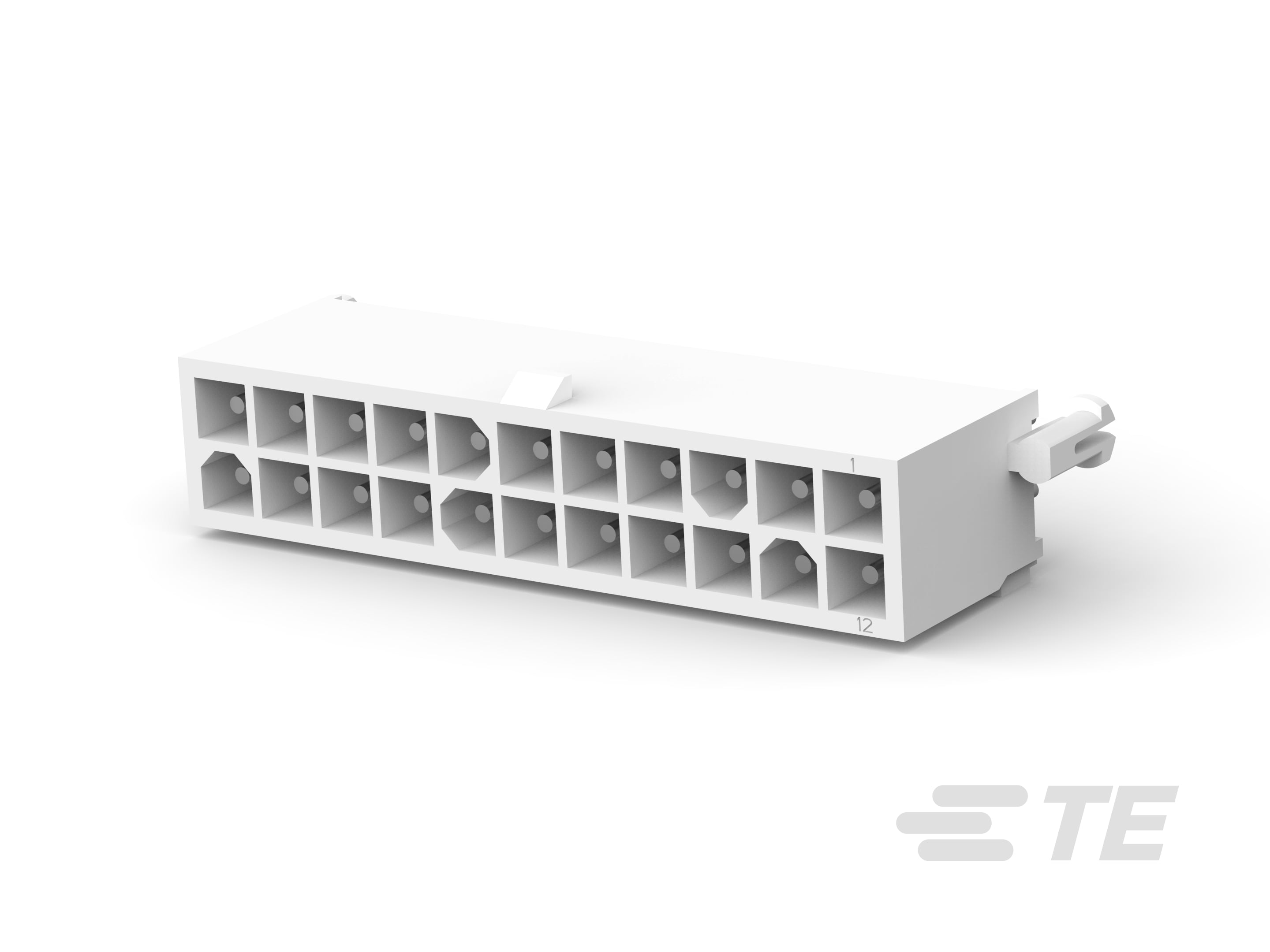

TE Connectivity AMP Connectors 1-794071-0	Circular	Header	600 VAC	Brass	UL94 V-0	Male Pin	All	Board to Cable/Wire	2	Nylon Polyamide (PA)	4.14 mm	0.163 in	13.5 mm	0.531 in	0.163 in	4.14 mm	4.45 mm	0.175 in	Shrouded - 4 Wall	Through Hole	Varies by Wire Gauge	85 °C	-20 ░C	150 Áin	3.81 Ám	22	Board Lock	Locking Ramp	Tin	Solder	White
TE Connectivity AMP Connectors 770901-1				Brass																												Stamped	Crimp	Pin	Tin	26 AWG	22 AWG
TE Connectivity AMP Connectors 770586-1		Plug				Male or Female			2	Nylon Polyamide (PA)										Free Hanging (In-Line)		105 ░C	-55 C			22		Latch Lock					Crimp					0.163 "	4.14 mm	White	4.14 mm	0.163 in
TE Connectivity AMP Connectors 172333-1		Receptacle				Male or Female			3	Nylon 6/6 Polyamide (PA66)										Panel Mount Snap-In						12		Locking Ramp					Crimp					0.165 in	4.2 mm	Natural	4.2 mm	0.165 in	Contacts Not Included

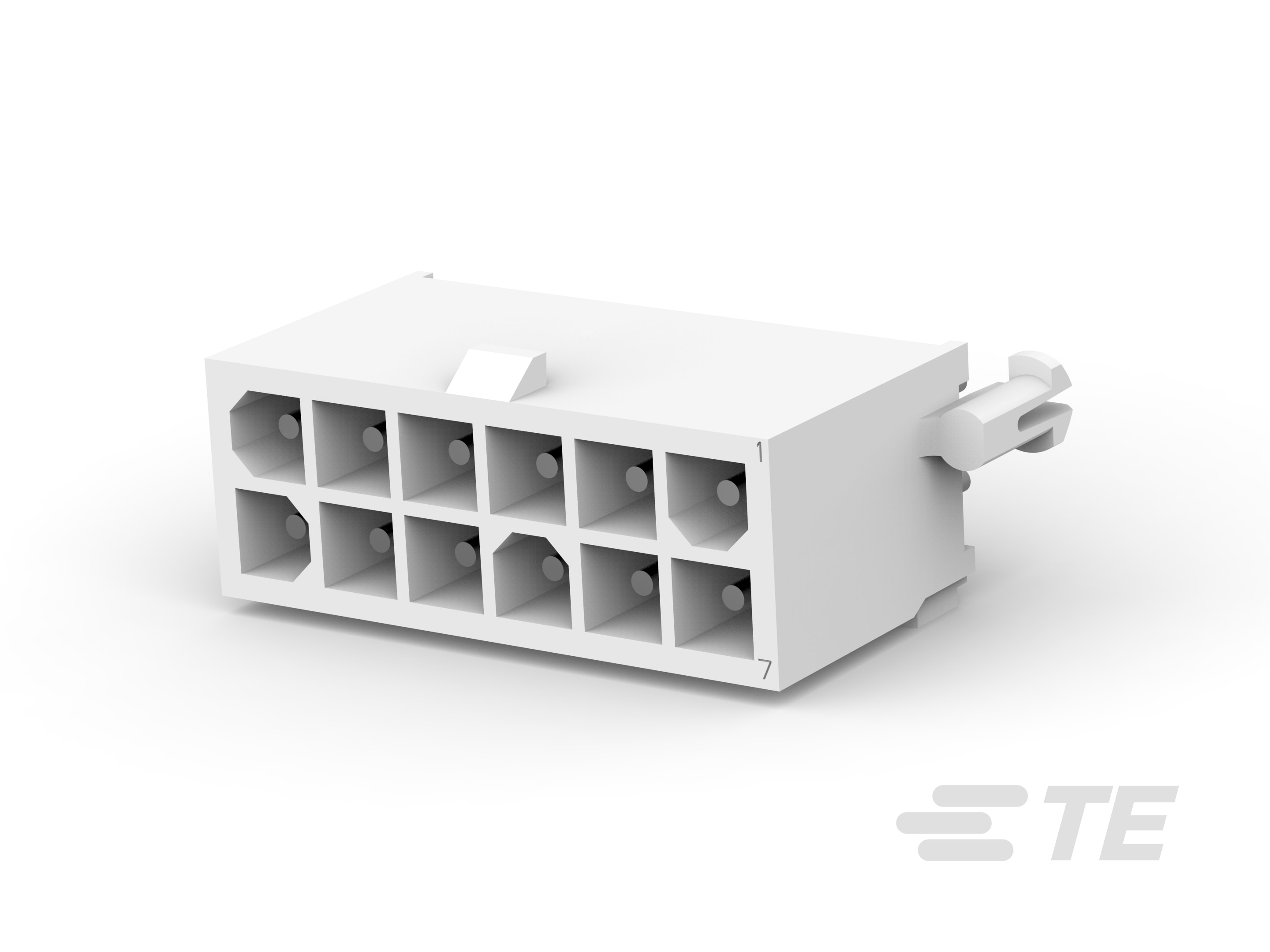

TE Connectivity AMP Connectors 1-770621-0	Circular	Header	600 VAC	Brass	UL94 V-0	Male Pin	All	Board to Cable/Wire	2	Nylon Polyamide (PA)	4.14 mm	0.163 in	13.5 mm	0.531 in	0.163 in	4.14 mm	4.45 mm	0.175 in	Shrouded - 4 Wall	Through Hole	Varies by Wire Gauge	85 °C	-20 ░C	150 Áin	3.81 Ám	12	Board Lock	Locking Ramp	Tin	Solder	White													General Purpose	3.81 Ám
TE Connectivity AMP Connectors 2005877-1																																														Mini-Universal MATE-N-LOK Series	Plug Sealing

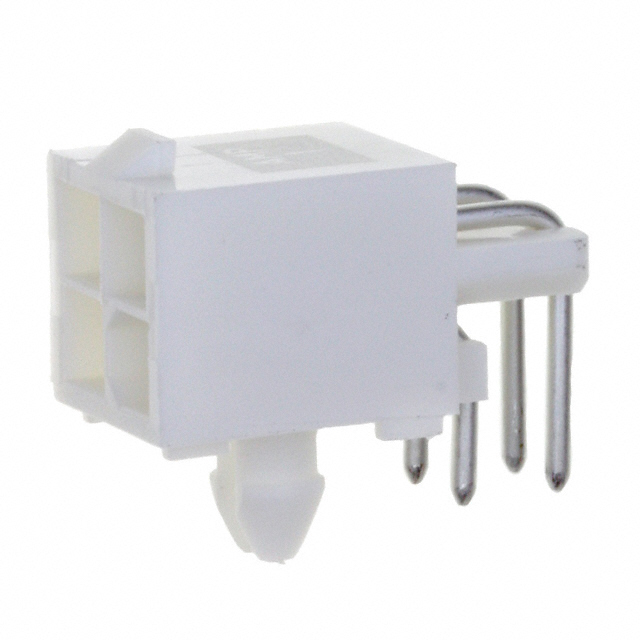

TE Connectivity AMP Connectors 1-770968-0	Circular	Header	600 VAC	Brass	UL94 V-0	Male Pin	All	Board to Cable/Wire	2	Nylon Polyamide (PA)	4.14 mm	0.163 in	9.8 mm	0.386 in	0.163 in	4.14 mm	3.68 mm	0.145 in	Shrouded - 4 Wall	Right Angle Through Hole	Varies by Wire Gauge	85 °C	-20 ░C	150 Áin	3.81 Ám	4	Board Lock	Locking Ramp	Tin	Solder	White													General Purpose	3.81 Ám

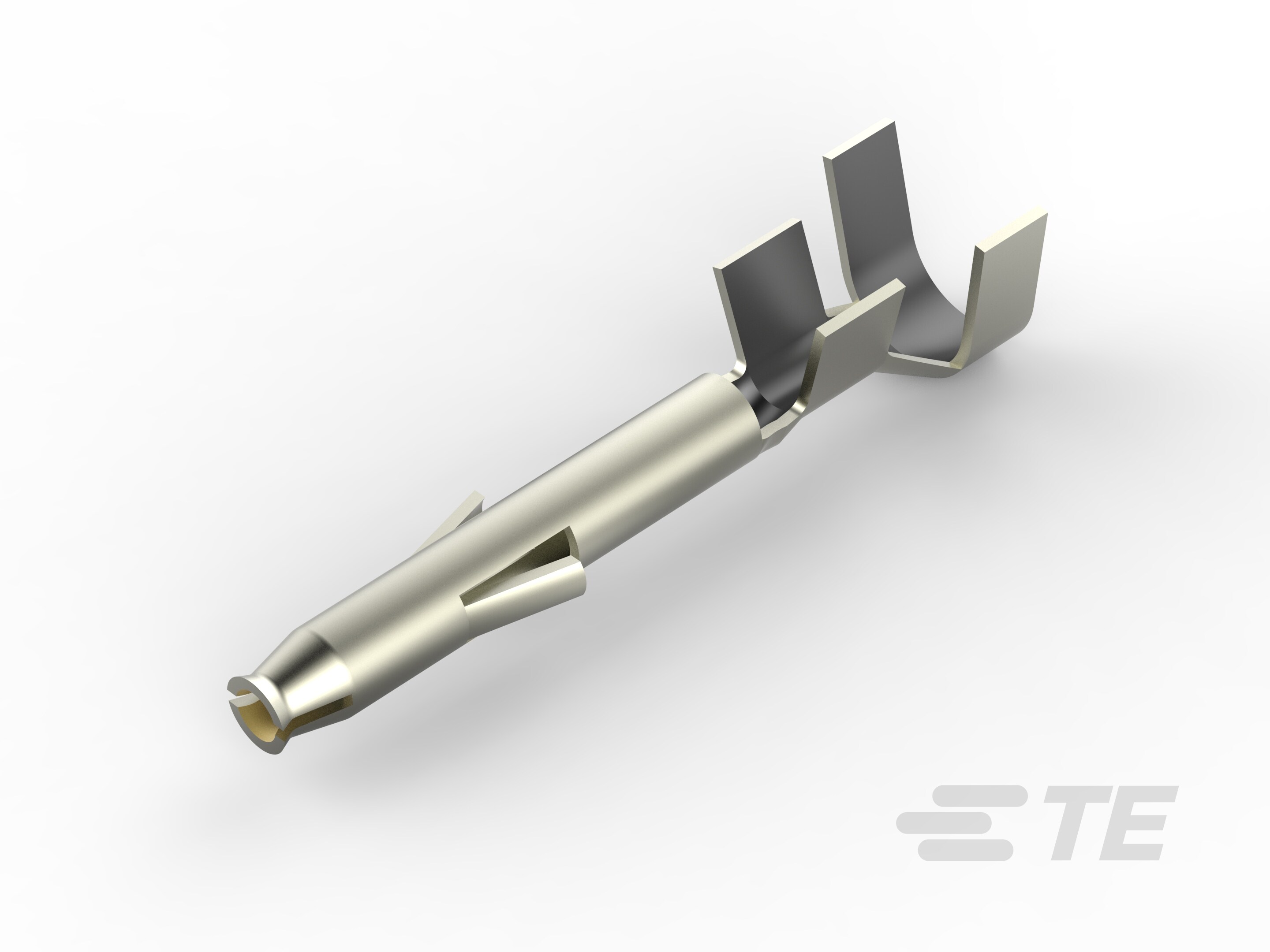

TE Connectivity AMP Connectors 1-794407-1																																Stamped	Crimp	Socket	Gold	20 AWG	16 AWG											30 Áin	0.76 Ám

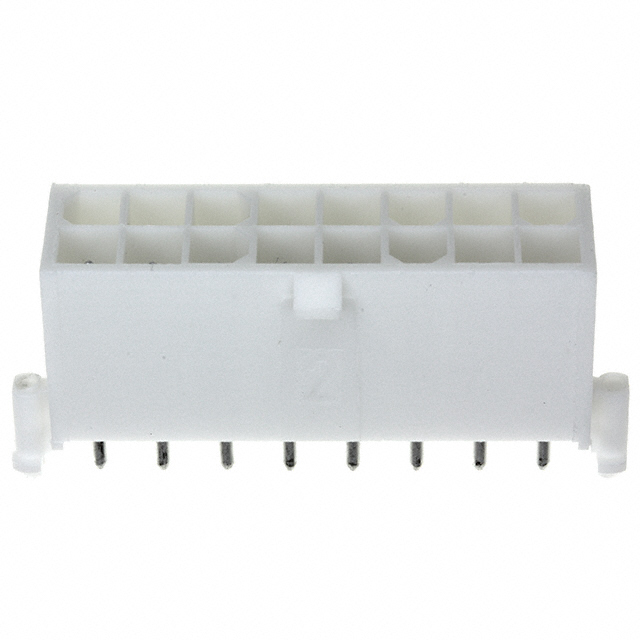

TE Connectivity AMP Connectors 1-794075-0	Circular	Header	600 VAC	Brass	UL94 V-0	Male Pin	All	Board to Cable/Wire	2	Nylon Polyamide (PA)	4.14 mm	0.163 in	13.5 mm	0.531 in	0.163 in	4.14 mm	4.45 mm	0.175 in	Shrouded - 4 Wall	Through Hole	Varies by Wire Gauge	85 °C	-20 ░C	150 Áin	3.81 Ám	16	Board Lock	Locking Ramp	Tin	Solder	White													General Purpose	3.81 Ám
TE Connectivity AMP Connectors 1-770876-0	Circular	Header	600 VAC	Brass	UL94 V-0	Male Pin	All	Board to Cable/Wire	3	Nylon Polyamide (PA)	4.14 mm	0.163 in	13.5 mm	0.531 in	0.163 in	4.14 mm	4.45 mm	0.175 in	Shrouded - 4 Wall	Through Hole	Varies by Wire Gauge	85 °C	-20 ░C	150 Áin	3.81 Ám	9	Board Lock	Locking Ramp	Tin	Solder	White
