3133-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

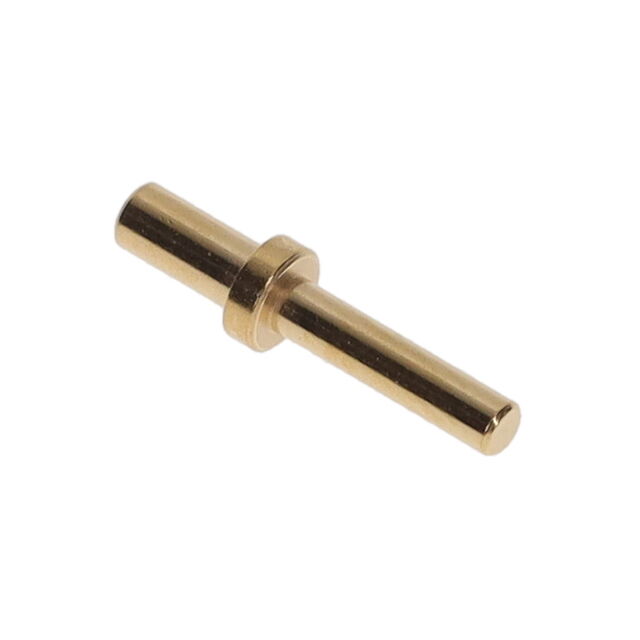

CONN PC PIN CIRC
| Part | Flange Diameter [diameter] | Flange Diameter [diameter] | Terminal Type | Mounting Type | Length - Overall [x] | Length - Overall [x] | Contact Material | Mounting Hole Diameter | Mounting Hole Diameter | Length - Above Flange [x] | Length - Above Flange [x] | Contact Finish Thickness | Contact Finish Thickness | Terminal Style | Contact Finish | Termination | Length - Below Flange [x] | Length - Below Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Insulation | Board Thickness | Board Thickness | Board Thickness [custom] | Board Thickness [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.094 " | 2.39 mm | PC Pin | Through Hole | 9.53 mm | 0.375 in | Brass Alloy | 0.064 " | 1.63 mm | 5.56 mm | 0.219 in | 200 Áin | 5.08 Ám | Single End | Tin | Swage | 0.125 " | 3.18 mm | 1.27 mm | 0.05 in | Non-Insulated | 1.57 mm | 0.062 " | ||
Mill-Max Manufacturing Corp. | 0.094 " | 2.39 mm | PC Pin | Through Hole | 9.53 mm | 0.375 in | Brass Alloy | 0.064 " | 1.63 mm | 5.56 mm | 0.219 in | 200 Áin | 5.08 Ám | Single End | Tin-Lead | Swage | 0.125 " | 3.18 mm | 1.27 mm | 0.05 in | Non-Insulated | 0.094 in | 2.39 mm | ||
Mill-Max Manufacturing Corp. | 0.094 " | 2.39 mm | PC Pin | Through Hole | 9.53 mm | 0.375 in | Brass Alloy | 0.064 " | 1.63 mm | 5.56 mm | 0.219 in | 50 µin | 1.27 µm | Single End | Gold | Swage | 0.125 " | 3.18 mm | 1.27 mm | 0.05 in | Non-Insulated | 0.094 in | 2.39 mm | ||
 Mill-Max Manufacturing Corp. | 0.094 " | 2.39 mm | PC Pin | Through Hole | 9.53 mm | 0.375 in | Brass Alloy | 0.064 " | 1.63 mm | 5.56 mm | 0.219 in | 20 µin | 0.51 µm | Single End | Gold | Swage | 0.125 " | 3.18 mm | 1.27 mm | 0.05 in | Non-Insulated | 0.094 in | 2.39 mm |
